2 PORT CONFIGURATION TAB

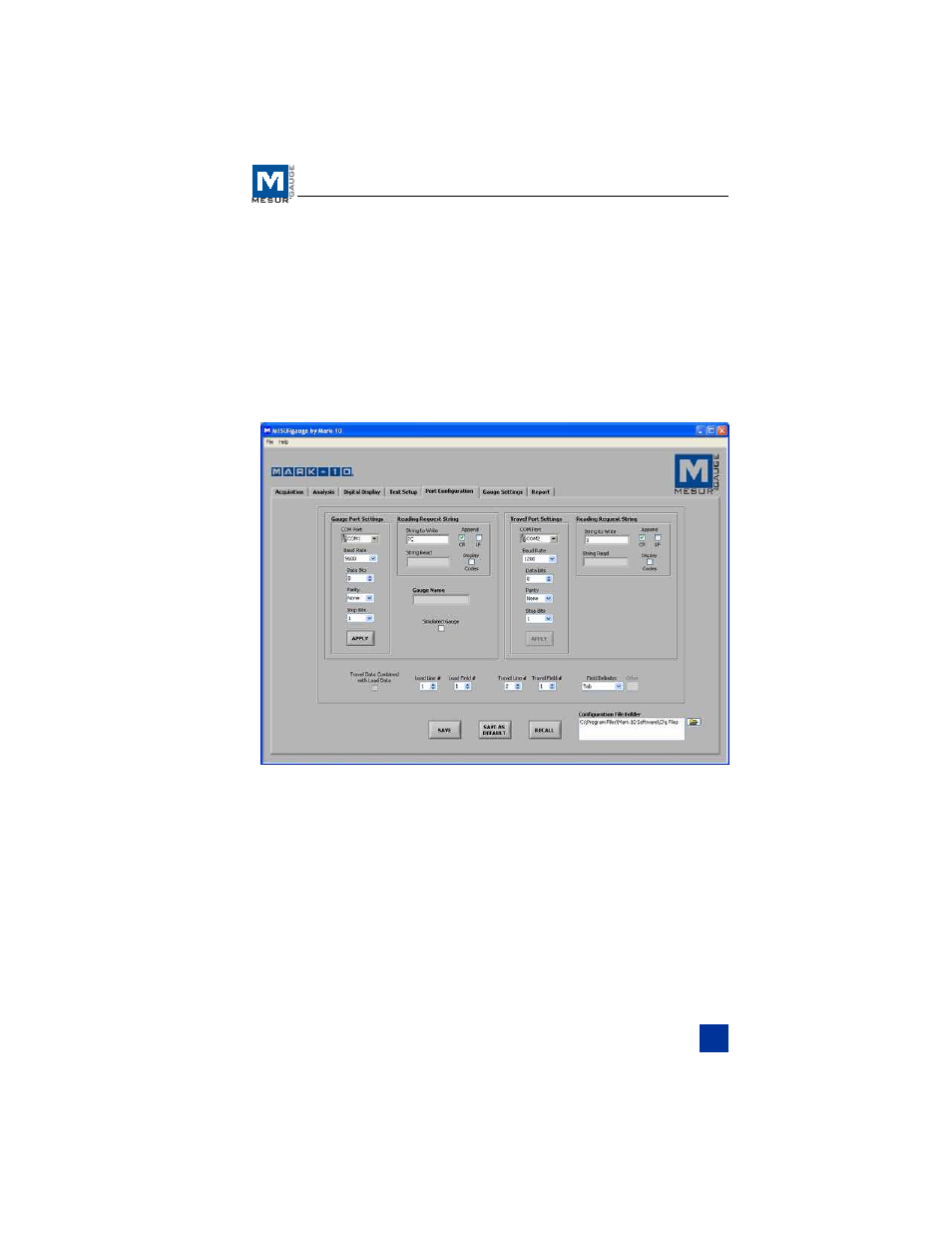

Use this screen to configure the computer’s COM port settings to
which the instruments are connected. The default settings are the
same as the factory default settings for Mark-10 gauges. The
setting most likely to be changed is the particular COM port to
which the instrument is connected. MESURgauge can be config-
ured to accept a single string of data (load), two strings of data
(load and travel) on separate COM ports, or two strings of data on
the same COM port.

2.1 Gauge Port Settings

COM Port

Select the COM port that the gauge is connected to from
the drop-down list. Clicking REFRESH updates the list with
all installed ports.

Baud Rate

Select the baud rate of the serial port. The default setting is
9600 baud.
