4 ACQUISITION TAB

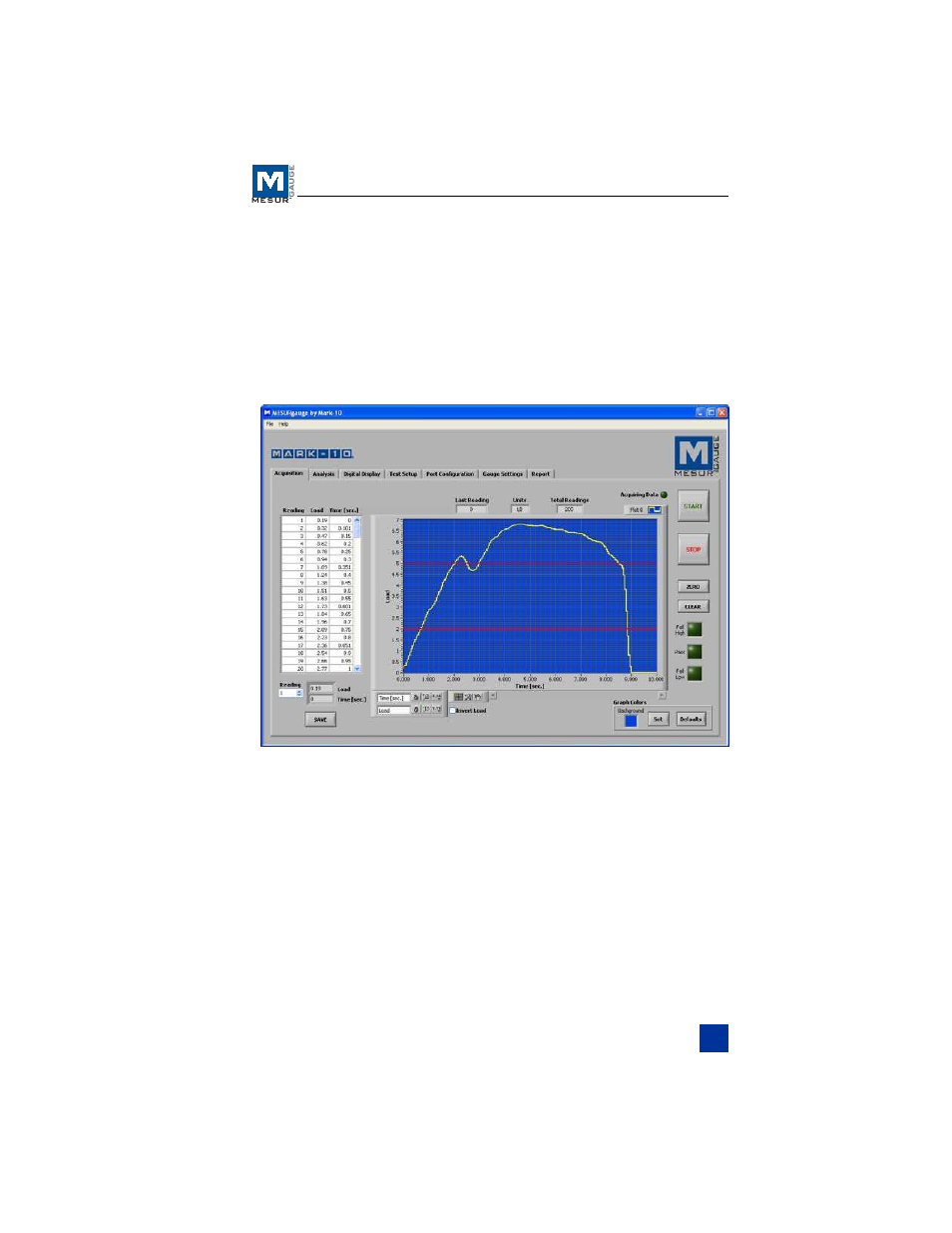

Use this tab to view tabular and graphical data from a gauge as it is
being received. When the START button is clicked, data received
from the connected gauge(s) will be graphed and tabulated as they
are being received. The test ends automatically when the stop con-
dition in the Test Setup tab is met. The test can also be ended at
any time by clicking the STOP button. Specific load and time (or
travel) data points are displayed in the fields below the table.
4.1 START
Starts a test. Readings from the gauge are captured when the start
condition in the Test Setup tab is met. When data is being cap-
tured, the “Acquiring Data” indicator above the START button turns
on (bright green).
4.2 STOP
Stops a test. The test will stop automatically when the selected stop
condition in the Test Setup tab has been met. When the test is
completed, the “Acquiring Data” indicator will turn off (dark green).
