Mounting, Connecting the mlt wesco to the revolution sensor – Checkline MLT User Manual

Page 7

background image

23

english

max. 5 mm

NOTE!
The Symbol

is shortly shown in the display

at each machine revolution, when the magnet

passes the revolution sensor.

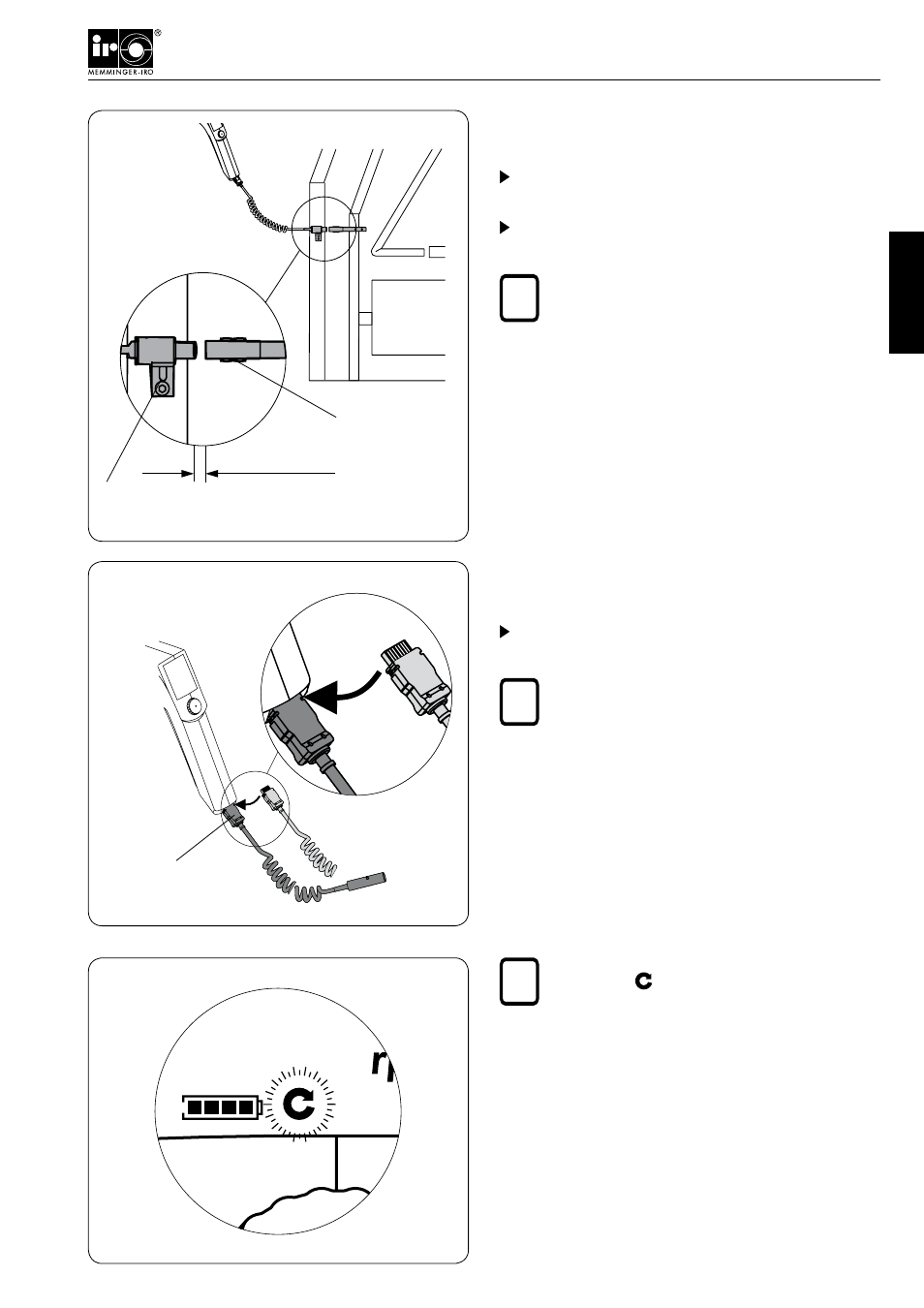

Connecting the MLT WESCO to the
revolution sensor

Plug the revolution sensor (4) into the socket of the

MLT WESCO.

NOTE!
Press the release knob on the bottom when
unplugging the revolution sensor.

4

6

7

Installing the revolution sensor and
magnet holders

Mount the revolution sensor holder (6) to the machine

frame.

Mount the magnet holder (7) to the take-down or the

cylinder drive ring together with the magnet.

NOTE!
The maximum clearance between the magnet
and the revolution sensor must not exceed 5

mm.

Mounting

i

i

i
