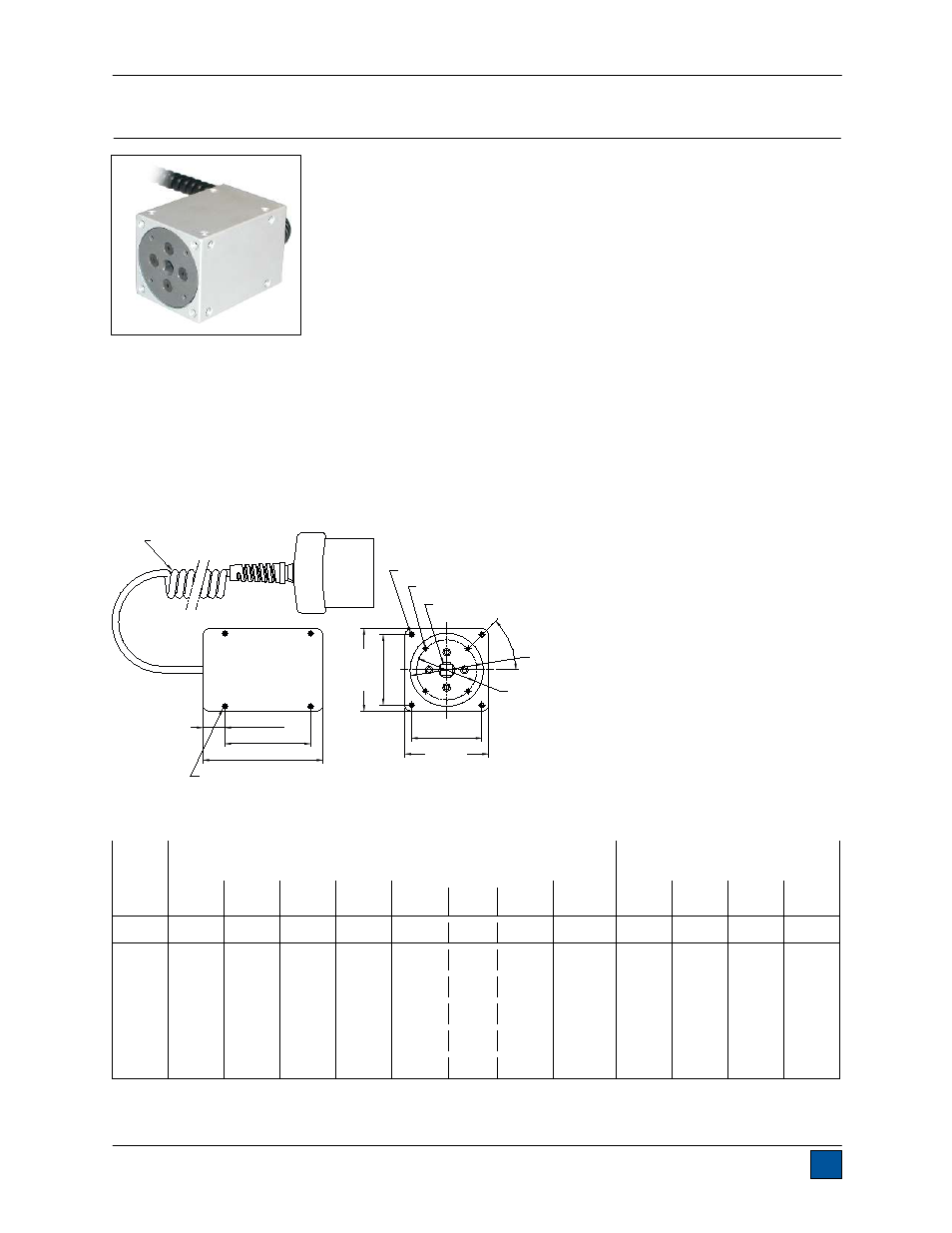

11 SERIES R52 TORQUE SENSORS
11.1 Unpacking and Assembly
Carefully remove the sensor from the box. No assembly is required.
11.2 Overview
Designed for clockwise and counter-clockwise torque testing. The sensor
contains threaded holes on each side to permit mounting to a larger testing
system.
11.3 Specifications
Accuracy:
±0.35% of full scale
Safe overload:
MR52-10Z – MR52-50Z: 300% of full scale
MR52-12 – MR52-100: 150% of full scale
Operating temperature: 40ºF – 100ºF [5ºC – 38ºC]
Operating humidity:
96% max. (non-condensating)
Weight:
1.2 lb [0.5 kg]
11.4 Dimensions
(in[mm])
2.87 [72.9]
2.00 [50.8]
0.57 [14.4]
45°
1/4" FEMALE SQUARE
#6-32 X4
#10-32 X4 REPEATED ON 2 SURFACES
Ш1.50 [38.1]
1.60 [40.6]
1.60 [40.6]
2.00 [50.8]
2.00 [50.8]
Ш1.76 [44.7]
24.0 [610] RETRACTED LENGTH
#10-32 X4
REPEATED ON 4 SURFACES
11.5 Capacity x Resolution
Model
No.
With Model 7i / 5i indicator
With Model 3i indicator
ozFin
lbFin
lbFft
gFcm
kgFmm
Nmm
Ncm
Nm
ozFin
lbFin
kgFmm
Ncm
MR52-10Z
10 x 0.005
-
-
700 x 0.5
7 x 0.005
70 x 0.05
7 x 0.005
-
10 x 0.01
-
7 x 0.005
7 x 0.005
MR52-20Z
20 x 0.01
-
-
1400 x 1
14 x 0.01
140 x 0.1
14 x 0.01
-
20 x 0.02
-
14 x 0.01
14 x 0.01
MR52-50Z
50 x 0.02
-
-
3600 x 2
36 x 0.02
350 x 0.2
35 x 0.02
-
50 x 0.05
-
36 x 0.05
35 x 0.05
MR52-12
-
12 x 0.005
1 x 0.0005
-
140 x 0.1
-
135 x 0.1
1.35 x 0.001
-
12 x 0.01
140 x 0.1
135 x 0.1
MR52-50
-
50 x 0.02
4 x 0.002
-
580 x 0.5
-
570 x 0.5
5.7 x 0.005
-
50 x 0.05
580 x 0.5
570 x 0.5
MR52-100
-
100 x 0.05
8 x 0.005
-
1150 x 0.5
-
1150 x 0.5
11.5 x 0.005
-
100 x 0.1
1150 x 1
1150 x 1
