5 .4 Glass assembly
NOTICE
Risk of glass breakage by excessive strains.
• Mount all glassware parts without strains
• Check glassware for proper fixing regularly and readjust fixing points if necessary
• Do not use defective glassware
• Use the protective shield (optional)

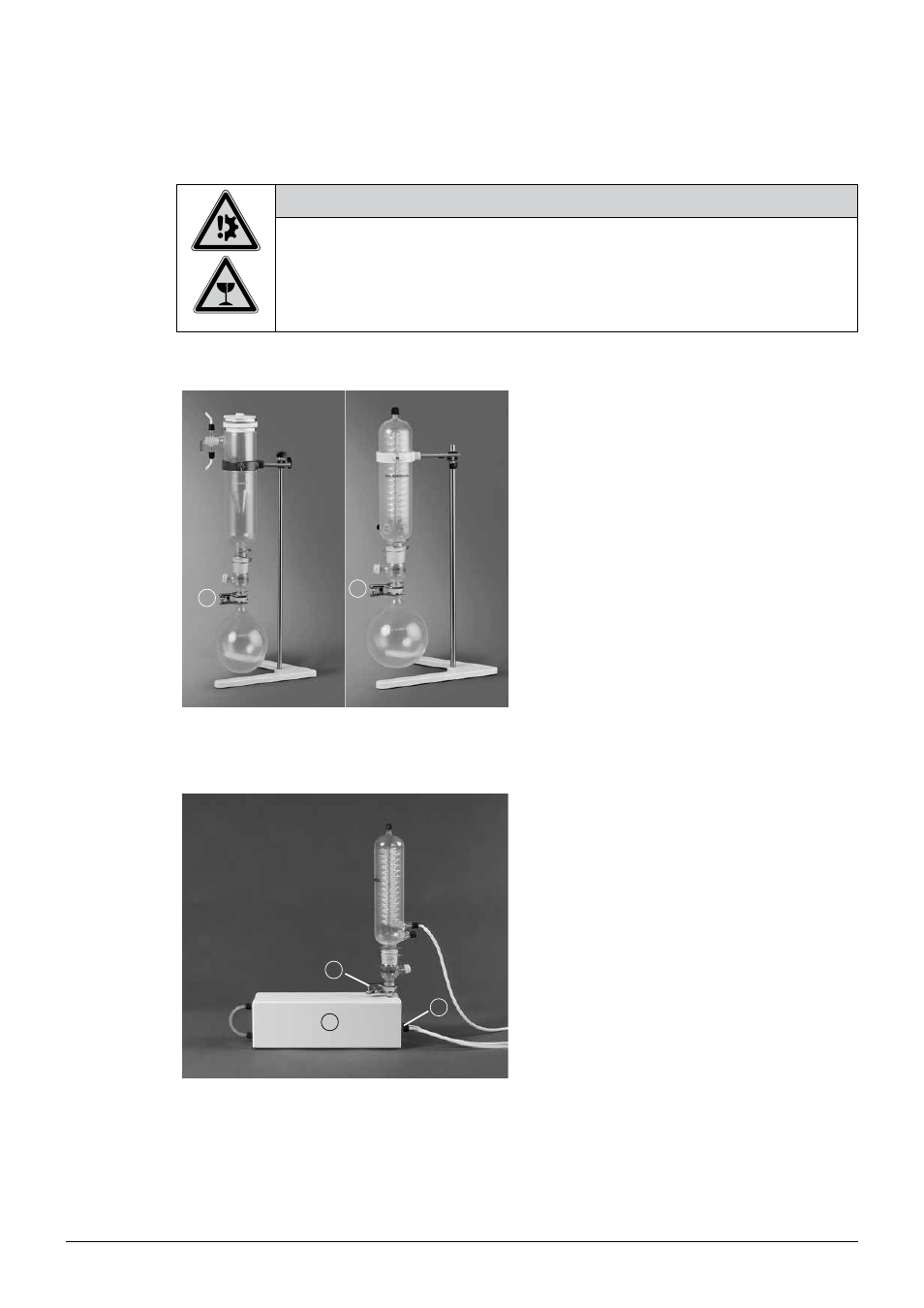

5 .4 .1 Type S and type C condenser
1
1
Install the condenser assemblies on the pro-
vided support or on a stable laboratory rod
ensuring that the stand base is oriented in the
direction of the condenser.
Secure the receiving flask with the clip a pro-
vided for this purpose.
Fig. 5.24: Installation of the condenser assembly on the support
5 .4 .2 Condenser assembly with the refrigerated receiver (optional)
2
3
1
The refrigerated receiver a can be used as an
alternative to the receiving flask and is secured
using the clip b. The internal cooling loop is
connected to a cooling source c (tap water or
recirculating chiller).
Fig. 5.25: Type S condenser with the refrigerated receiver
