5 Putting into operation
40 Multivapor™ Operation Manual, Version E
5 .3 .2 Assembling the Woulff bottle (optional)
ᕡ
ᕢ
ᕤ
ᕥ
ᕦ
ᕣ
ᕧ
ᕨ

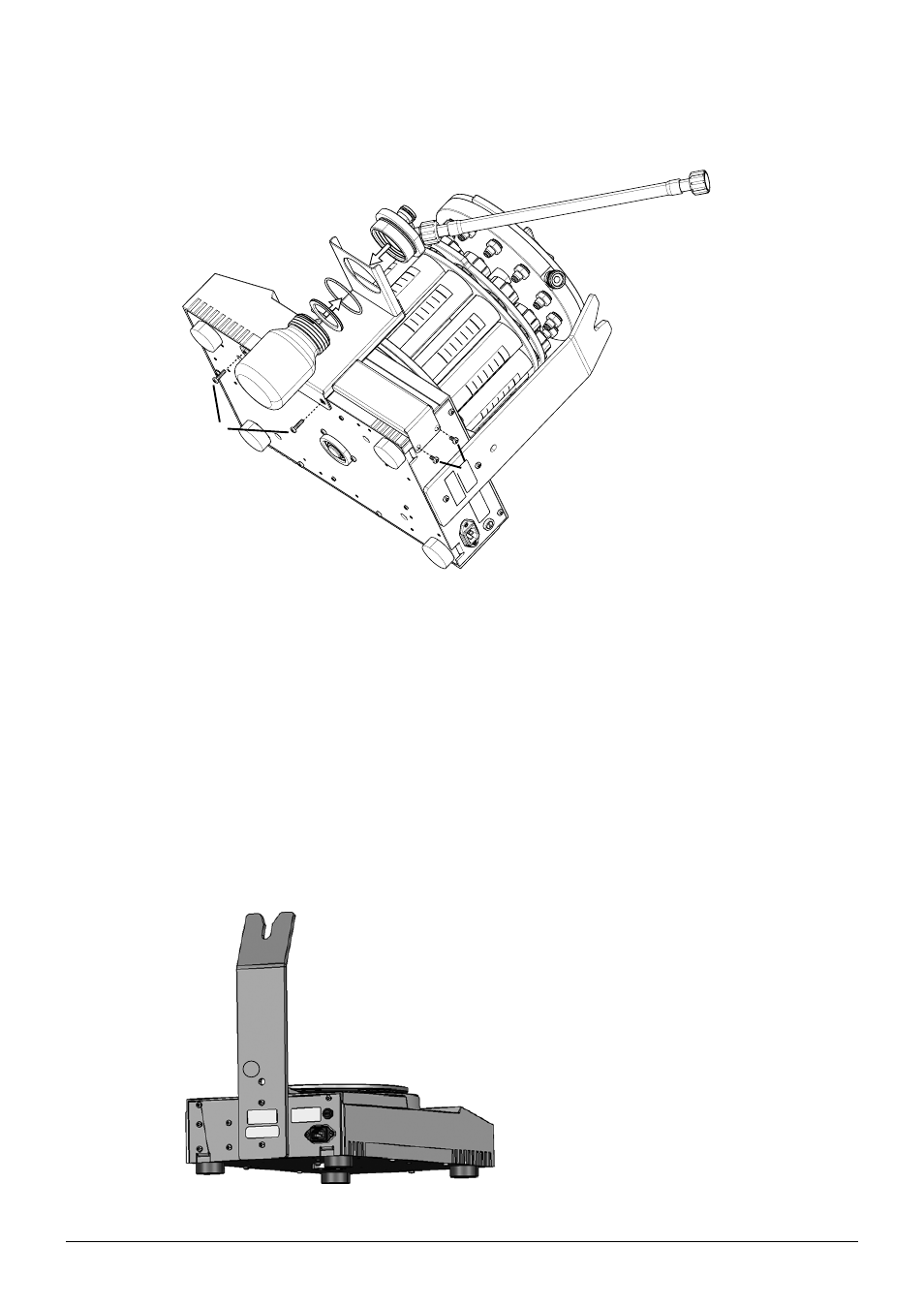

Fig. 5.22: Assembling the Woulff bottle
1 Fix the Woulff bottle holder on the bottom of the instrument by replacing the existing screws with the provided
longer screws.
2 Fix the Woulff bottle holder on the rear side of the instrument by replacing the existing screws with the provi-
ded longer screws.
 Add the cover of the Woulff bottle from above to the holder.
 Fix the cover from below on the holder with the provided O-ring.
 Place the gasket from below into the cover.
 Screw the bottle into the holder.
 Connect the delivered tube on the left angled connector of the cover.
 Connect the tube from the condenser to the Woulff bottle on the right straight connector (not connected in the
figure).
5 .3 .3 Anti-seismic tie-down
1
a Hole to fix the instrument in earthquake-sus-
ceptible regions.
Fig. 5.23: Anti-seismic tie-down
