4 Description of function
35 Multivapor™ Operation Manual, Version E
4 .10 Protective shield (optional)
The protective shield protects the user from
splashes of hot medium and debris from the
sample tubes in the case of implosion or explo-
sion.

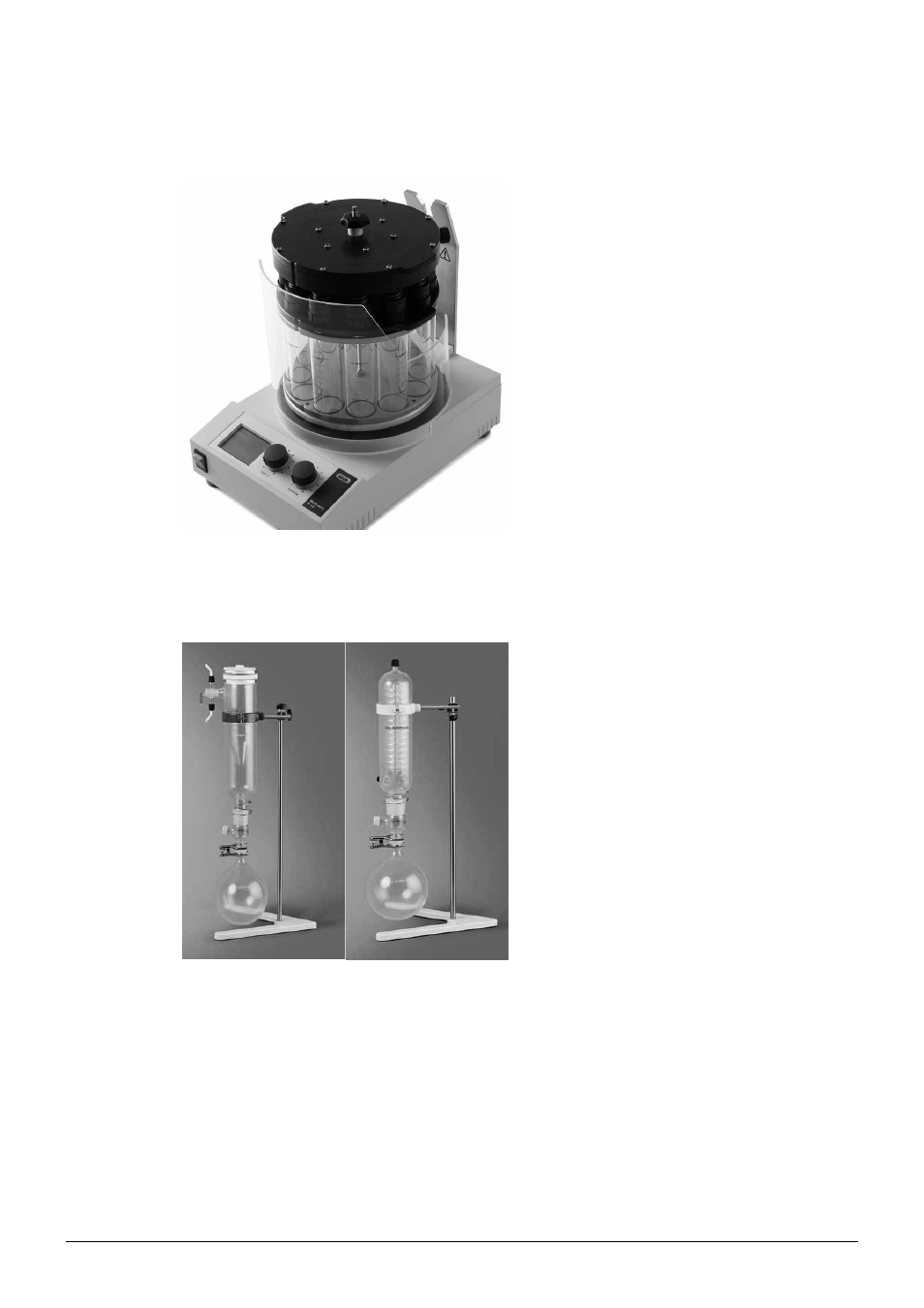

Fig. 4.15: Protective shield
4 .11 Condensation (optional)
There are two types of condensers available.
Type C condensers (left) are used with dry-
ice/acetone and type S condensers (right)
are connected to tap water or a recirculating
chiller. Both are equipped with a P+G coating
to provide maximum safety. The receiving flask
is available in 1 or 2 l capacity. Alternatively, an
insulated refrigerated receiver with an internal
cooling coil can be used in combination with
a type S condenser. This allows evaporation
of solvent mixtures with different boiling points
without interruption between fractions.
Fig. 4.16: Type C (left) and type S (right) condenser assemblies
