4 Description of function
32 Multivapor™ Operation Manual, Version E
4 .3 Crystal rack
1
The crystal rack a is fixed onto the heating
plate and operates as a heat transition between
the heating plate and the sample tubes. It com-
prises 6 or 12 glass cylinders accommodated
circularly to provide full supervision. A level
indication designates the optimal filling level for
water, which serves as the heating medium.
A further advantage of the crystal rack com-
pared to the widely used metal racks is the
compatibility with all kind of sample tubes differ-
ing in shape, diameter and length.

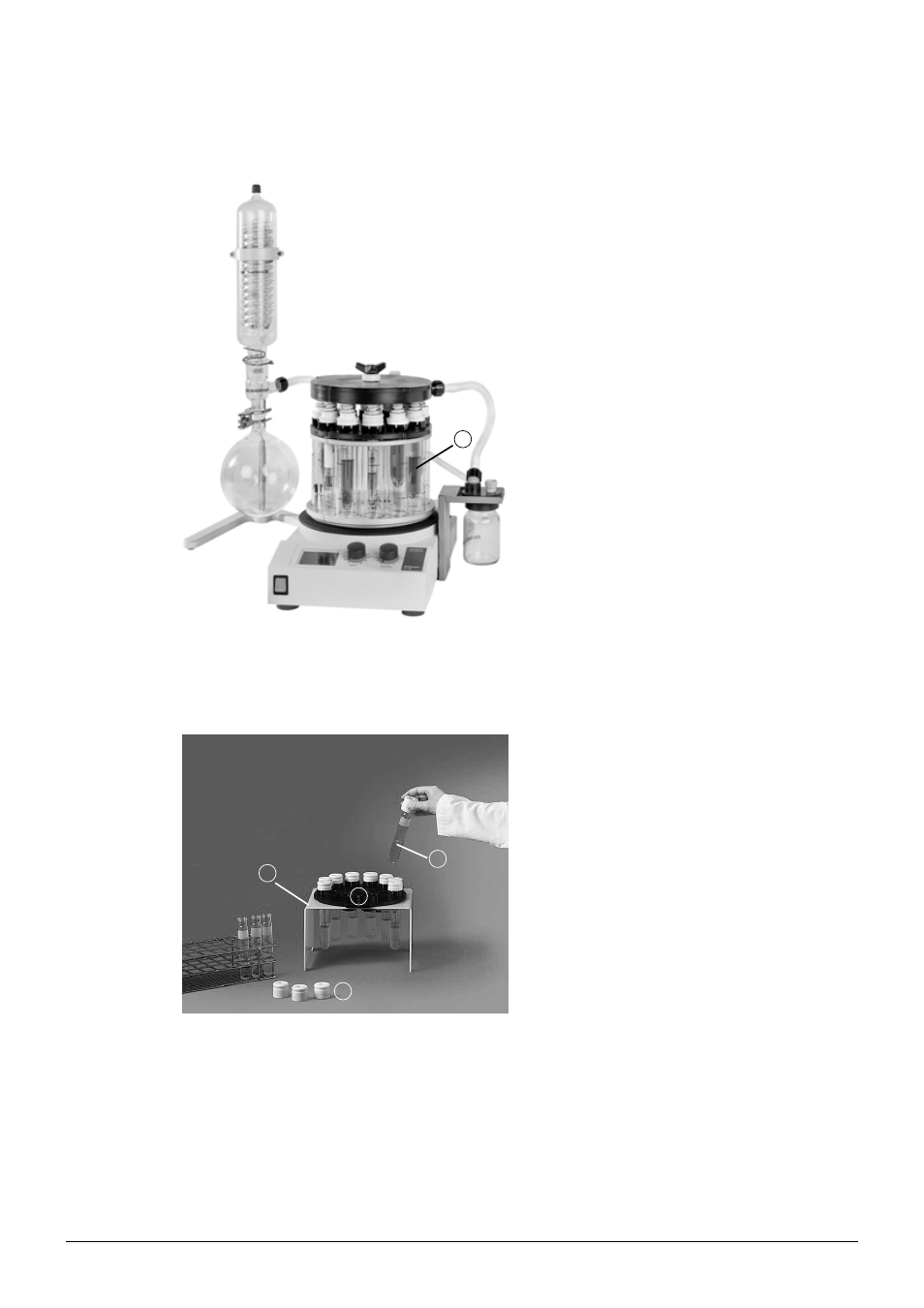

Fig. 4.8: Multivapor with the crystal rack
4 .4 Sample preparation rack
1
2
3
4
The sample preparation rack a serves as sup-
port for the transfer rack b including 6 or 12
sample tubes c.
The tubes are equipped with specific adapters
d which seal the test tubes effectively with the
vacuum cover.
Fig. 4.9: Sample preparation rack with the transfer plate and test tubes with the corresponding adapters
