4 Description of function
30 Multivapor™ Operation Manual, Version E
condenser cannot cope with the amount of vapor produced. During operation of the Multivapor, the
Rotavapor side has to be closed using an empty evaporation flask e.
4 .1 .3 Controls of the Multivapor (stand-alone)
1
3 4 2
5
a Main switch
b Temperature display
c Knob for temperature regulation
d Knob for rotational speed
e Holder for the vacuum cover

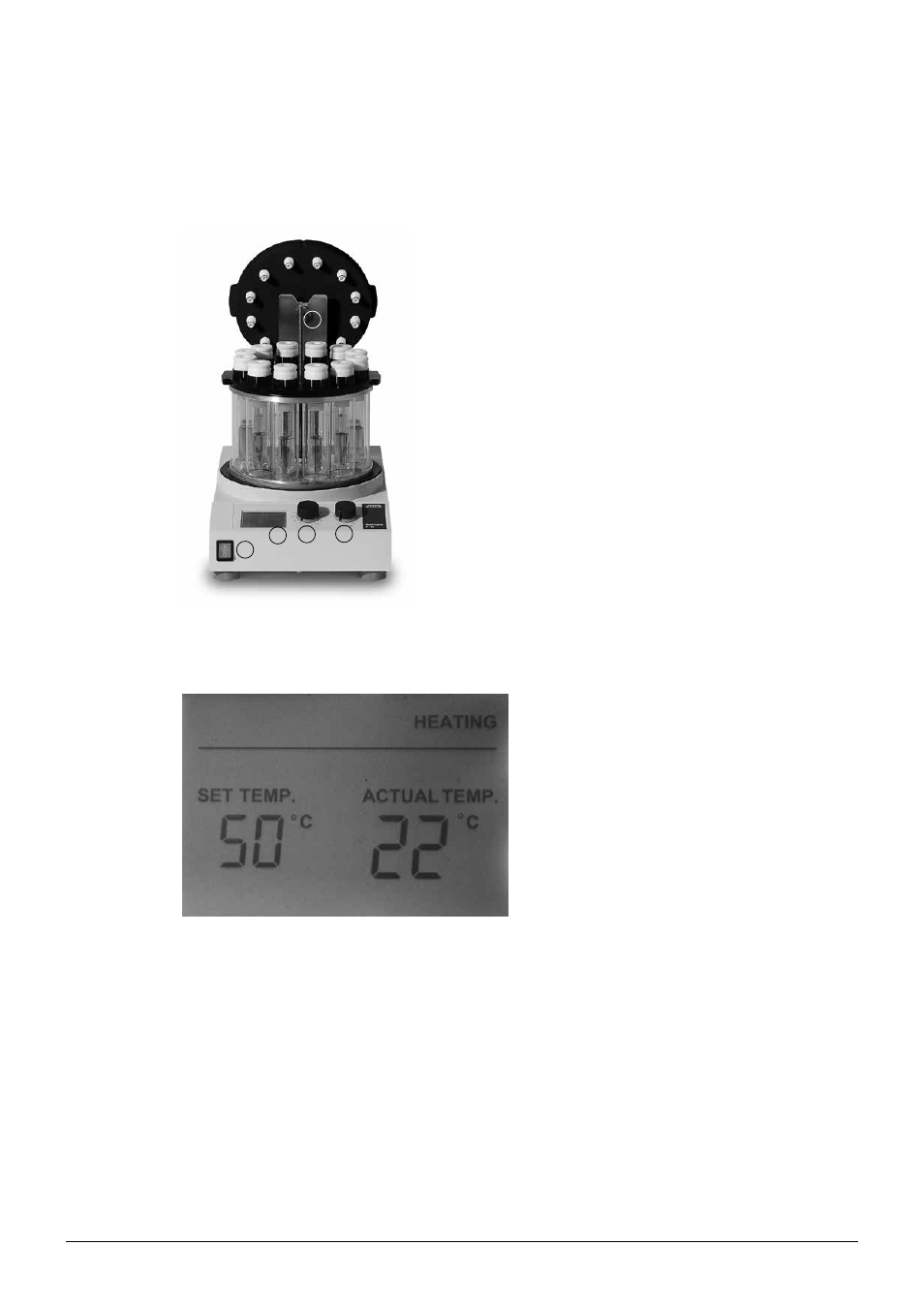

Fig. 4.4: Overview of the Multivapor controls
4 .1 .4 Display of the Multivapor
The display shows both the actual and the set
temperatures. If the actual temperature is below
the set temperature, the indication “heating”
appears.
Fig. 4.5: Display of the Multivapor
