Using Multiple System Bridges
Expansion of a system can include multiple AN‑16SBR System Bridges. This
allows audio to be fed to different locations as needed. Using multiple System
Bridges follows the same connection rules as outlined previously. (Port A on
one System Bridge always connects data to Port A on another System Bridge,
etc.)
System Bridges can also be used to combine A‑Net streams from multiple
networks in an installation, allowing, for example, ports A and B from
Network #1 to be sent along with streams B and C from Network #2 to a third
area, creating Network #3.
AN-16/o
AN-16/o
AN-16/o
AN-16/o
A-Net In
A
B
C
D
AN-16/i
AN-16/i
AN-16/i
AN-16/i AN-16/o
AN-16/o
AN-16/o
AN-16/o
A-Net Out A-Net Out A-Net In
A
B
C
D
A
B
C
D
Bridge
AN-16SB
A
B
C
D
Bridge
System Bridge System Bridge
System Bridge

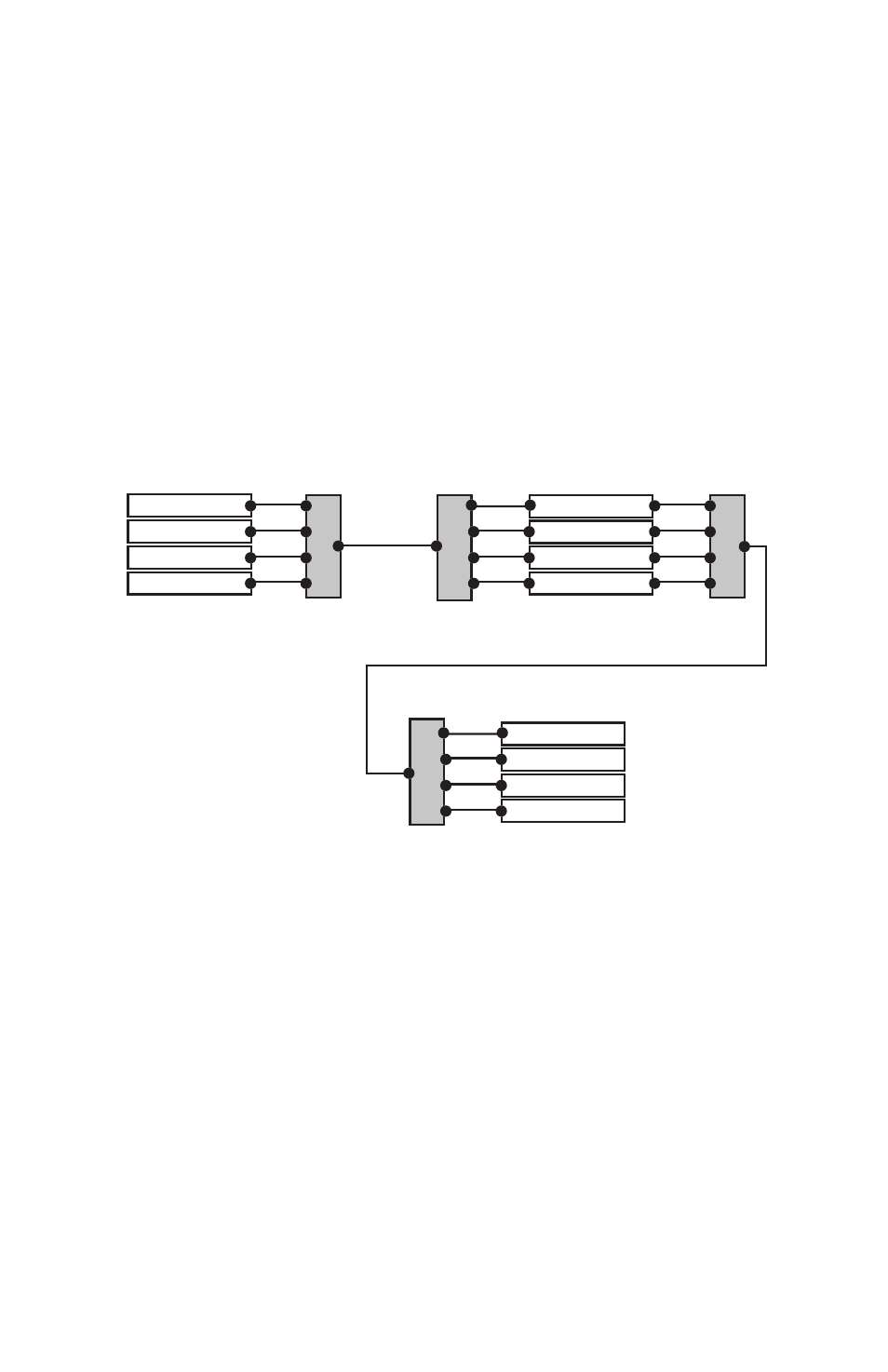

A second set of System Bridges move 64 channels of audio over one Cat-5e
cable to another destination.
