the console’s insert Return.
Audio passing through the Aviom system is heard with the effect processing.
Console TRS
Channel Insert
Input Input Thru

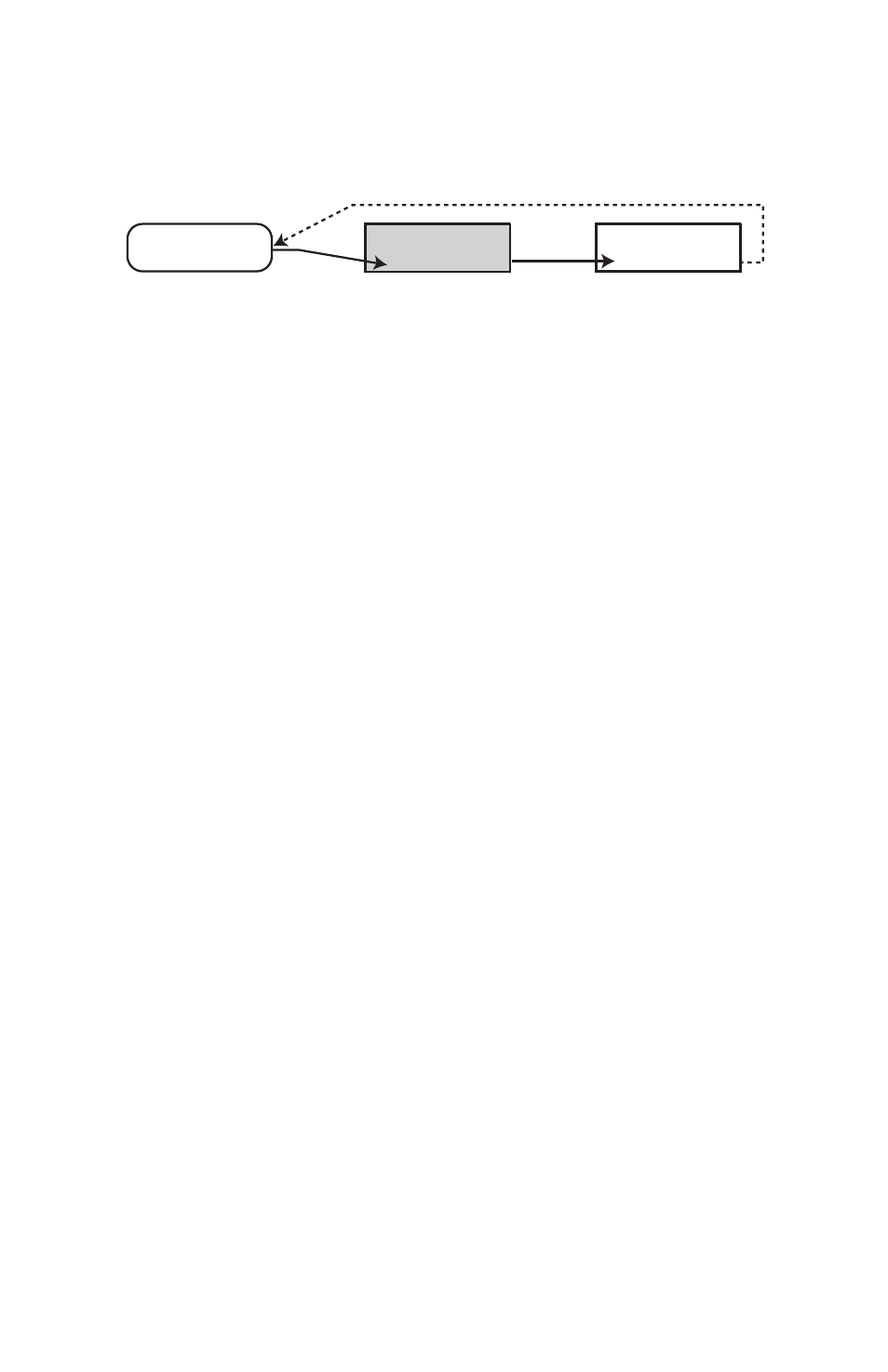

Audio flows from the console insert point into the effect device,
then into the AN-16/i , and returns to the console
Output
Effect Device AN-16/i
Audio flows from the console insert point into the effect device, then into the
AN-16/i, and returns to the console.
Line-level Devices
In addition to connecting a traditional mixing console, there are numerous
other audio sources that can be used with the AN‑Series audio network
products and the Pro16 Monitor Mixing System. There is no requirement that
your audio sources be connected to a mixing console first.
Using some creative patching, you’ll find numerous uses for the system. Here
are a few examples:
Connect the stereo outputs of multiple CD players to •
inputs on the AN‑16/i Input Module to distribute a variety
of music programs to multiple rooms.
Patch a drum machine output or line output from a
•
computer sound card into the AN‑16/i to provide a click
track for musicians.
Connect multiple keyboards directly to the AN‑16/i. Then
•
patch the Thru jacks on the AN‑16/i to the main mixer
inputs.
Connect outputs from stereo guitar processors or amp
•
simulators.
Virtual drums can be connected directly into the AN‑16/i
•
Input Module.
