36 AN-16/
i
i
Nput
M
odule
u
ser
G
uide

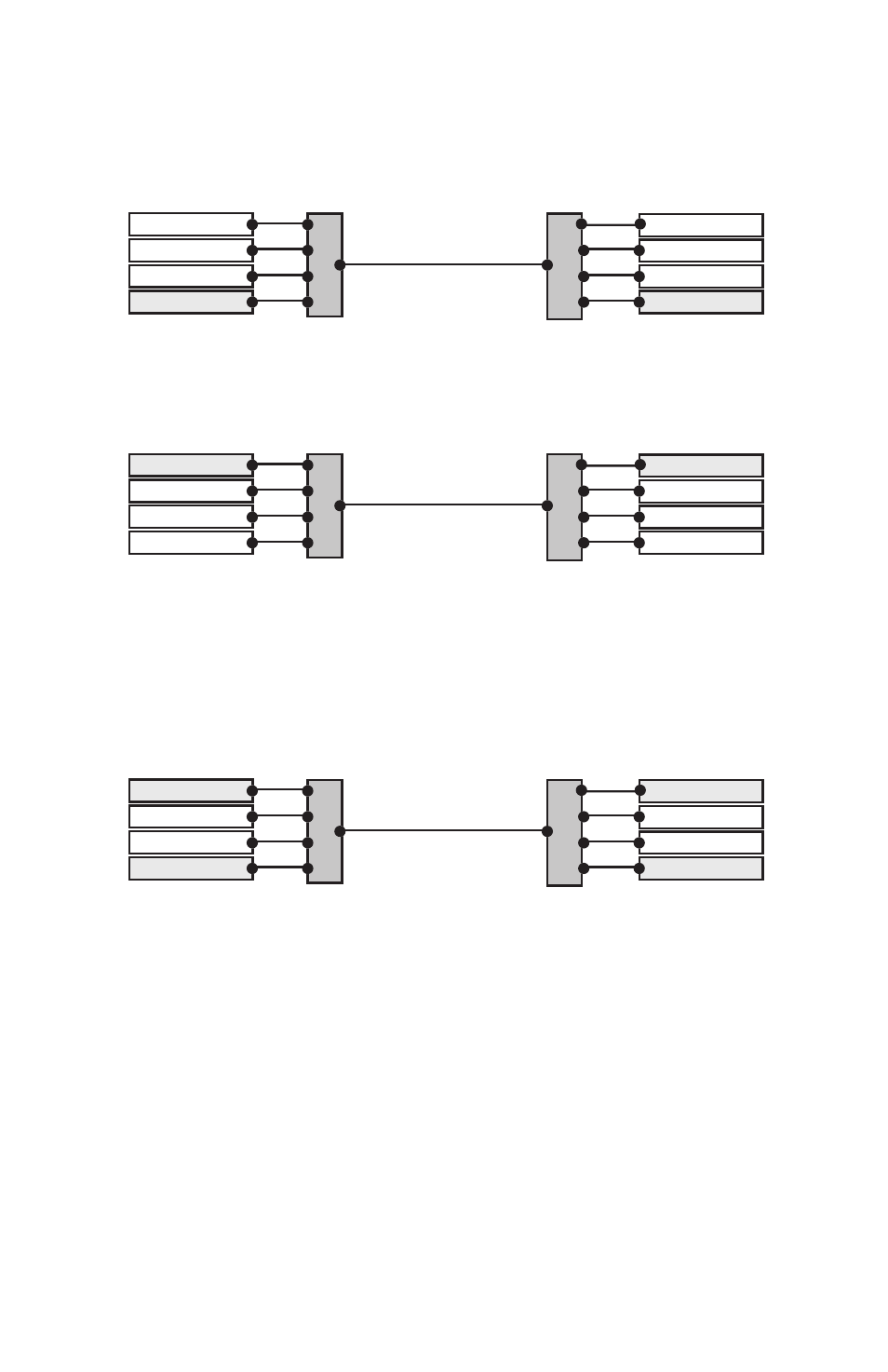

together, connected to either ports A, B, and C on the System Bridge or to
ports B, C, and D, See the following diagrams.
AN-16/i
AN-16/i
AN-16/i
AN-16/o AN-16/o
AN-16/o
AN-16/o
AN-16/i
A-Net Out A-Net In
A
B
C
D
A
B
C
D
Bridge
System Bridge System Bridge
Ports A, B, and C use the same type of module.
AN-16/o
AN-16/i
AN-16/i
AN-16/i AN-16/i
AN-16/o
AN-16/o
AN-16/o
A-Net Out A-Net In
A
B
C
D
A
B
C
D
Bridge
System Bridge System Bridge
Ports B, C, and D use the same type of module.
For a 32 x 32 configuration, place two similar modules together, connected to
either ports B, and C on the AN‑16SB. The modules connected to ports A and
D are also similar by doing this configuration., See the following diagram.
AN-16/o
AN-16/i
AN-16/i
AN-16/o AN-16/i
AN-16/o
AN-16/o
AN-16/i
A-Net Out A-Net In
A
B
C
D
A
B
C
D
Bridge
System Bridge System Bridge
Ports A, and D use the same type of module; ports B and C contain the same type
of module.
Note that the total A‑Net cable length between devices is limited to 500
feet.
P N
ote
The AN‑16/i Input Modules shown in the preceding diagrams can
be replaced with any compatible Pro16 input module or console
interface card.
