24 AN-16/
i
i
Nput
M
odule
u
ser
G
uide
Consult your mixer’s documentation for additional information.

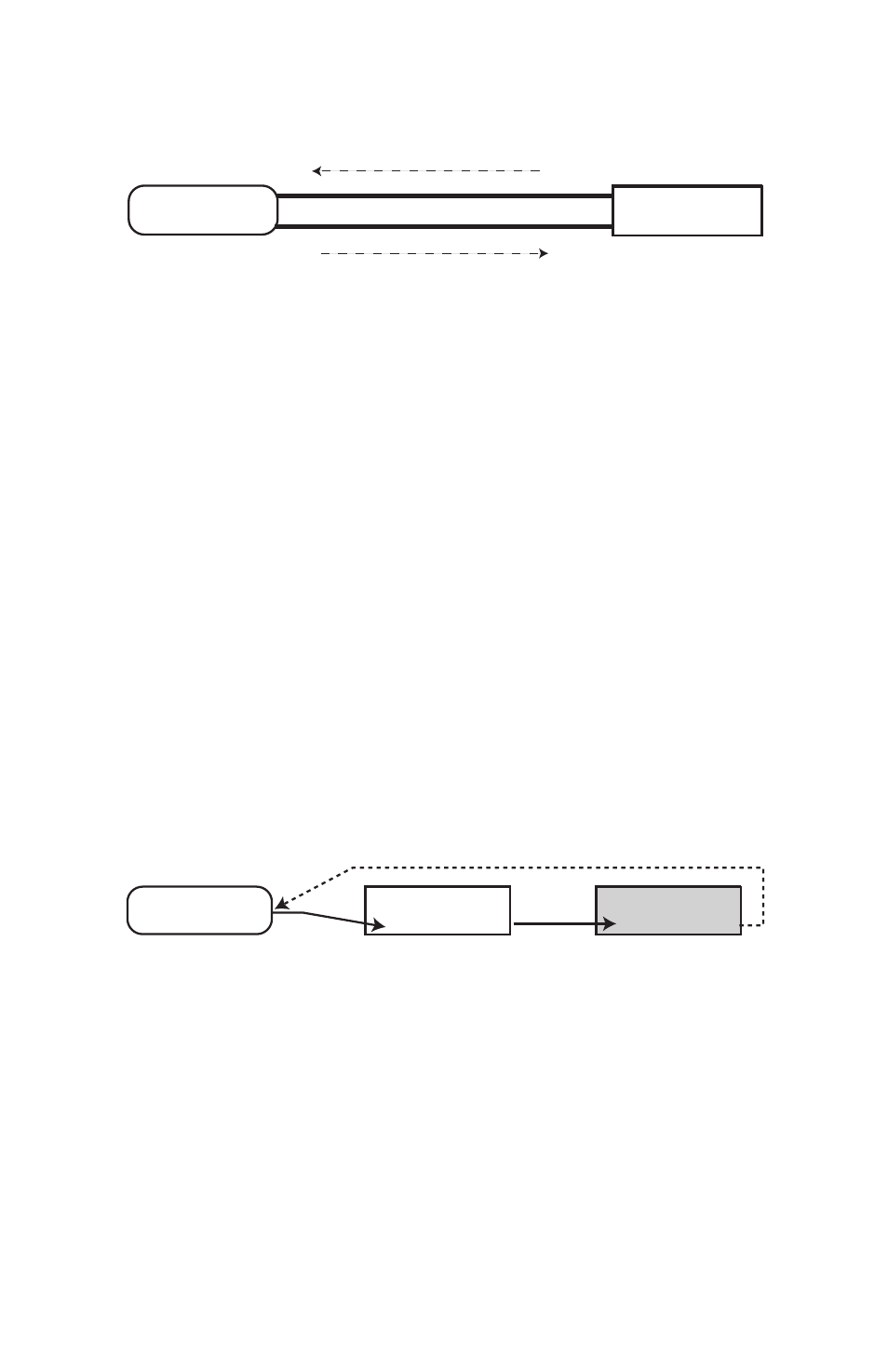

Console TRS
Channel Insert
AN-16/i
Input Send
Audio flows from the console Insert Send point into the AN-16/i
and then back into the console via the Insert Return
Thru Return
Audio flows from the console insert point into the AN-16/i and then back into
the console via the Insert Return jack.
Adding Effects
Console insert points offer a convenient way to patch audio into the AN‑16/i
Input Module. But, there are times when the insert send/return points will
be needed for use with an effect processor such as a compressor. There are
some optional ways of both getting audio into the AN‑16/i and patching in
effects devices.
A-Net Audio Without the Effect
Connect the console insert Send to an input on the •
AN‑16/i.
Connect the AN‑16/i Thru jack from the same channel as
•
above to the input of the effect processor.
Connect the output of the effect processor to the console’s
•
insert Return jack.
The Send/Return loop on the console is complete. The audio sent thru the
Aviom system is not processed by the effect device.
Console TRS
Channel Insert
Input Input Thru
Audio flows from the console insert point into the AN-16/i,
then into the effect device, and returns to the console
Output
AN-16/i Effect Device
Audio flows from the console insert point into the AN-16/i, then into the
effect device, and returns to the console.
A-Net Audio With the Effect
Connect the console insert Send to the input on the effect •
device.
Connect the output of the effect processor to an input on
•
the AN‑16/i.
Connect the Thru jack from the same channel as above to
•
