Adding Audio Outputs - Splits
As mentioned previously, the A‑Net Out jacks on the AN‑16/o Output
Modules remain available even when creating a bidirectional audio network.
This allows additional output modules to be added as needed to suit a variety
of audio situations. Any Pro16 A‑Net compatible product can be added to an
A‑Net Out port. This flexible routing scheme allows you to send audio to a
variety of different locations, and to include Aviom’s Pro16 Monitor Mixing
System for performers.
AN-16/o AN-16/i
16 Channels In 16 Channels Out
AN-16/o AN-16/i
16 Channels Out 16 Channels In
16 Channels Out
16 Channels Out
16 Channels Out
A-Net
A-Net Expansion
AN-16/o
AN-16/o
AN-16/o
AN-16/o
AN-16/o
AN-16/o
16 Channels Out
16 Channels Out
16 Channels Out
Audio channels 17-32
Audio channels 1-16

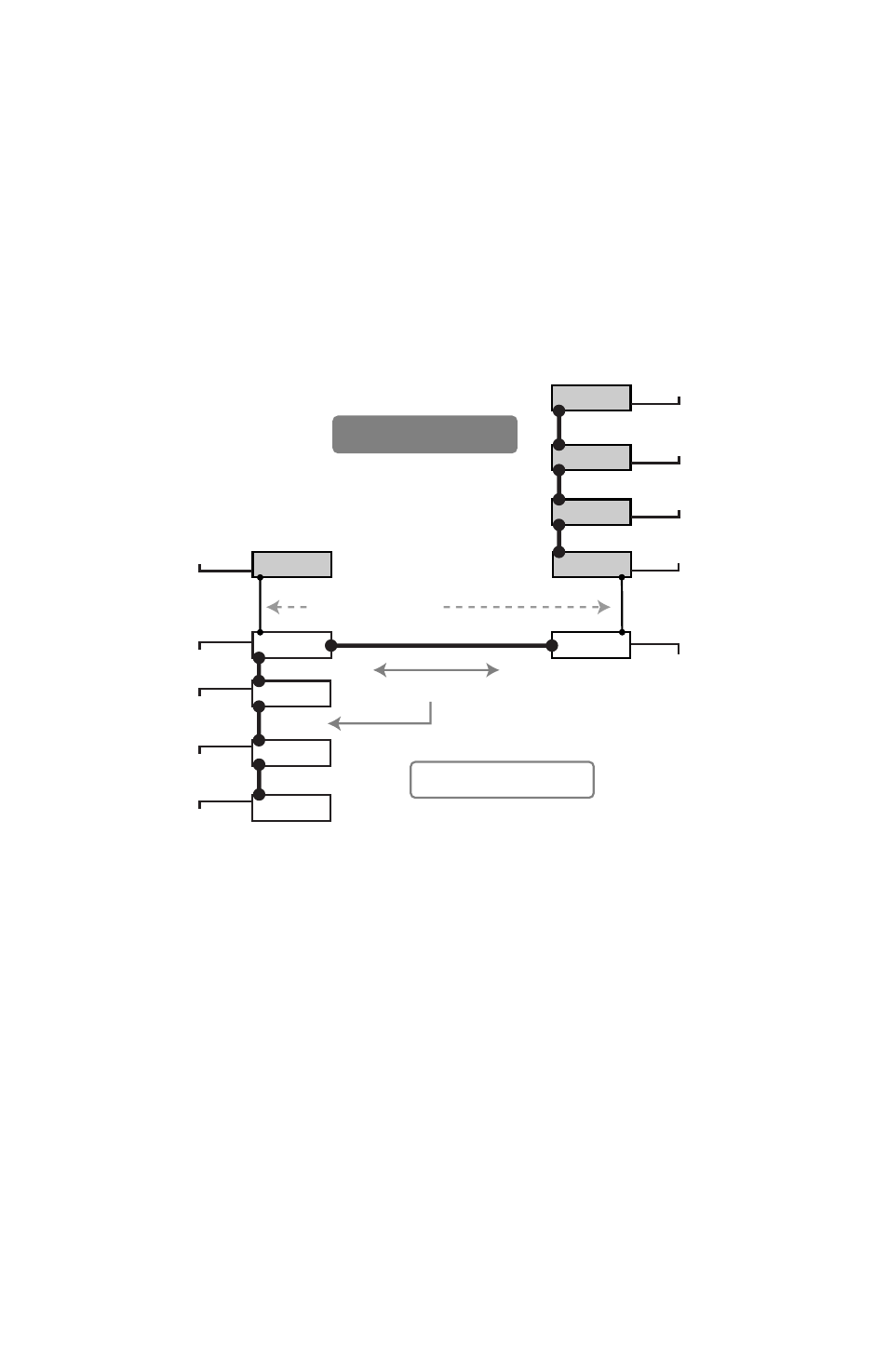

An expanded Pro16 system with multiple digital splits
In this example, a 16 x 16 network has been expanded to include three
additional AN‑16/o Output Modules on each side of the network. Each
AN‑16/o is connected via A‑Net using a Cat‑5e cable. Remember that the
cable lengths between each A‑Net device can be up to 500 feet (150 meters)
long.
