32 Channels Send System

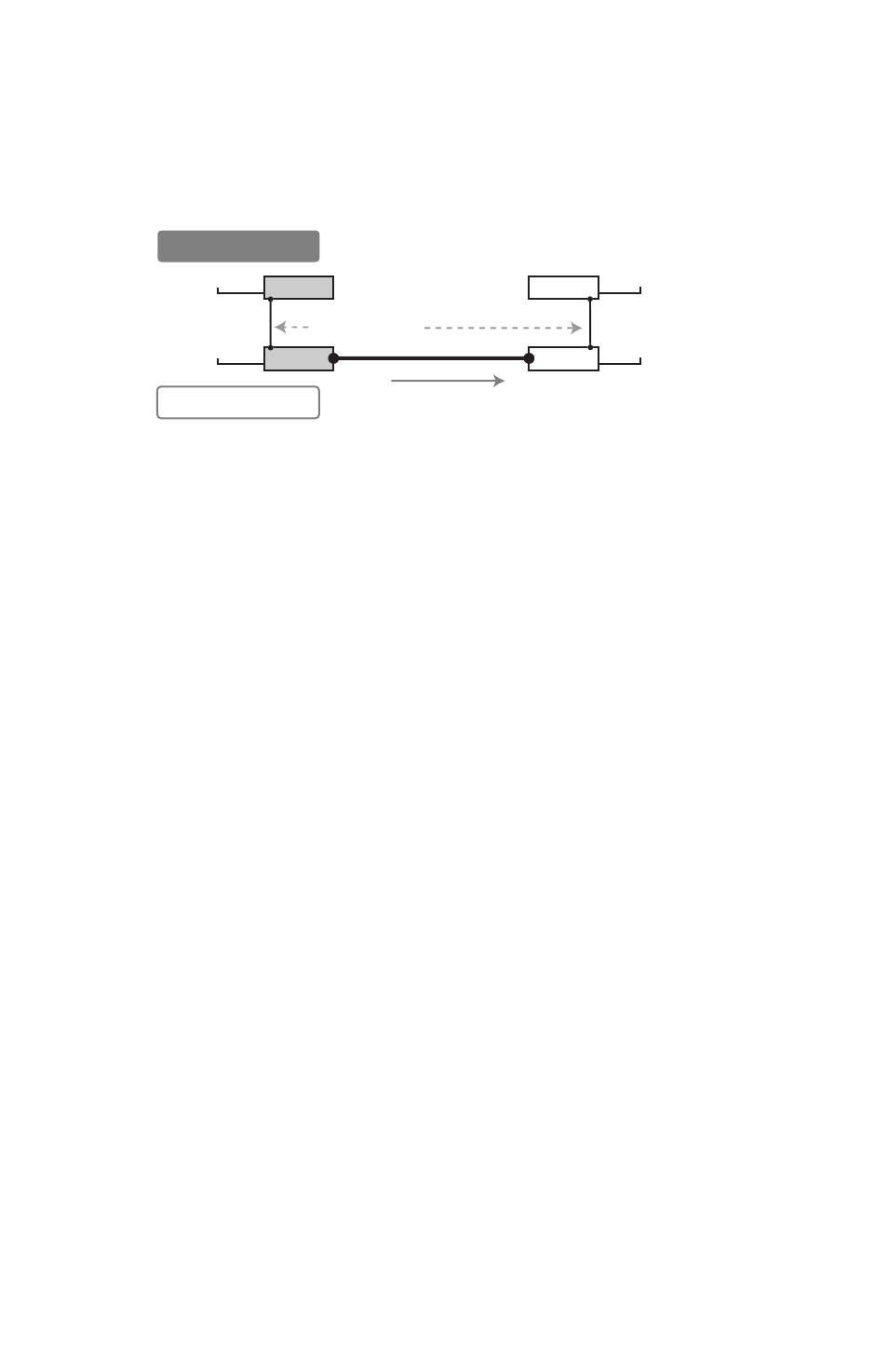

The 32 x 0 configuration has all audio inputs on one side of the audio network
and all audio outputs on the other side.
AN-16/o AN-16/i
16 Channels In 16 Channels Out
AN-16/o AN-16/i
16 Channels In 16 Channels Out
A-Net
A-Net Expansion
Audio channels 17-32
Audio channels 1-16
32 audio signals are carried over one Cat-5 cable.
With this configuration, two AN‑16/i Input Modules receive up to thirty‑two
analog audio signals as inputs. One AN‑16/i contains channels 1‑16, while the
other has channels 17‑32.
To configure a 32 x 0 system:
Connect the first sixteen line‑level audio sources to inputs 1.
1‑16 on the first AN‑16/i Input Module.
Connect the second group of sixteen audio sources to
2.
inputs 1‑16 on the second AN‑16/i.
Connect a Cat‑5e cable from the A‑Net Out jack on the first
3.
AN‑16/i to the A‑Net Expansion jack on the second AN‑16/i.
Connect a cable from the A‑Net Out jack on the second
4.
AN‑16/i and run it to the destination where the AN‑16/o
Output Modules are located, and plug it into the A‑Net In
jack on the first AN‑16/o Output Module.
Connect a Cat‑5e cable from the A‑Net Expansion jack on
5.
the first AN‑16/o to the A‑Net In on the second AN‑16/o.
Patch the audio outputs from the two AN‑16/o Output
6.
Modules into the desired destinations.
