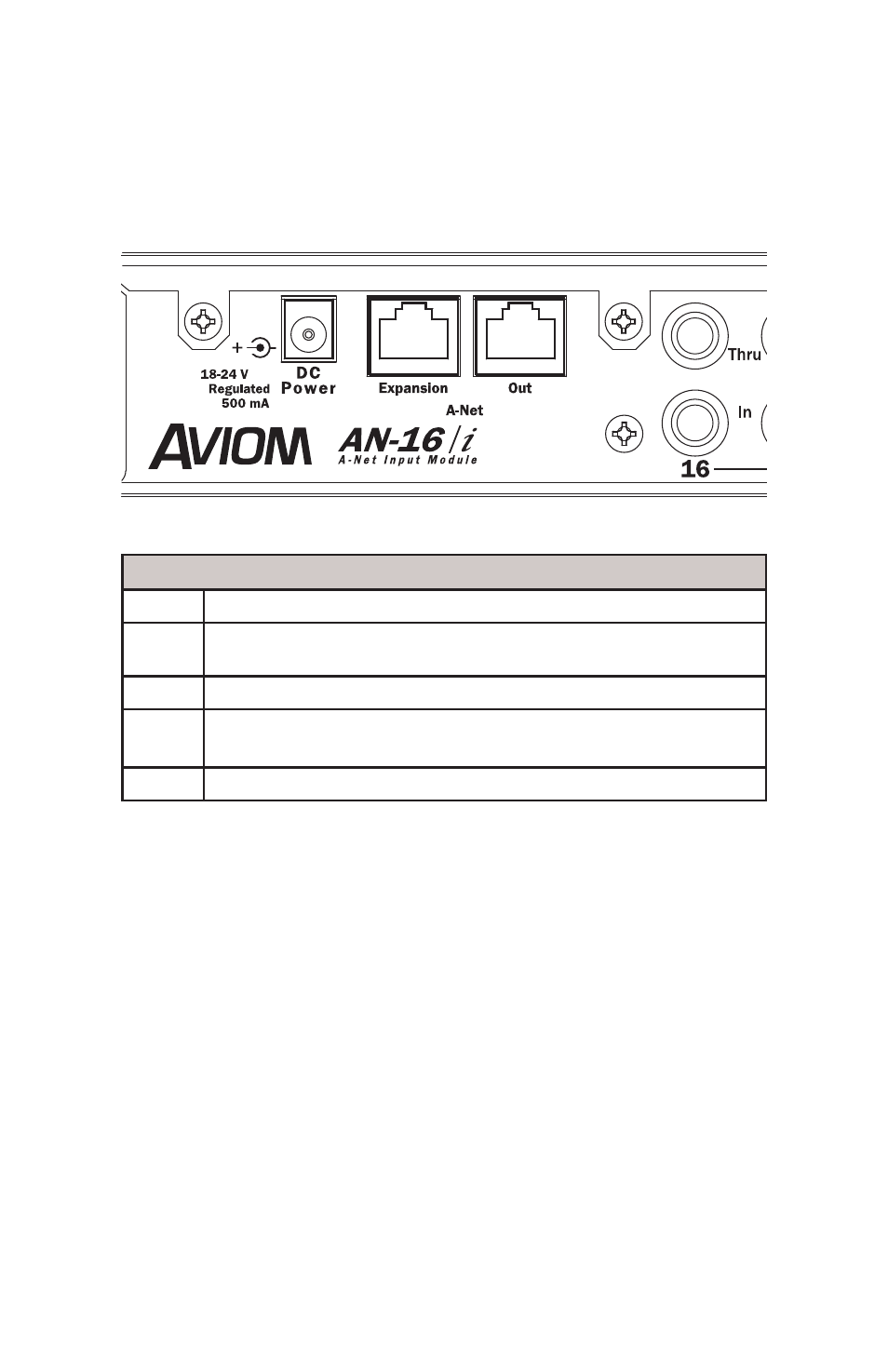

Rear Panel
F
u n c t i o n
1 DC Power Jack ‑ connect the DC power supply here
2 A‑Net Expansion Jack ‑ used when creating a 32‑channel system
with two AN‑16/i and two AN‑16/o units
3 A‑Net Out Jack ‑ connects to any A‑Net compatible device
4 Analog Audio Input ‑ TRS balanced 1/4” jack accepts any line
level audio signal )
5 Thru Jack ‑ a copy of the balanced analog audio from the In jack
    
