39 AN-16/ i v .2 i Nput M odule u ser G uide
System Bridge
The AN-16SBR System Bridge is used to simplify the Cat-5 wiring when configuring Pro16 digital snakes.
This passive device takes four Pro16 or Pro16e A-Net streams and enables all four streams to be transported
over a single Cat-5 cable. In a typical digital snake this will be the longest cable, so the AN-16SBR offers
substantial savings in the amount of cable used as well as the time and labor to connect it.
A B C D
PRO16
PORTS
AN-16
SBR
S y s t e m B r i d g e
BRIDGE A-NET

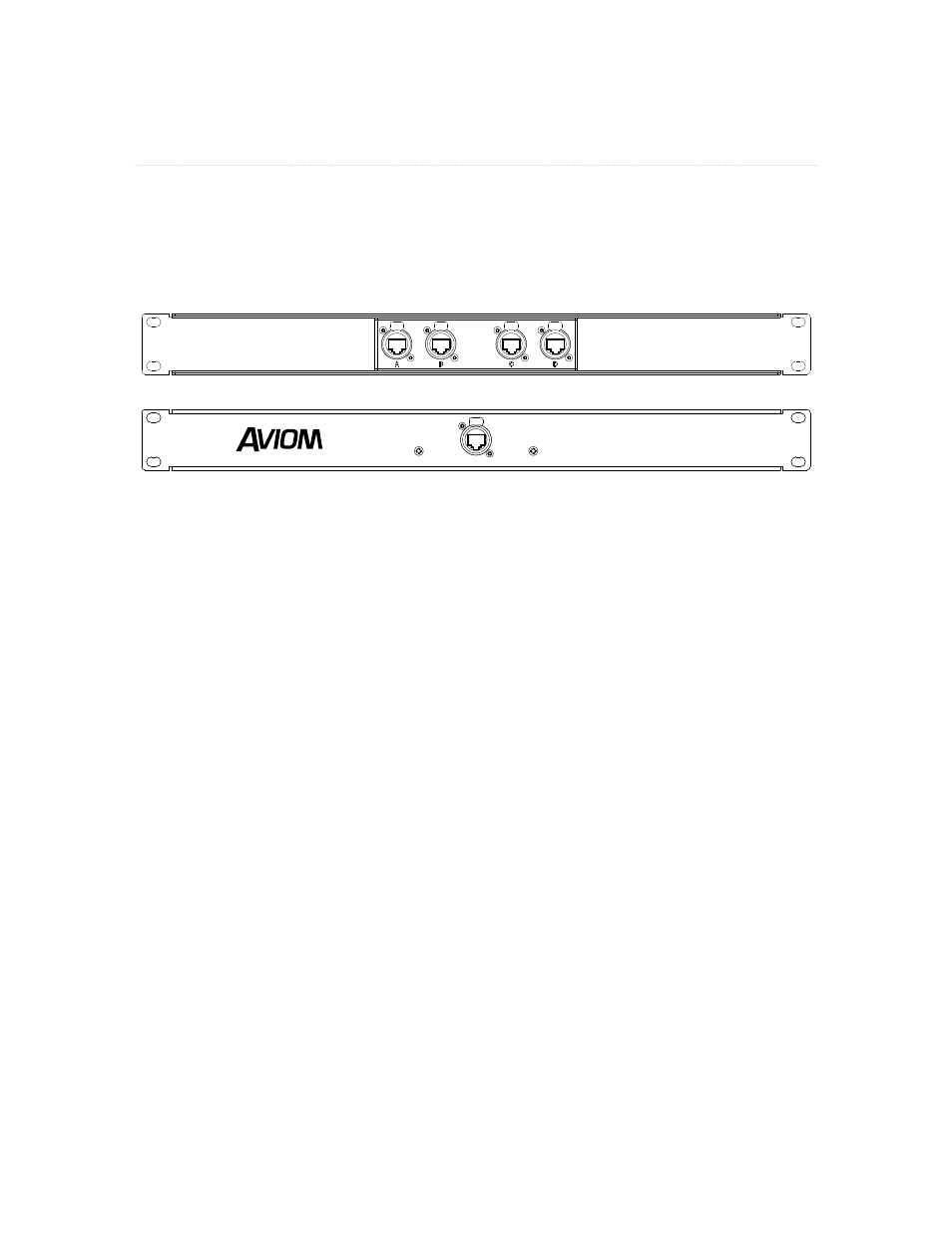

AN-16SBR System Bridge front and rear panels are shown.
The AN-16SBR is sold as a pair; each has four A-Net ports on the rear (labeled A, B, C, and D) and a B
rIDge
port on the front. Each rear panel port supports one input/output pair of A-Net devices.
