21 AN-16/ i v .2 i Nput M odule u ser G uide

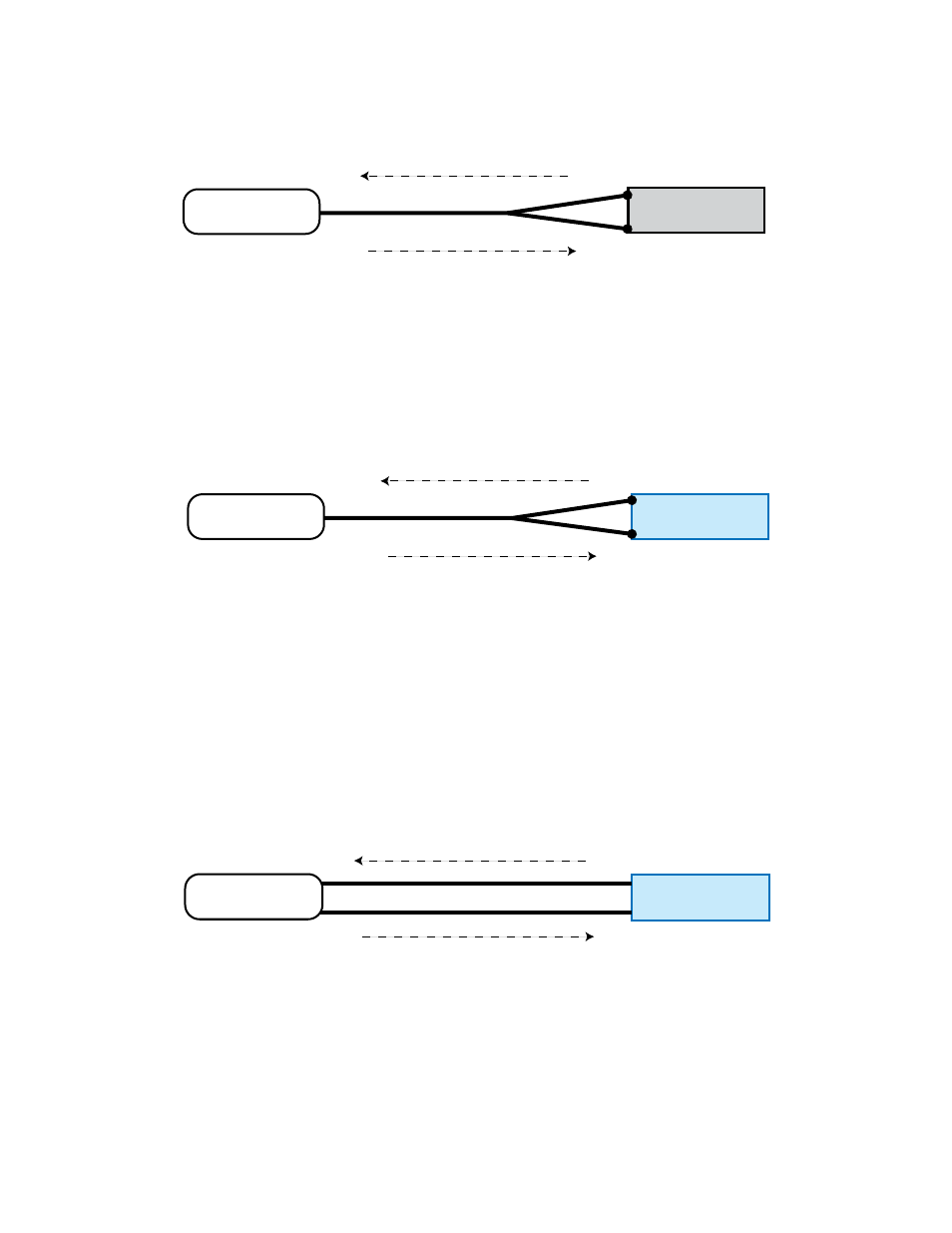

Console TRS
Channel Insert
Input
Audio flows from the console insert point into the effect
device and then back to the console
Output
Effect Device
Audio flows from the console insert point into the effect device and then back to the console using a Y-cable.
To use the AN-16/i v.2 with this insert layout, both the I
N
and t
hru
jacks on the AN-16/i v.2 are used. The
main console’s Insert Send should be plugged into the I
N
jack on the AN-16/i. v.2 The t
hru
jack on the
AN-16/i v.2 is used to return the signal to the console, completing the audio loop. In this case the AN-16/i v.2
Input Module acts like an effects device, but it has no audible effect and does not change the audio signal
in any way.
Console TRS
Channel Insert
AN-16/i v.2
Input
Audio flows from the console insert point into the AN-16/i
and then back to the console
Thru
Audio flows from the TRS console insert point into the AN-16/i v.2 and then back to the console.
Discrete Insert Send and Return Jacks
If a mixing console uses separate jacks for its insert Send and Return functions, the cable connections are
much more obvious. The Send from the insert point on the console is connected to the AN-16/i v.2 I
N
jack.
A cable from the t
hru
jack on the AN-16/i v.2 is connected to the r
eturN
jack on the console to complete
the loop. Both balanced and unbalanced versions of this wiring exist on mixing consoles. Consult your
mixing console’s documentation for additional information; use balanced cables if the option exists.
Console TRS
Channel Insert
AN-16/i v.2
Input Send
Audio flows from the console Insert Send point into the AN-16/i v.2
and then back into the console via the Insert Return
Thru Return
Audio flows from the Send jack of the console insert point into the AN-16/i v.2 and then back into the console via the
Insert Return jack.
