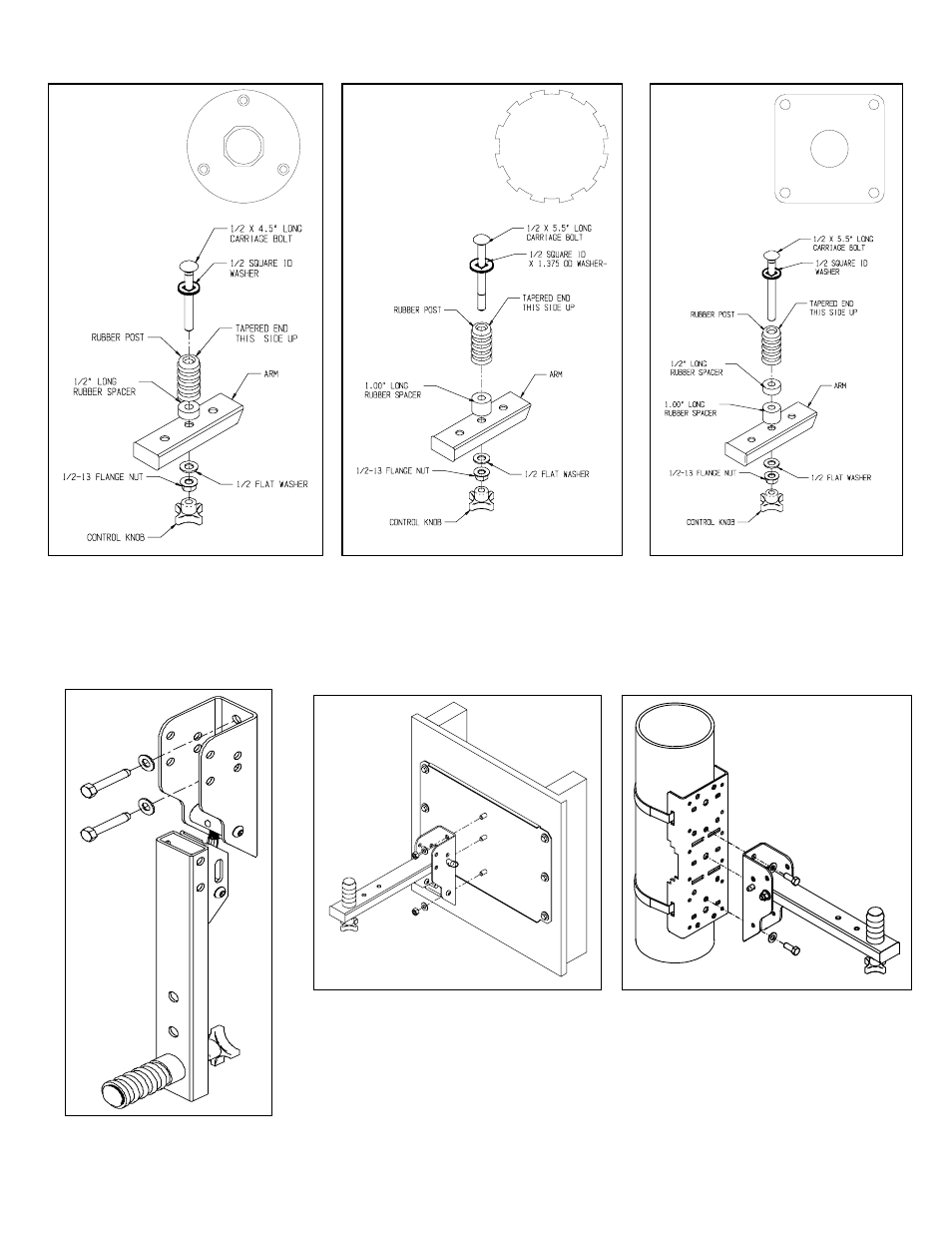

Figure 2:
Molded-In-plastic
ribbed style
use 1” rubber spacer Figure 3:
Metal style use
½” and 1” rubber
spacer
If the optional Stud Brace Plate is selected to bridge the SocketMount between two structural wall studs, install this in the desired area
now then bolt socket mount directly to the bridge (Figure 4).
If the optional Pole Adapter Plate is available to mount the SocketMount to a radial surface, install it in the desired area now the bolt
SocketMount directly to the pole adapter (Figure 5).
Figure 4 (Optional Stud Brace)
Figure 3
Figure 5 (Optional PoleStar™)
Figure 1:
Plastic cup style
use 1/2” rubber
spacer
