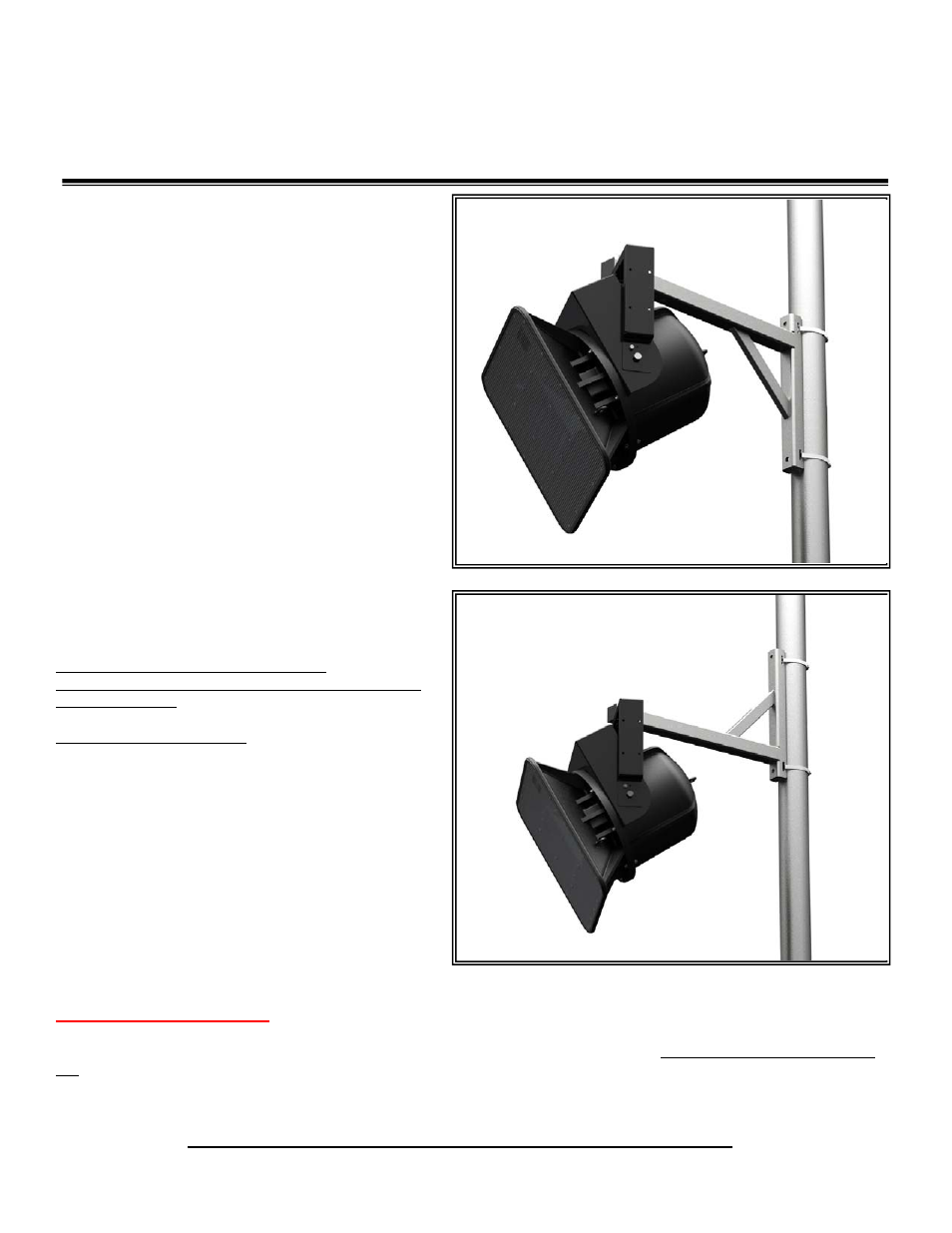

Figure 1:
PoleStar ™ PM-24-6DOWN-G
2” to 6” Pole Mount with 24” long Arm
Installation Instructions
The PoleStar ™ PM-24-6DOWN-G all-weather, galvanized steel
pole mount is designed to mount loudspeakers and other
equipment from vertical surfaces and columns. The PoleStar
™
PM-24-6DOWN-G accommodates many standard mounts for a
wide variety of mounting solutions, including, yokes and U-
Brackets.
The universal strap kit provides a banding system to attach the PM-
24-6DOWN-G Pole Mount to vertical poles or columns from 2” up
to 6” diameter.
Important: Mounting overhead system requires professional
experience. Improperly installed equipment can result in
property damage, personal injury, death and/or liability to the
installing contractor. Do not install if in doubt about the integrity of
the mounting structure.
Caution: Due to the wide variety of mounting structures,
environments, materials and mounting methods, the installing
contractor must exercise good judgment in selecting the proper
mounting area and hardware.
Follow these instructions for the most efficient and safest
mounting results.
Do not exceed the working load limit of 300lbs/136 kg.
DO NOT use Pneumatic tool to tighten bolts.
Use Loctite to permanently secure nuts to bolts and prevent
loosening overtime.
Bolt Torque: 35-40 foot pounds
Package Contents:
1 pc
Pole Mount, 6DOWN” w/ 24” arm
1 pc ½-13 x 3.5” long hex bolt
1 pc ½-13 x 4.5” long hex bolt
1 pc ½-13 nylock nut
1 pc ½ split lock washer
1 pc ½ Flat washer
2 pcs 20” long 1/2“ wide banding strap
2 pcs Scru seal housing and rack assembly
1 pc Friction gasket
1 pc Loctite #262
1 pc Instruction sheet
Install Banding Strap Kit:
Step 1
Insert one end of the strap into the rectangular slot of the housing then fold at least two inch long or longer (a longer fold creates a more effective
lock) then flatten band using thumb to form a hook. The folded end should be on the opposite side of the housing’s screw head (Figure 1).
Step 2
Insert the end of the rack into the housing and rotate screw head clockwise using a screw driver until 3/4” of the rack comes out on the other end of
the housing (Figure 2). MAKE SURE THAT THE WORD “THIS SIDE UP” WRITTEN ON THE RACK IS FACING OUT.
