Adaptive Technologies UB-325-13 User Manual
U-bracket, Installation instructions

©2013 Allen Products Co., Inc. Signal Hill, CA 90755
(562) 424-1100
-REV00-032613

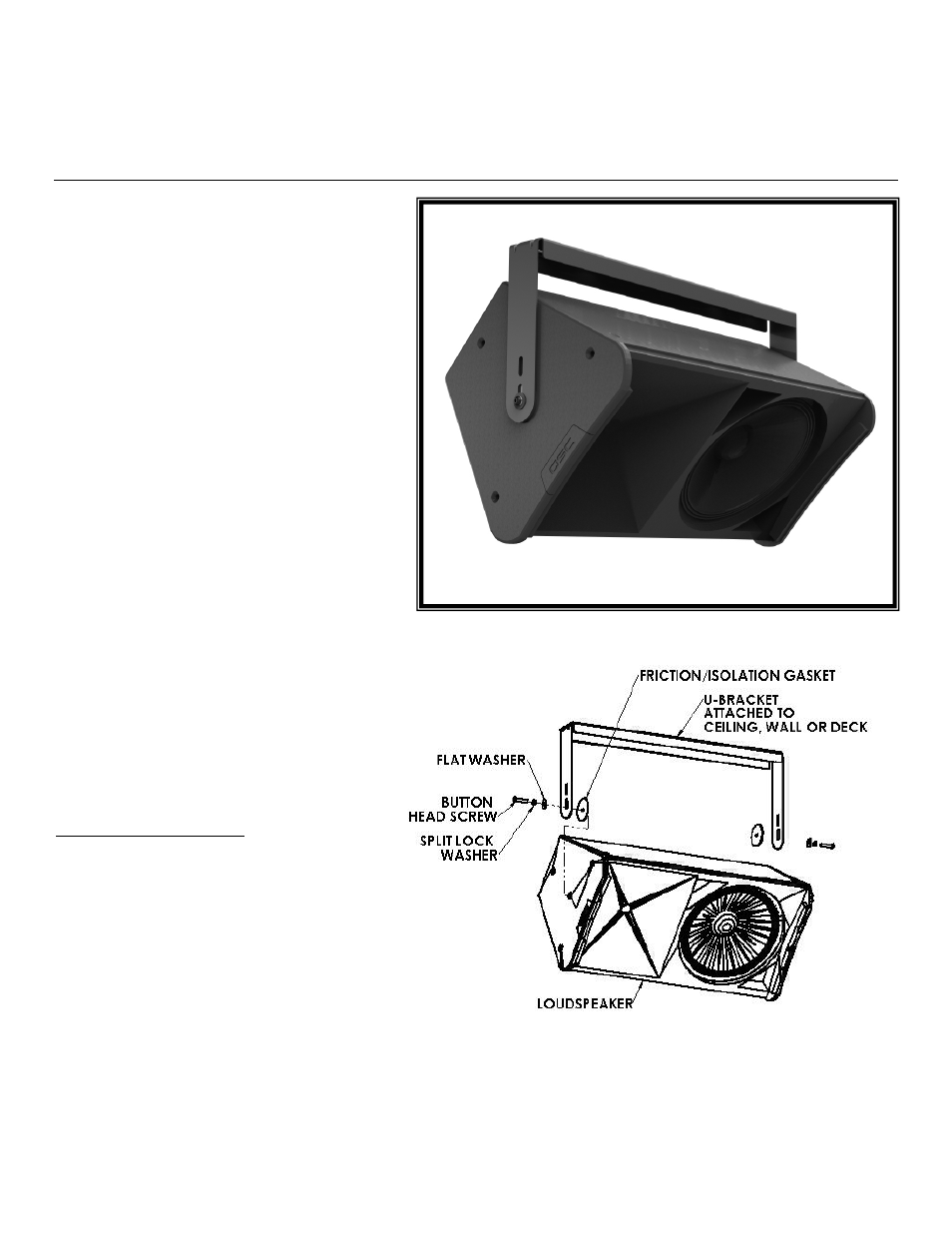

Figure 1
UB-325-13
U-Bracket
Installation Instructions
The UB-325-13 U-Bracket is a mounting bracket
that attaches a loudspeaker to a wall, deck,
ceiling, or balcony and provides a one axis aiming
feature.
Warning:
Mounting and/or rigging loudspeakers requires
experienced professionals.
Improperly installed
loudspeakers can result in property
damage, personal injury, death and/or
liability to the installing contractor.
Note to Contractor: Due to the wide variety of
wall structures, materials and methods, the
contractor should exercise good judgment in
selecting the proper mounting area and
hardware. Do not rely on drywall, acoustic tiles,
etc. to support the weight of any loudspeaker.
To assure a trouble free installation, read through
and follow these instructions carefully before
beginning. If you have doubts about the integrity
of the structure you are mounting to, or you
are not sure about the proper hardware to
use, consult a structural and/or hardware
specialist. The structure should be capable
of supporting 5 to 10 times the actual weight
of the speaker. The use of a back up safety
system, such as a safety cable, is highly
recommended. Standard safety cables are
available from stock.
Contents:
Qty:
Description
1 pc.
U- Bracket Speaker Mount
1 pc.
Instruction Sheet
1 bag
Hardware kit package (M10
hardware)
Step 1:
Place the U-Bracket over the
speaker cabinet to be sure
you have the correct mount.
Sound isolation gaskets are
placed between the
loudspeaker cabinet and the
U-Bracket’s arms. Also,
compare the included assembly hardware with that of the loudspeaker. If threaded mounting points are
not provided by the manufacturer contact them for the correct mounting procedure.
