Adaptive Technologies SAS-100-20 User Manual
Installation instructions

2001 Allen Products Company Incorporated, Signal Hill, CA 90806 USA (562) 424-1100 09/10/01
Figure 1
Figure 2
Optional Accessory:
Wall Stud Brace Plate
SAS-100-20 Rated Wall Arm
Installation Instructions
Thank you for selecting the SAS-100-20
Universal wall arm. This
universal wall arm is designed to support a variety of mounts to
walls or other safe vertical structures while providing a pan angle
adjustment.
Important:
Mounting and rigging video equipment requires experienced
professionals.
Improperly installed video equipment can
result in property damage, personal injury, death and/or
liability to the installing contractor. Do not install if in doubt
about the integrity of the mounting structure.
Follow these instructions for the most efficient and safest
mounting results.
Caution:
Due to the wide variety of wall structures, materials and
mounting methods, these instructions assume that the installing
contractor/installer will exercise good judgment in selecting the proper mounting area hardware.
As a guide, the installation, when completed should be capable of supporting at least 5 times the actual applied load.

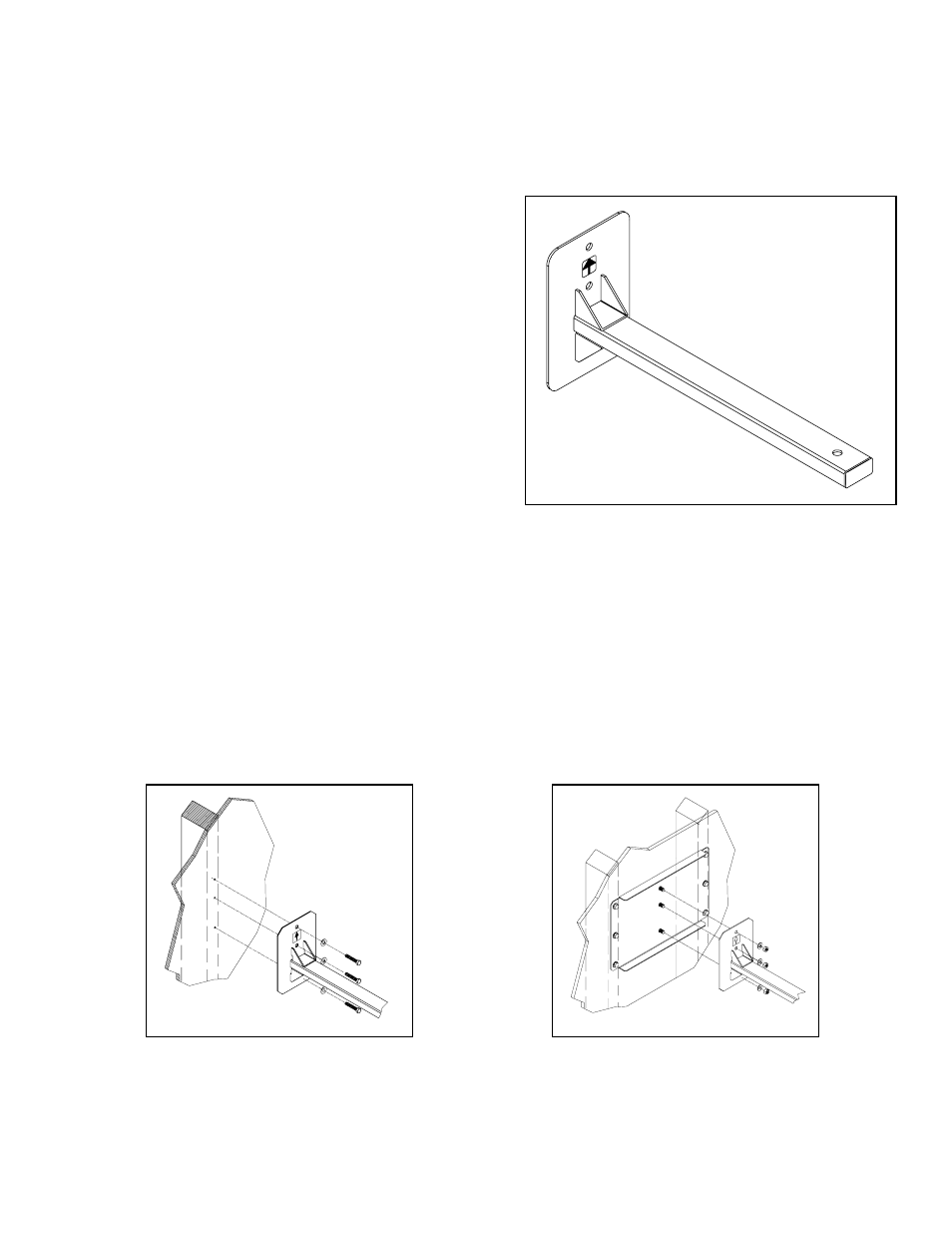

Step 1. Attach mounting arm to wall:
Secure the mounting arm assembly to the wall with the “This End Up” label arrow pointing up.
Check with your hardware
specialist for proper mounting hardware (Figure 1).
An optional Stud Brace Plate is available to adapt to structural wall studs (Figure 2).
Model #:
WP-16
for 16” stud separation
WP-24
for 24” stud separation
