Adaptive Technologies UB-225-9 User Manual
Ub-225-9, Fixed width u-bracket series, Installation instructions

©2013 Allen Products Co., Inc. Signal Hill, CA 90755
(562) 424-1100
-REV00-072613

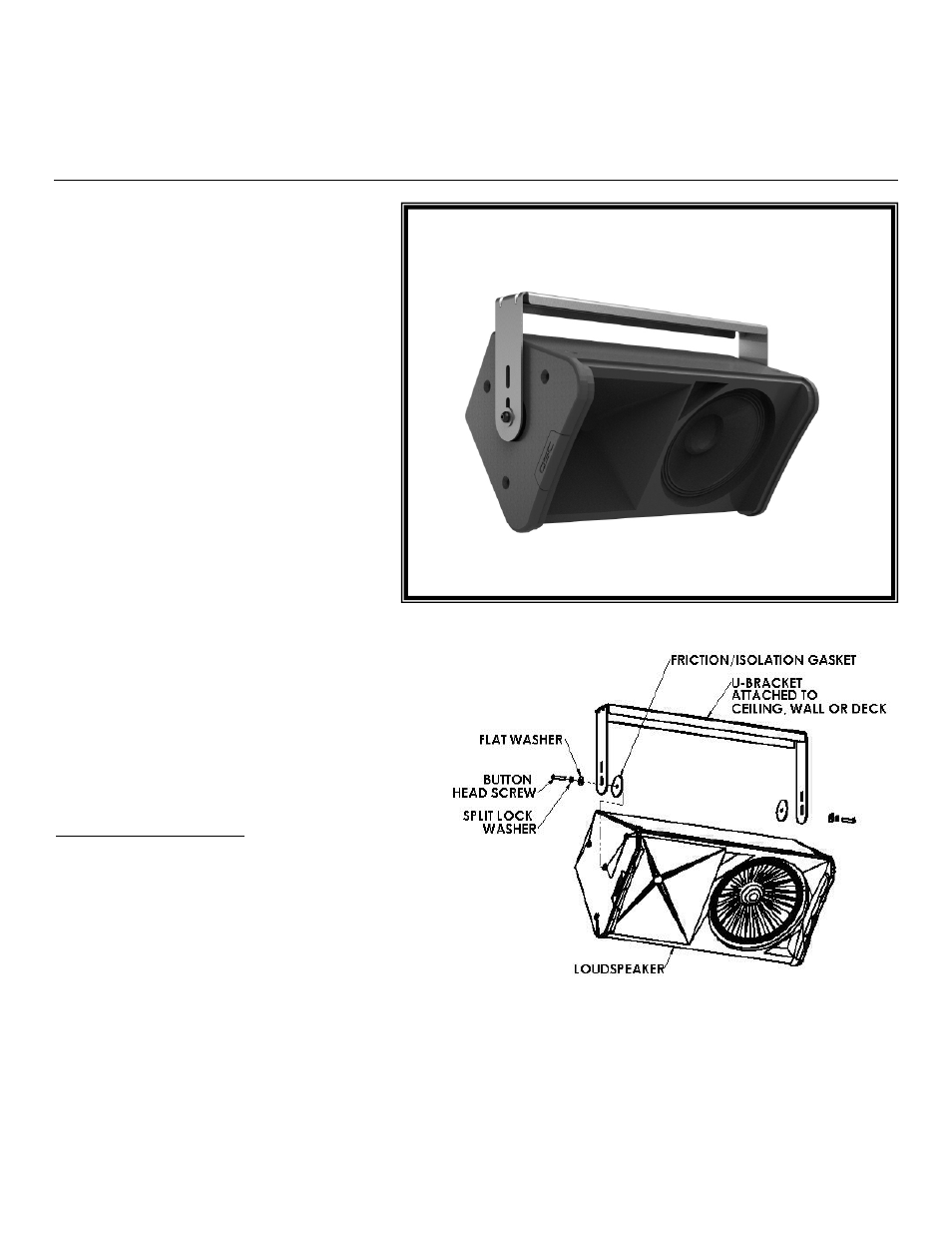

Figure 1
UB-225-9
Fixed Width U-Bracket series
Installation Instructions
The UB-225-9 U-Bracket is a mounting bracket
that attaches loudspeakers to a wall, deck,
ceiling, or balcony and provides one axis aiming
feature.
Warning:
Mounting and/or rigging loudspeakers requires
experienced professionals.
Improperly
installed loudspeakers can result in
property damage, personal injury, death
and/or liability to the installing
contractor.
Note to Contractor: Due to the wide variety
of wall structures, materials and methods, the
contractor should exercise good judgment in
selecting the proper mounting area and
hardware. Do not rely on drywall, acoustic tiles,
etc. to support the weight of any loudspeaker.
To assure a trouble free installation, read
through and follow these instructions carefully
before beginning. If you have doubts about the
integrity of the structure you are mounting to, or
you are not sure about the proper hardware to
use, consult a structural and/or hardware
specialist. The structure should be capable of
supporting 5 to 10 times the actual weight of the
speaker. The use of a back up safety system, such
as a safety cable, is highly recommended.
Standard safety cables are available from stock.
Contents:
Qty:
Description
1 pc.
U- Bracket Speaker Mount
1 pc.
Instruction Sheet
2 pcs
Button head screw, M10x45mm
2 pcs
Flat washer, M10
2 pcs
Split lock washer, M10
2 pcs
friction washer, 1/8” thick
2 pcs
Friction washer, ¼” thick
2 pcs
Button head screw, 3/8-16x1.75”
Step 1:
Place the U-Bracket over the
speaker cabinet to be sure you
have the correct mount. Sound isolation gaskets are placed between the loudspeaker cabinet and the U-
Bracket’s arms. Also, compare the included assembly hardware with that of the loudspeaker. If threaded
mounting points are not provided by the manufacturer contact them for the correct mounting procedure.
Note: Make sure to use the correct screw size on the speaker (Two M10 screw and Two 3/8-16 included).
