SAS-1WA-20 One-Way-Array
Installation Instructions

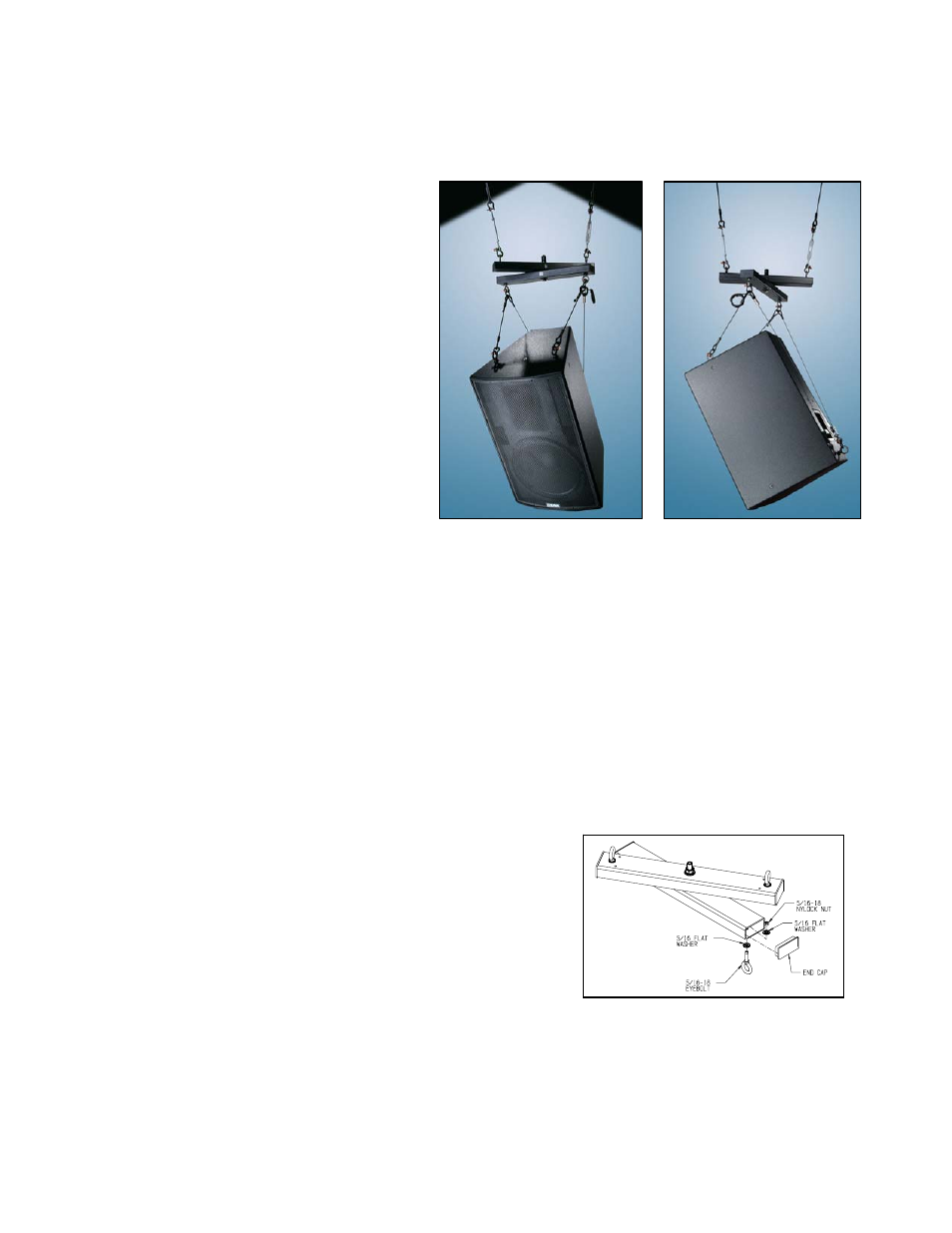

The One Way Array is a load rated overhead
suspension product used to suspend and aim a single
loudspeaker cabinet and other objects equipped with
safe rigging points.
Warning:
Mounting and rigging audio equipment requires
experienced professionals.
Improperly installed
audio and video equipment can result in
property damage, personal injury, death
and/or liability to the installing contractor.
Important:
Due to the wide variety of overhead structures,
rigging materials and rigging methods, these
instructions assume that the installing
contractor/installer will exercise good judgment in
selecting the proper suspension points, hardware and
mounting area.
As a guide, the installation, when completed should be capable of supporting at least 5 times the actual
applied load.
Do not exceed the rigging system’s working load limit. Use only Grade 8 hardware at
attachment points to ensure a safe installation.
Package
Contents:
1 pc. One Way Array
4 pc. 1/4-20 x 3/4” pan screw
4
pc.
5/16”
Eye
bolts
4
pc.
1/4-20
nylock
nut
4 pc. 5/16-18 nylock nut
8 pc. ¼” flat washer
8 pc. 5/16” flat washer
4 pc. End cap
1 pc. Cotter pin
For Rigging Installation:
Direct suspension of hardware (cable or chain) to the building’s suspension points should provide an approximate 5°
splay angle off (vertical) axis each, to achieve the proper tension. Be sure that the combined overhead suspension points
are capable of supporting at least 5 times the weight of the entire suspended load.
Step 1.
Install the 5/16” eyebolts to the upper arm of the One-Way Array, as
illustrated in fig. 1 with the provided washers and nuts.
Step 2.
Repeat steps for the lower arm. Do not tighten permanently yet.
Step 3.
Attach the selected suspension hardware (cable or chain) to the eyebolts
of the upper arm of the One-Way Array (figure 3).
Step 4.
Suspend the loudspeaker from the selected tilting device such as the
Steerables cable tilting system. If fabricating your own, use load rated rigging hardware. Attach load rated rigging
hardware to the lower Cross Arm’s eyebolts (Figure 3). See Adjustable Tilt Cable kit Instruction sheet for
installation.
Figure 1
