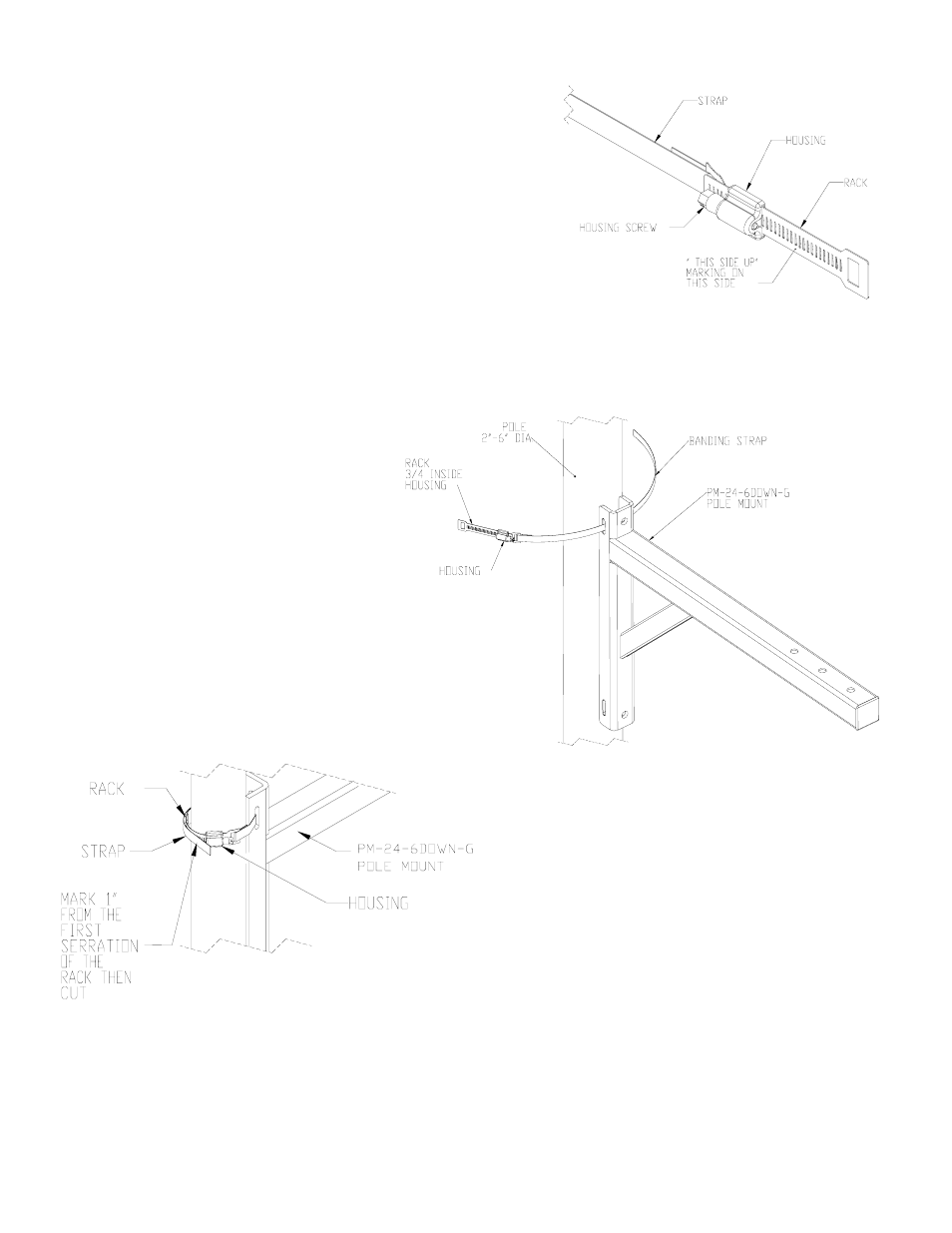

Figure 3
Figure 1
Figure 2
Step 3
Insert the other end of the band through the slots of the PM-MOUNT-6DOWN-G
and out on the other side. Wrap the band snugly around the pole until the end
reaches rectangular slot of the rack (Figure 3).
Step 4
Measure, mark and cut the band at least one inch beyond the first serration of the
rack, then bend at least a one inch hook toward underside of band (Figure 4 & 5).
Step 5
Insert the hook into the rectangular slot of the rack, if necessary loosen the rack
from the housing. Flatten band with thumb to form a clamp (Figure 4).
Step 6
Position the location of the PM-MOUNT-6DOWN-G on the pole and then tighten
screw using screw or wrench to desired tension and complete the banding
operation (Figure 5).
Step 7
Repeat steps 1 to 6 for the lower banding strap
assembly.
Note: Optional
To strengthen banding strap use two straps on
each slot of the PM-MOUNT-6DOWN-G
