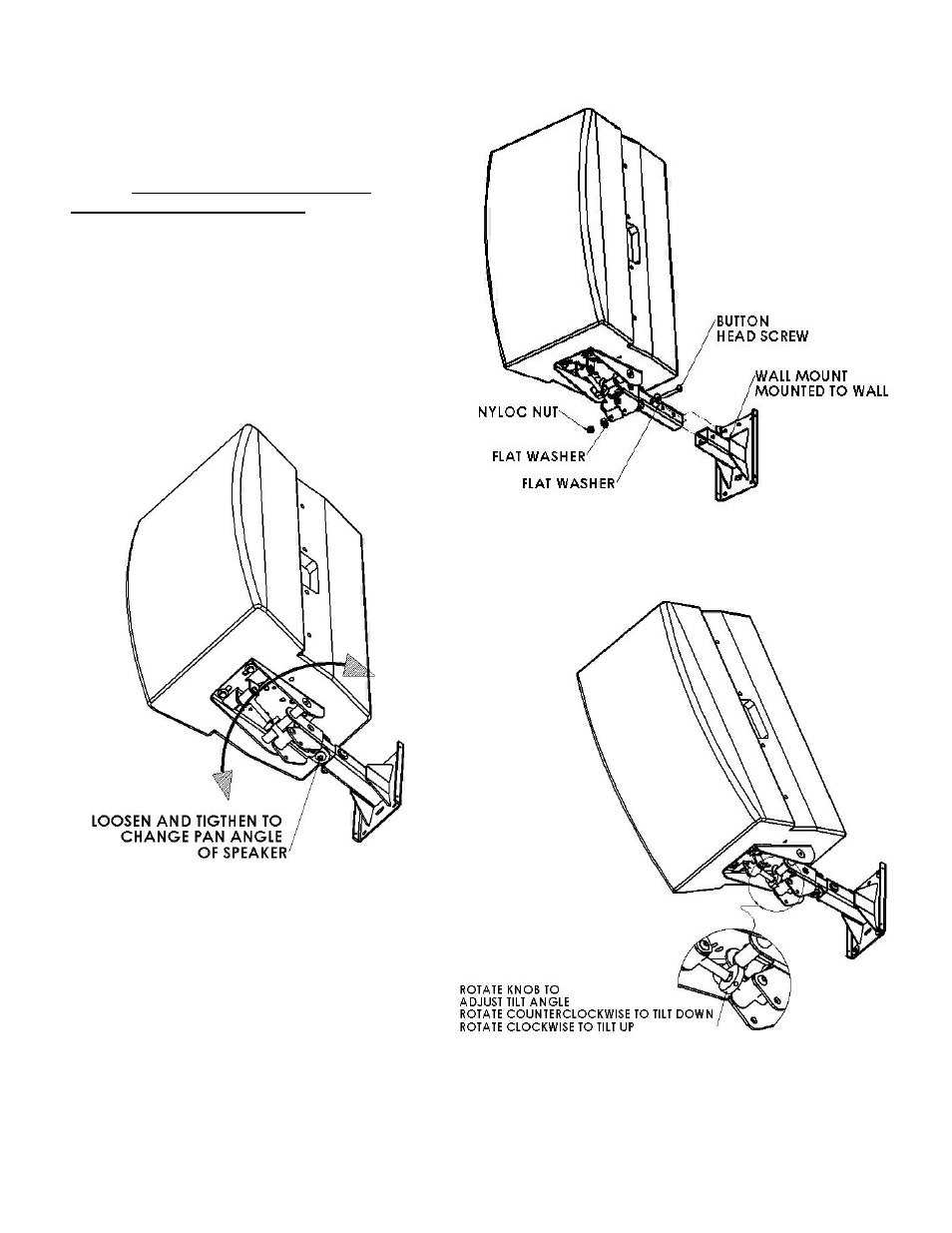

Figure 6

Step 7: Setting the tilt angle
While supporting the weight of the speaker, rotate the
tilt control knob until the desired tilt angle is achieved
(Figure 8).

Caution; DO NOT ATTEMPT TO ADJUST THE

SPEAKER MORE THAN 50° DOWN.

Step 8: Recommendation: Install Safety Cable
Attach a safety cable (sold separately) to the mounting
surface (Must be able to support at least five times
the weight of the speaker), then attach the other end
of the safety cable to the speaker. If no attachment is
provided on speaker, consult speaker manufacturer for
advice on best attachment point and method.

Figure 8

Figure 7
