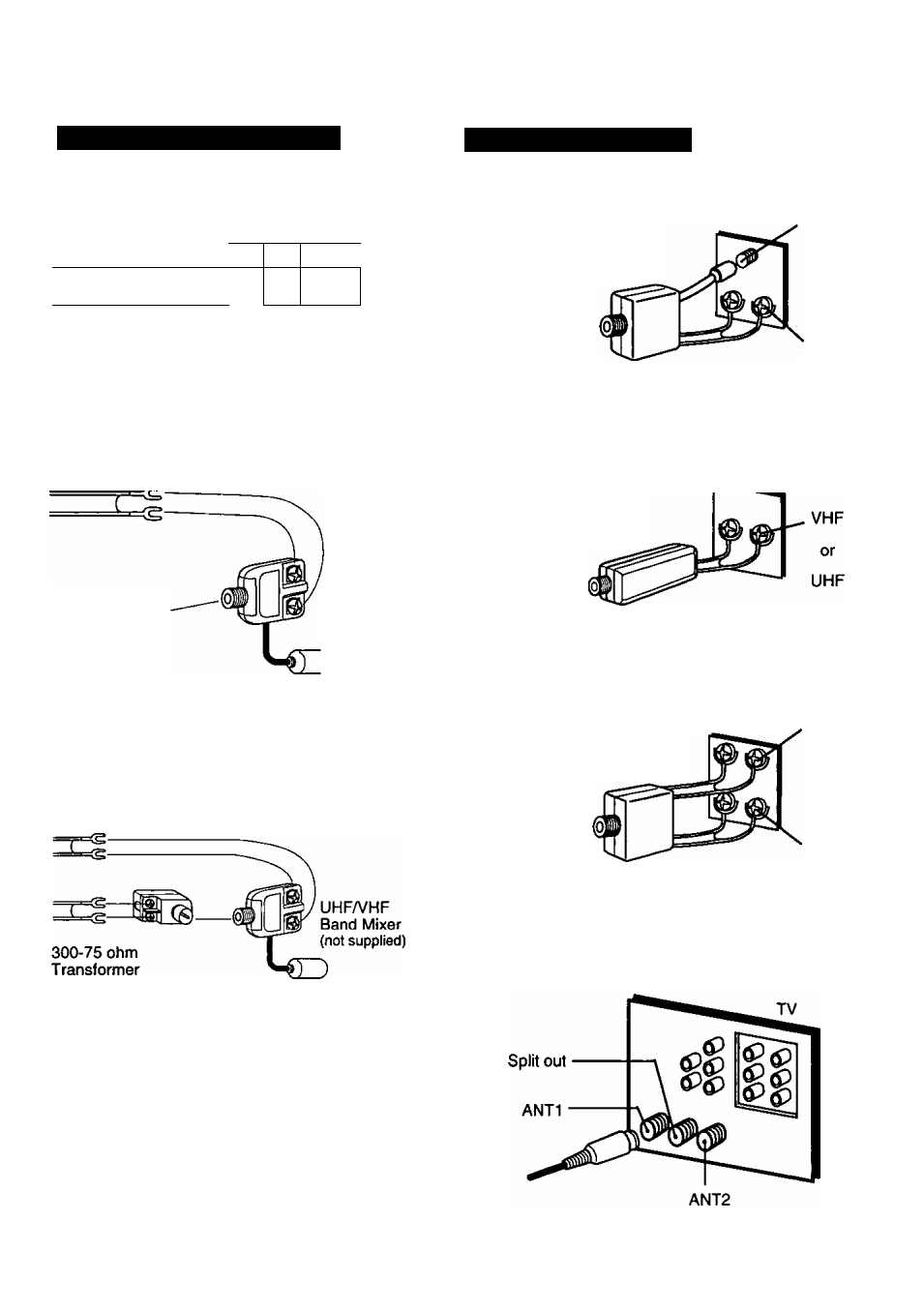

Between Antenna and VCR
Between VCR and TV
Case 1: Twin Lead Cable Only
To VCR Terminal
(Flat) Twin Lead
300 Ohm Cable
------------------- -—f7=^
(d
300-75 ohm Transformer
(not supplied)
Case 1: Screw & Plug Type Terminal
UHFA/HF Band
^
Separator
(not supplied)
RF Coaxial Cable
VHF
UHF
Case 2: Twin Lead & Coaxial Cables
Case 2: Screw Type Terminal
(Round) 75 Ohm
coaxial Cable
UHFA/HF
Band Mixer
(not supplied)
To VCR Terminal
Case 3: Two Twin Lead Cables
(not supplied)
To VCR Terminal
If your TV has both post and plug-type VHF
terminals, the post connection is recommended to
minimize signal loss.
75-300 ohm
T ransformer
(not supplied)
Case 3: Double Screw Type Terminal
TV
UHFA/HF Band
Separator
(not supplied)
VHF
UHF
Case 4: Complex TV Terminal
TERMINALS ON BACK OF TV SET
• Connect to one of the ANT terminals and select the
same antenna number on the TV.
