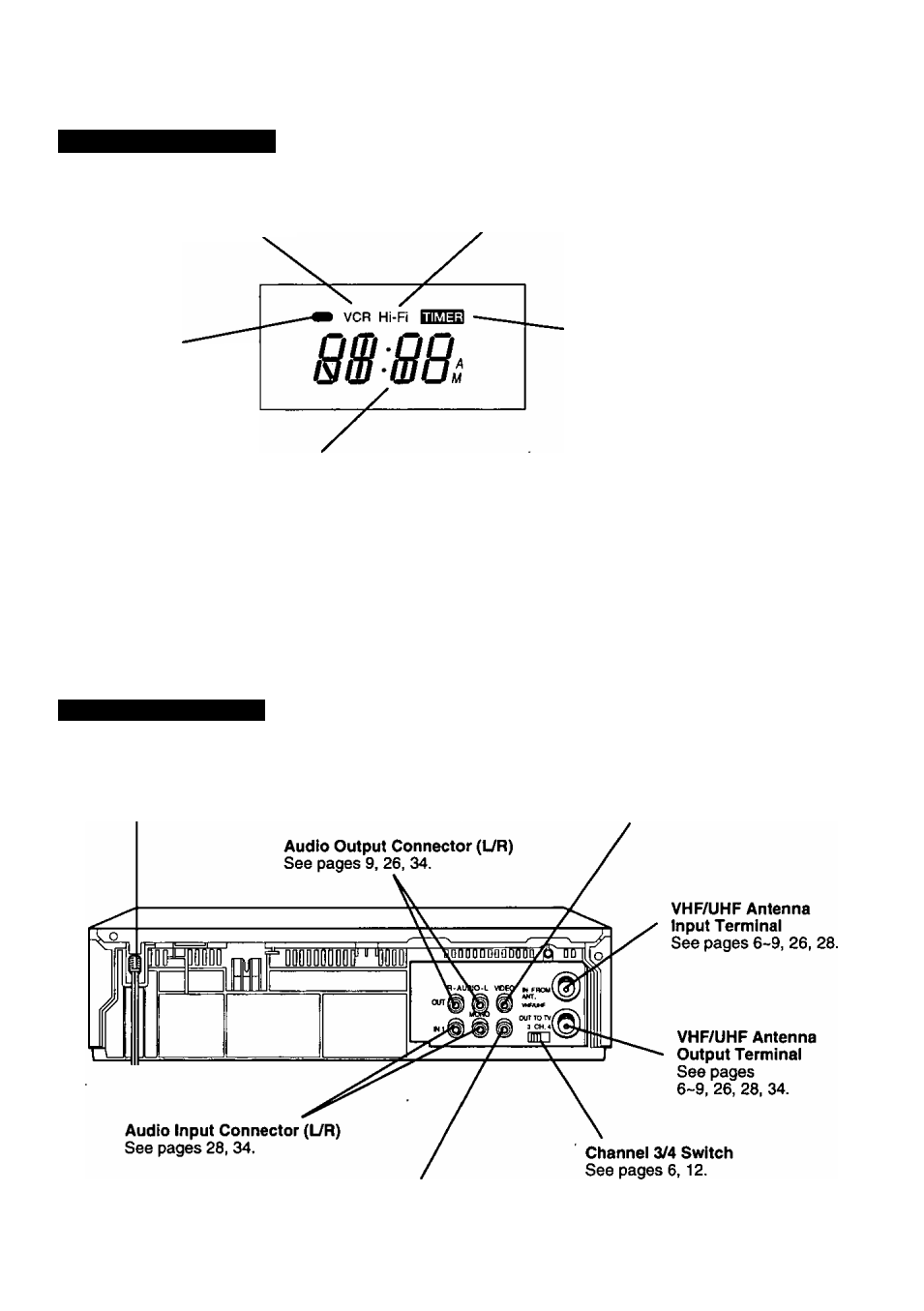

Multi Function Display

VCR Indicator

Lights when the VCR/TV

selector is set to VCR.

Hi-Fi Indicator
Lights when Hi-Fi audio is
monitored or playback.

Power Indicator
Lights when power is on.

Timer Indicator

Lights when the VCR is set for a

Timer Recording, or when a length

is set for a normal recording (OTR).

The timer indicator flashes when a
Timer Recording is set, but a tape

has not been inserted into the VCR.

Clock/ Status/ Channel/ Speed Display

Displays the current time.
Briefly displays VCR status when a function button is pressed.
Briefly displays the channel number, or “L1” or “L2” when a channel

or line input is selected.

Briefly displays the recording speed when SPEED is pressed.

Rear View of the VCR

AC Power Plug

While plugged into an AC outlet, the

VCR consumes 3.7 W of electrical
power in OFF condition.

Video Output Connector
See pages 9, 26, 34.

Video Input Connector
See pages 28, 34.
