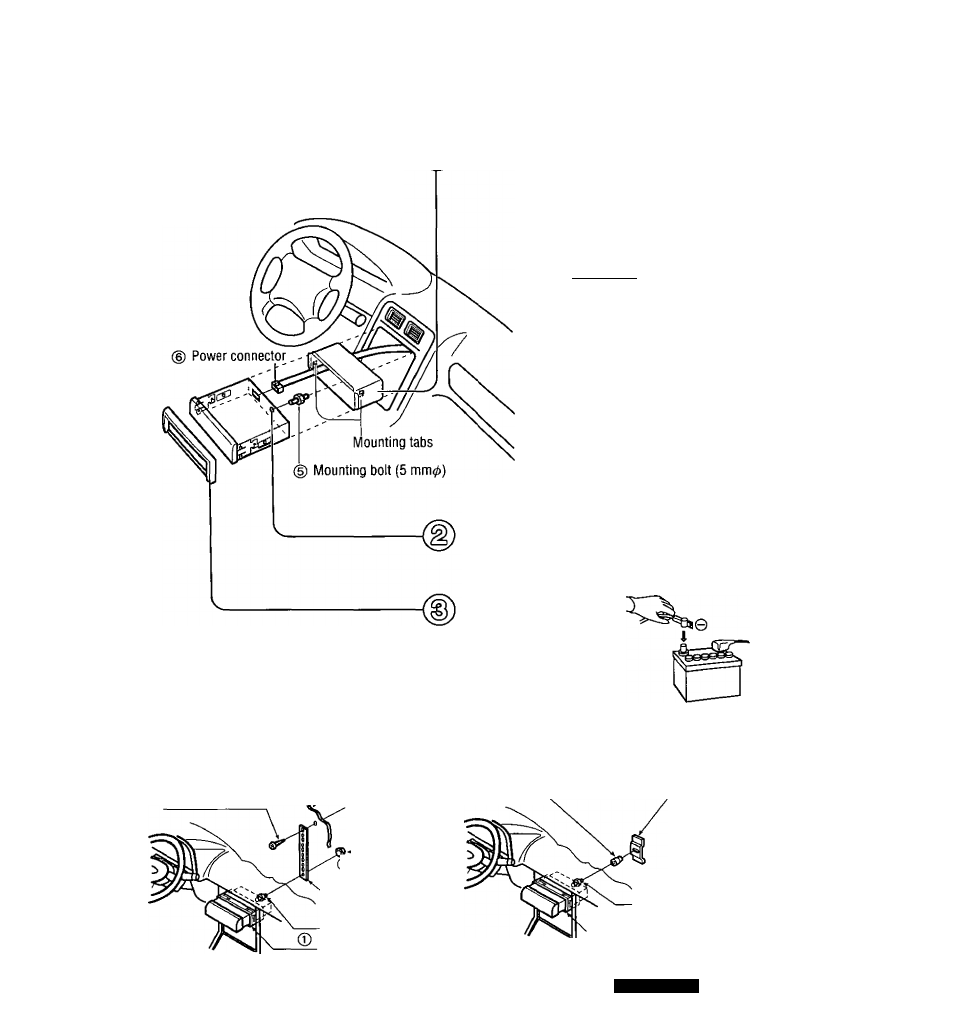

□ Installation Procedures

First complete the electrical connections, and

then check them for correctness. (=» page 58)

The included mounting collar 0 is designed

specially for this unit. Do not use it to attach

any other model.

Insert mounting collar 0 into the dashboard, and
bend the mounting tabs out with a screwdriver.

Fastening the mounting collar

The tabs to be bent vary depending

on the car. Bend them with a screw
driver to fasten the mounting collar

securely in the dashboard.

^ Dashboard

Tab

— 0 Mounting collar

-Tab

Note:

oTo securely install the unit, fully

bend a number of the tabs so that

there is no rattling,

o Be sure to fasten the unit securely

when joining it with the mounting

collar 0.

Secure the rear of the unit.

After fixing mounting bolt ® and power connector ©,
fix the rear of the unit to the car body by either

method (a) or (b) shown below.

Insert trim plate 0.

After installation, recon

nect the negative

battery

terminal.

(a) Using the rear support strap (з)

Fire wall of car

Tapping screw

(5mm0x16mm)

/ 3mm0

0 Hex. nut

{5 mm0)

I) Rear support

strap

(5) Mounting bolt

(5 mm0)

Mounting collar

(b) Using the rubber cushion (option)

Rear support bracket

Rubber cushion (option) (provided on the car)

0 Mounting bolt

(5 mm0)

0 Mounting collar

GQ1DRX912U
