Installation Guide
(continued)

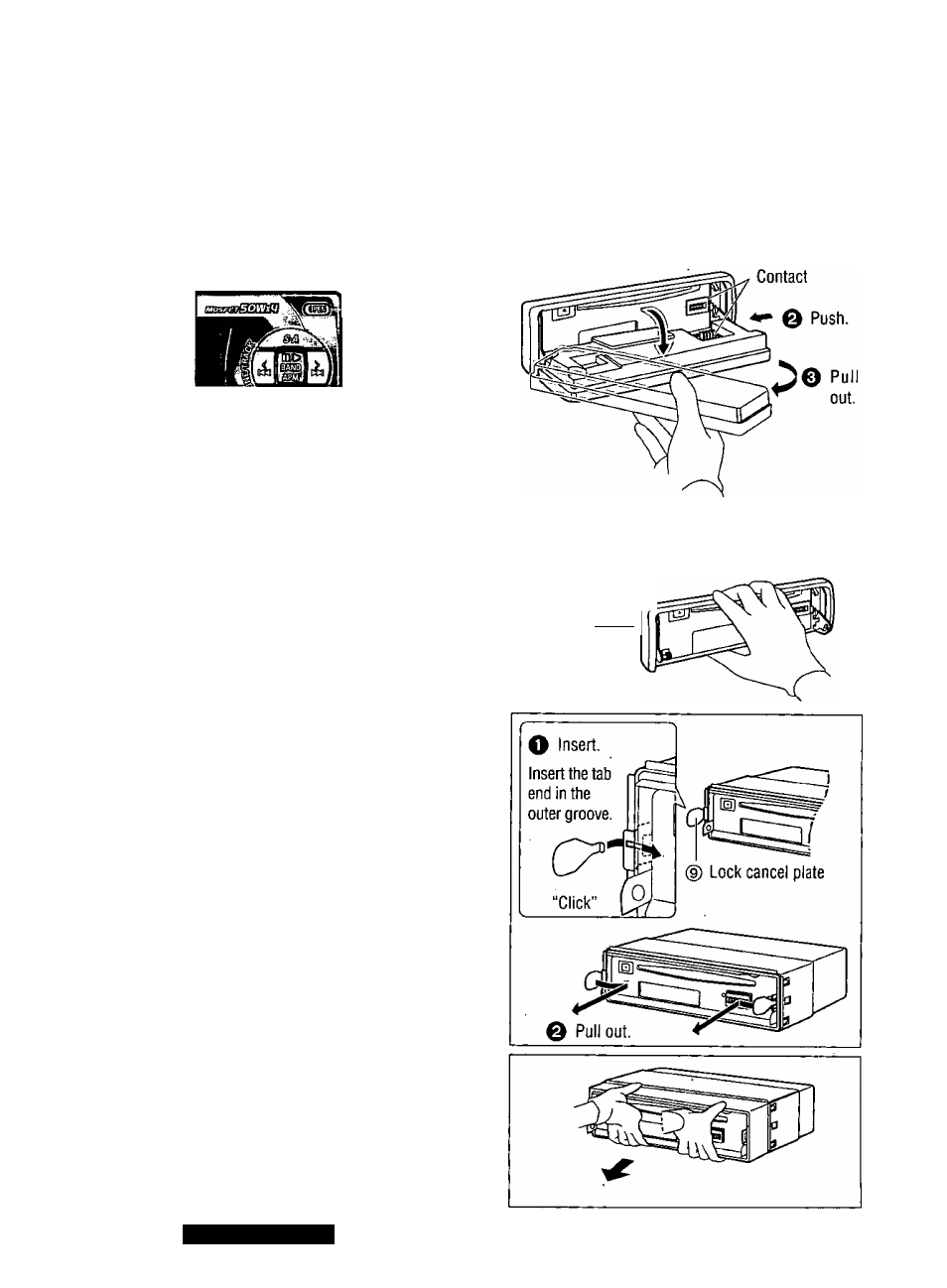

Remove the Unit
Switch off the power of the unit:
O Remove the removable face plate.
O Press [OPEN], The removable face plate
will be opened.
— [OPEN]
0
Push the face plate to the left.
0 Pull it out toward you.
G
Remove the trim plate (g) with a screwdriver.
0 0 insert the lock cancel plates (g) along
the grooves on both sides of the main
unit until “click” is heard.
0
Pull out the unit while pushing the
plates further inside.
o
Remove the unit by pulling with both hands.
48
O
Open
(8) Trim plate
Screwdriver J
------ T
CQ-DF783/DFX403U
