Installation
Connection Preparation
Cable storage compartment cover
Connect the signal cable and electrical cord
and then store the cable section that is not
used in this compartment.

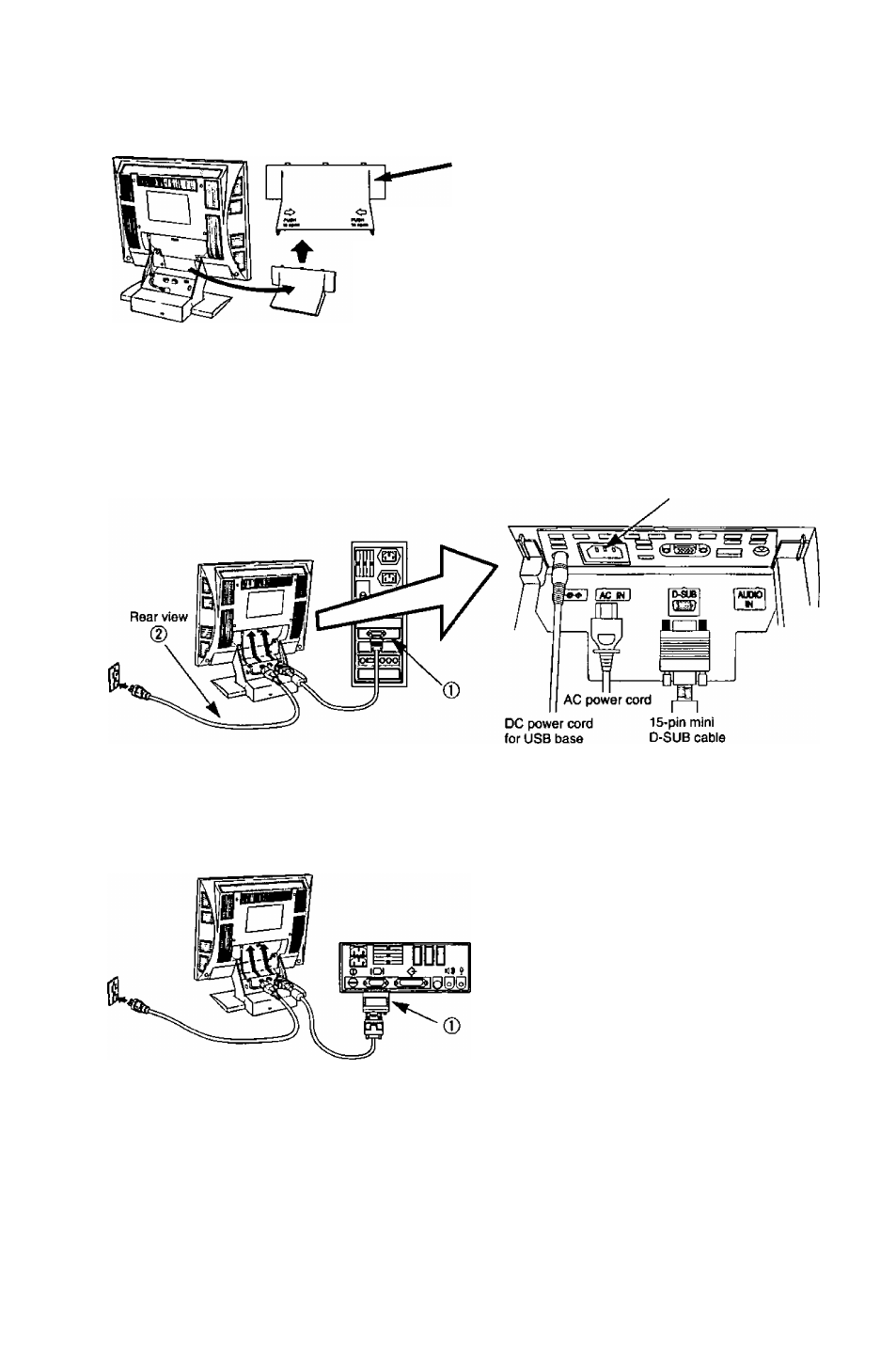

Refer to the following figure in advance and remove
the cover of the cable storage compartment.
(Remove the cover while pressing the parts indicated
by the i=>and arrow marks in the figure.)
■ Connecting Procedures
Turn off your computer. Connect the signal and power cables as shown below.
(D
Connect the supplied signal cable to the monitor’s port and to the computer video output,
d) Connect one and of the AC power cord to the monitor’s CEE 22 male socket and then the
other end of the AC power cord to a grounded power outlet.
Turn on the monitor, then turn on the computer.
A. IBM PS/2 or PC/AT compatible models
CEE 22 connector
B. Apple computers
(D
Use a UNIMAC-82D MAC adapter.
Panasonic MAC adapter
If you need an adapter and one is not provided by your dealer,
call 1-800 PANASYS (1-800-726-2797).
I—Caution:----------------
To prevent the cable from
coming loose, the cable
connectors must be securely
fastened with screws.
■ Connection of AC Power Supply
If the AC power supply voltage is in the range 100 to 240 V, either 50 Hz or 60 Hz frequency can be
used. There is no AC100 V / 240 V selector switch as selection is automatic.
— Precaution: ----------------------------------------------------------------------------------------------------
• In order to use the display unit safely, use a power cord that is supplied and make sure that it is properly
grounded.
• AC plug cords for the following countries must be used as follows:
U.S.A........ UL
Canada....CSA
For use in other countries, make sure that the AC cord meets the safety standards of each country.
- 7 -
