Symptom

Check

Action

The image is too dark.

The image scrolls
continuously.

SELF-TEST function

Signal cable

Press the MENU key to check the SELF-TEST

screen.

Is either one of the numeric values for fH or fV

displayed in red?
The input signal frequency exceeds the range of
the security range of this unit.

Read the operation manual of the computer and

change the display mode.

The display color is
abnormal.

Signal cable

Connect the signal cable correctly.

The screen size and

position do not change.

The front panel keys fail
to operate.

Is the input synchronization

signal within the operating

range?

Are 2 or more buttons being
operated at the same time?

Check the video output mode from the computer,
and select a mode within the LCD monitor
operating range. (For details, please read the
operation manual of the hardware you are using.)
Operate only one key at a time.

The sound is not correct.

AUDIO cable
Computer sound level

Connect the AUDIO cable correctly. Is the sound
level from the computer restricted?

Please refer to the operation manual for the

hardware you are using for the details.

The headphones do not

operate.

Headphone jack

Connect the headphone jack correctly.

The USB device does not

operate.

USB cable
USB hub power cable

Connect the USB cable correctly.

For details, read the operation manual of the

USB device you are using.

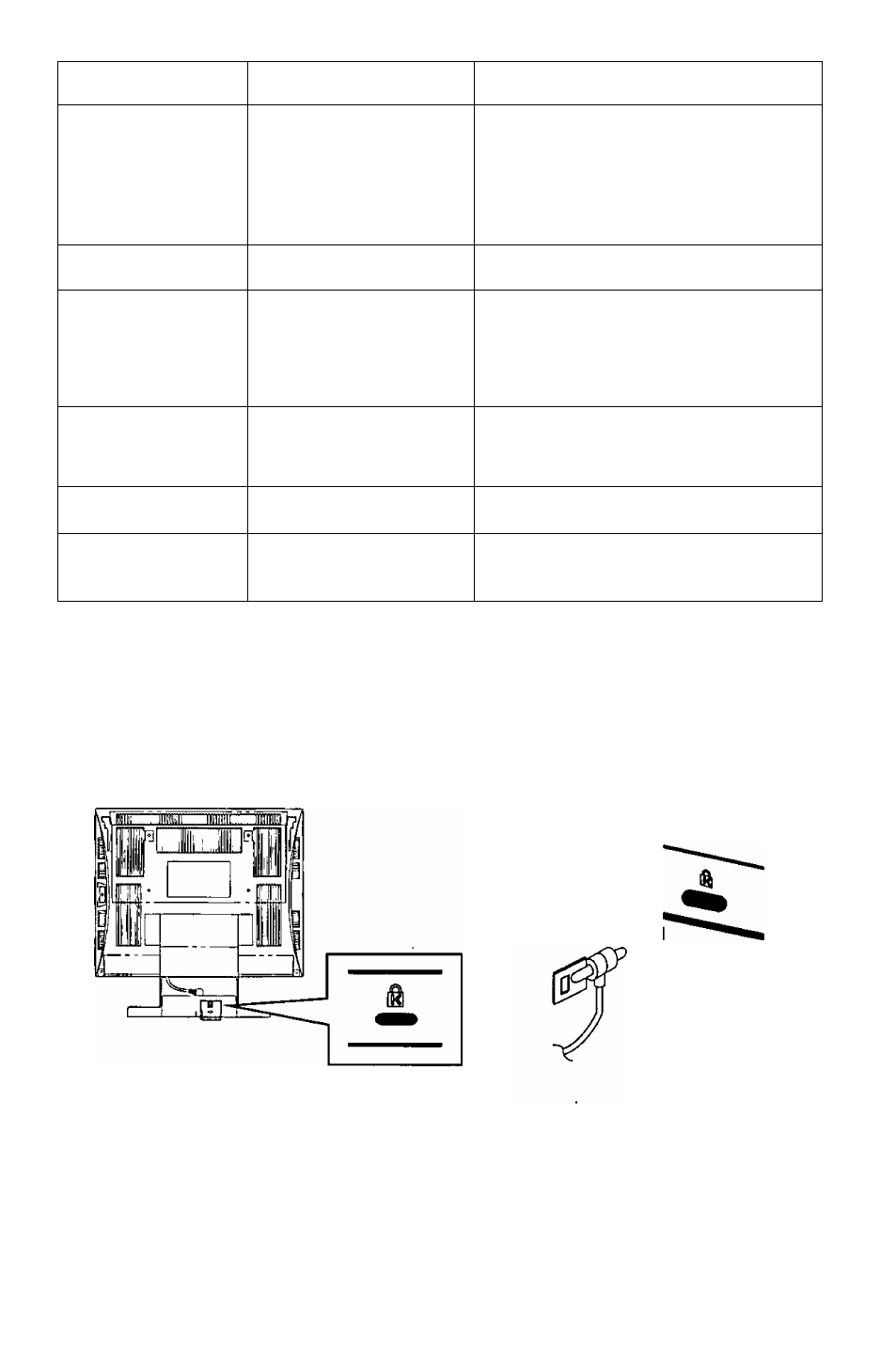

Security Port

A security cable can be installed to prevent theft of the LCD monitor base.

A wire cable manufactured by Kensington can be connected to the security port on the

rear panel of the main unit.

For details, please refer to the Kensington instruction manual

< lnquiries>
Kensington
2855 Campus Drive
San Mateo, CA USA 94403
800-535-4242, x3348

Intri: 415-572-2700, x3348
Fax: 415-572-9675
