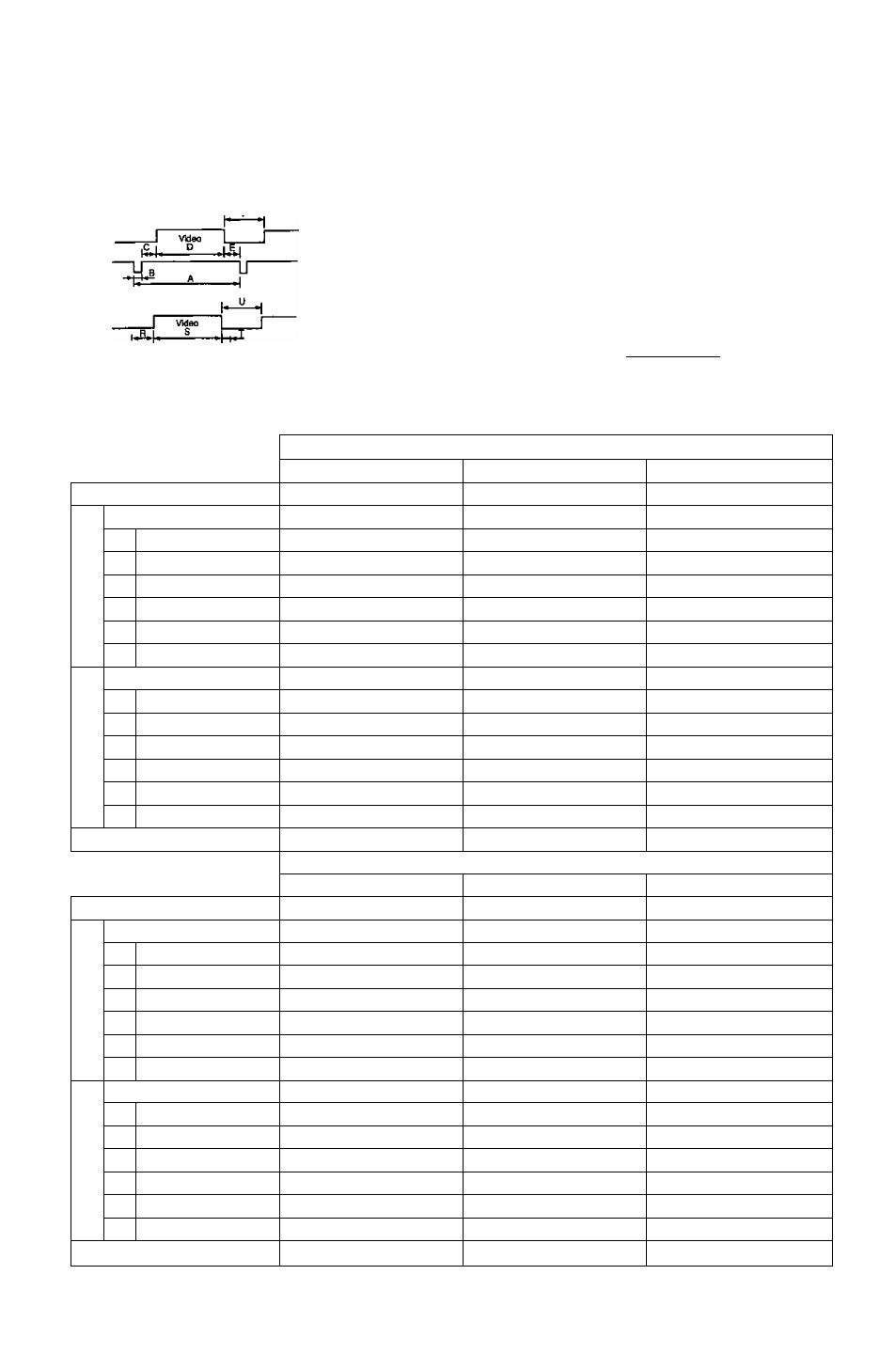

Timing Specifications
Non-interlaced only
Separate Sync.
F
H/V Composite Sync.
uinnnn__
^ L_Q
I Video
I-------
------- B-------
U"
)^Nn^rL_r
_p-------------------
J
Sync, on Green
-uJ
4-e4
1
-^
illnm_nnntt"'#rv^
JUB |.■Q„.|.R,1^ s
Reservation timing*
VGA 640
x
480 @ 60Hz VGA 640
X
400
@
70 HzMac(l3‘) 640
x
480 @67Hz"
DOT CLOCK
25.1745 MHz
25.1745 MHz
30.2410 MHz
S
c
s
•c
o
X
fH
31.4681 kHz
31.4681 kHz
35.0012 kHz
A
H-Period
31.778 us(800) Dots
31.778 us(800) Dots
28.570 us( 864) Dots
F
H-Blanking
6.355 us{160) Dots
6.355 us(160) Dots
7.407 us( 224) Dots
B
H-Sync width
3.813 us( 96) Dots
3.813 us( 96) Dots
2.083 us( 63) Dots
C
H-Back porch
1.907 us( 48) Dots
1.907 us( 48) Dots
3.241 us( 98) Dots
D
H-Active
25.423 us(640) Dots
25.423 us{640) Dots
21.163 us( 640) Dots
E
H-Front porch
0.636 us( 16) Dots
0.636 us( 16) Dots
2.083 us( 63) Dots
«
u
5
>
fV
59.9393 Hz
70.0849 Hz
66.6689 Hz
P
V-Period
16.684 ms(525) Lines
14.268 ms(449) Lines
15.000 ms( 525) Lines
U
V-Blanking
1.430 ms{ 45) Lines
1.557 ms{ 49) Lines
1.286 ms( 45) Lines
0
V-Sync width
0.064 ms{ 2) Lines
0.064 ms( 2) Lines
0.086 ms( 3) Lines
R
V-Back porch
1,049 ms( 33) Lines
1.112 ms{ 35) Lines
1.114 ms( 39) Lines
S
V-Active
15.254 ms(480) Lines
12.711 ms(400) Lines
13.714 ms{ 480) Lines
T
V-Front porch
0.318 ms( 10) Lines
0.381 ms{ 12) Lines
0.086 ms{ 3) Lines
Sync polarity (H
/
V)
Negative
/
Negative
Negative
/
Positive
Negative
/
Negative
Reservation timing*
VESA 640
x
480 @72 Hz VESA 640
X
480 @75Hz VESA 800x600 @56 Hz
DOT CLOCK
31.5000 MHz
31.5000 MHz
36.0000 MHz
s
C
o
N
•c
o
X
fH
37.861 kHz
37.500 kHz
35.1562 kHz
A
H-Period
26.413 us(832) Dots
26.667 us(840) Dots
28.444 us{1024) Dots
F
H-Btanking
6.096 us(192) Dots
6.350 us(200) Dots
6.222 us{ 224) Dots
B
H-Sync width
1.270 us{ 40) Dots
2.032 us( 64) Dots
2.000 us( 72) Dots
C
H-Back porch
4.063 us( 128) Dots
3.810 us(120) Dots
3.556 us( 128) Dots
D
H-Active
20.317 us{640) Dots
20.317 us(640) Dots
22.222 us( 800) Dots
E
H-Front porch
0.762 us( 24) Dots
0.508 us( 16) Dots
0.667 us{ 24) Dots
■ 5
0
c
>
fV
72.8088 Hz
75.000 Hz
56.250 Hz
P
V-Pehod
13.735 ms{520) Lines
13.333 ms{500) Lines
17.778 ms{ 625) Lines
U
V-Blanking
1.057 ms( 40) Lines
0.533 ms( 20) Lines
0.711 ms( 25) Lines
0
V-Sync width
0.079 ms( 3) Lines
0.080 ms( 3) Lines
0.057 ms( 2) Lines
R
V-Back porch
0.740 ms( 28) Lines
0.427 ms( 16) Lines
0.626 ms( 22) Lines
S
V-Active
12.678 ms(480) Lines
12.800 ms(480) Lines
17.067 ms( 600) Lines
T
V-Front porch
0.238 ms( 9) Lines
0.027 ms( 1) Line
0.028 ms( 1) Line
Sync polarity (H / V)
Negative / Negative
Negative / Negative
Positive / Positive
Note: All modes are Non-Interlaced.
* Factory Reservation timing have approximate size & centering,
** Requires the use of Optional Mac Adapter UNIMAC-82D.
