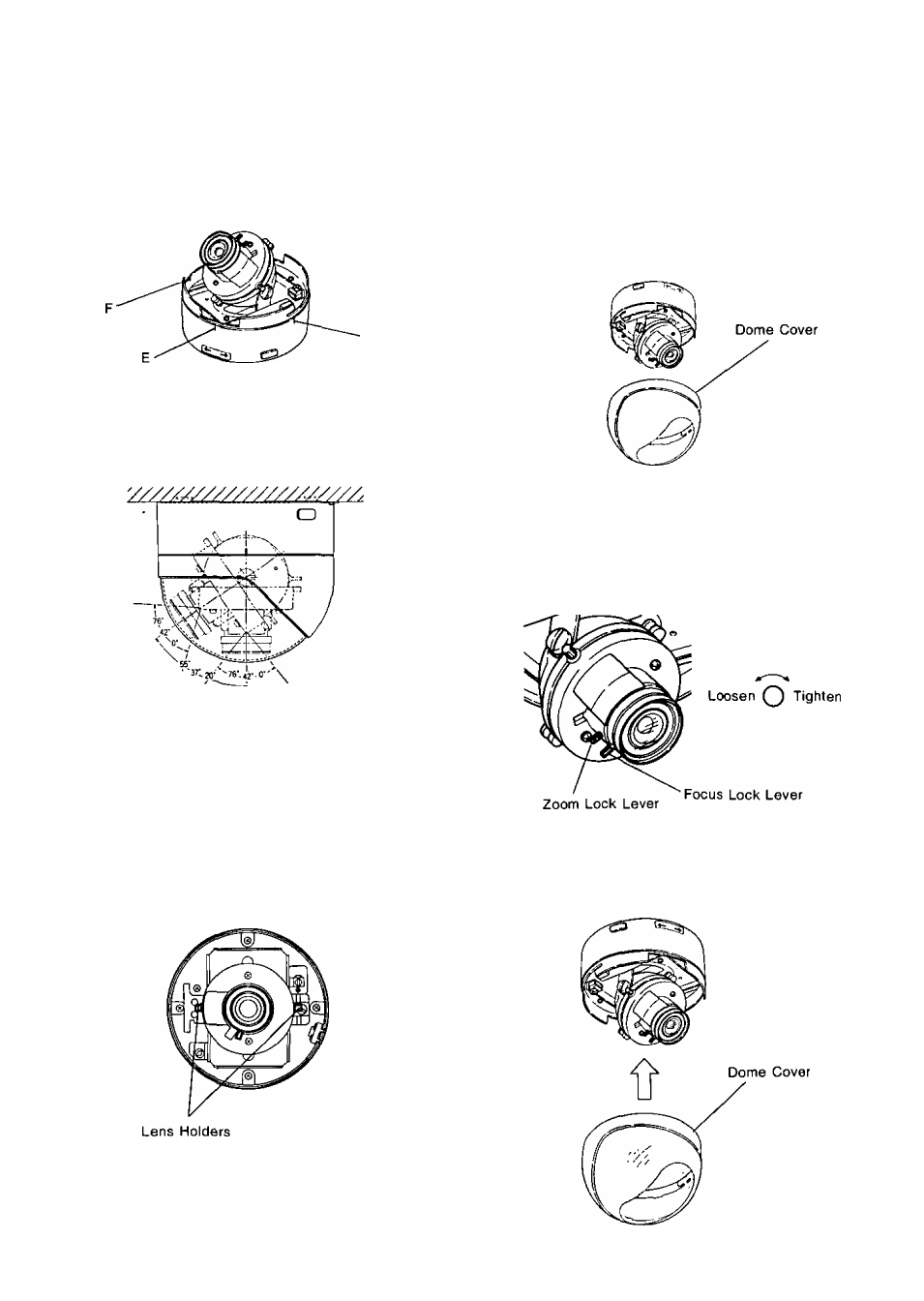

ADJUSTMENT

1. Panning

The “E" line on the Panning Table can move be

tween the "F" and ‘'G" lines.

2. Tilting of the camera

Tilting angle is shown below.

Note : The adjustment for picture tilt is normally re

quired. (refer to the item 3 of ADJUSTMENT
on page 7)

4. Focusing

Precaution :The focus adjustment should be done

at the same time of the Camera Angle

Adjustment.

4-1

.Remove the Dome Cover (13) from the camera.
(Refer to item 2-1 of INSTALLATION on Page 5)

4-2.Loosen the Zoom Lock Lever.

4“3.Set the angular field of view according to the

scene desired.

4"4.After setting the angular field of view, tighten

the Zoom Lock Lever.

4"5.Loosen the Focus Lock Lever.

3. Picture Tilt

Loosen the two Lens Holders (12) and adjust the

picture tilt by turning the Camera Head (9).

4"6.Set the correct focus by turning the Focus Ring

(

4-7. After setting the correct focus, tighten the Focus

Lock Lever.

-7-
