8. Panning Table
This is used to adjust the Right/Lett Angle of the
camera.
9. Camera Head
This is used to adjust the Up/Down Angle of the
camera,
10. Focus Ring
This is used to adjust the focus.
11. Zoom Ring
This is used to adjust the angle of view.
12. Lens Holders
These are used to adjust the picture tilt.
13. Dome Cover
This cover is used to protect the camera head.
14. Microphone Holes
15. Hooks
These are used to mount this unit to the Camera
Fixing Angle.
16. F-socket
This socket is connected with the F-plug (18) on
the Camera Fixing Angle.
17. Coaxial Cable Clamp
18. F-plug (Refer to the ADSUTMENT on Page 7 for
details)
This plug is used to connect with the F-socket (16)
on the camera head.
19. Video Output Terminal
This terminal is used to connect the coaxial cable
between the camera and the Camera Drive Unit
WV-PS11A , Colour Video Monitor WV-CM110A or
the equivalent,
BLC (Back Light Compensation) Description
When strong, unwanted background lighting inter­
feres with the clarity of important scene objects, turn
the BLC On/Off Switch (2) to the ON position.
Cautions : 1. Setting the BLC On / Off Switch to the
“OFF" position is recommended when
using a pan/tilt head or if the sconce
object has rapid changes in illumina­
tion, since the speed of lens iris becom­
es slow in the "ON” position,
2. If the desired scene objects are not in
the center of the picture, back light
compensation may not work effectively.

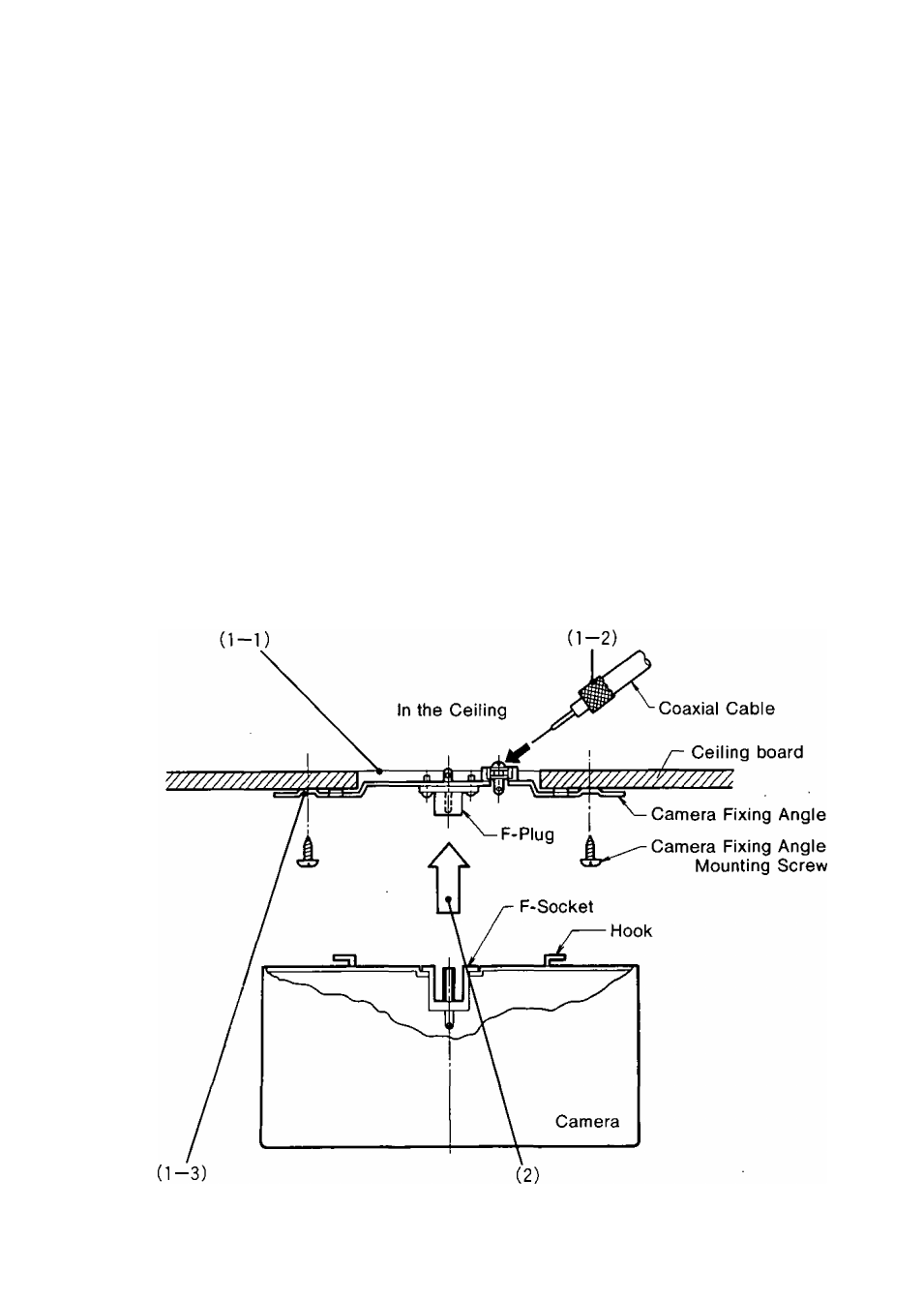

INSTALLATION
