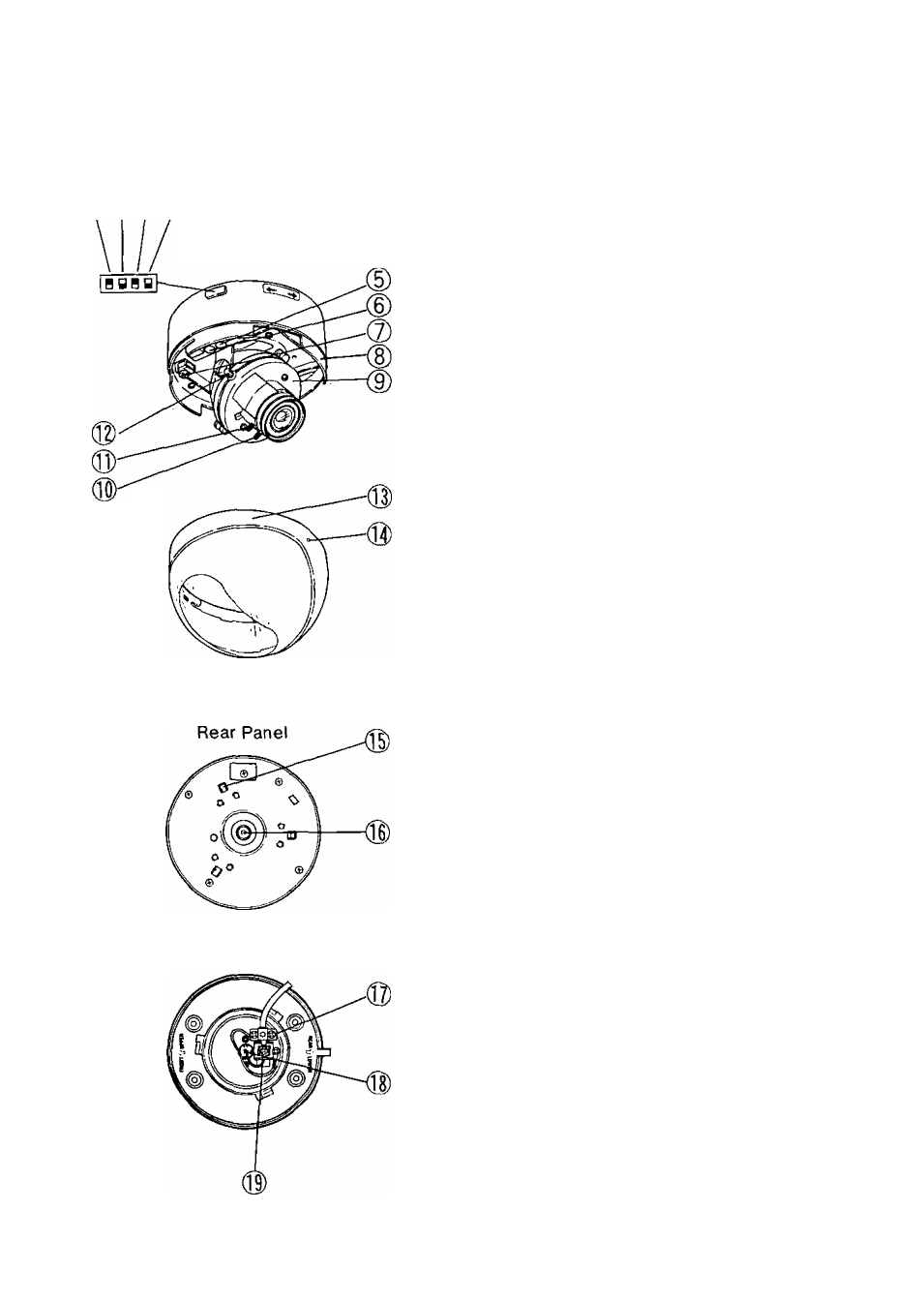

MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS
®(|)(S)0
1. AGC ON/OFF Switch (AGC ON/OFF)
This switch is used to select the gain of the video
amplifier as follows.
ON :
The lens iris is fully operated at low light
shooting, a clear picture is obtained by
automatic increase of the gain.
OFF : A natural and low-noise picture is obtained
under a low light condition.
Note : This switch is preset to the ON position at
the factory.
2. Back Light On/OH Switch (BLC ON/OFF)
When back light affects the picture, set this switch
to ON position for a clear picture. See page 4 for
more details.
3. Picture Detail Selection Switch
(PICTURE SHARP/SOFT)
This switch is used to select the sharpness of the
picture.
SHARP : The sharp picture is obtained,
SOFT : The soft picture is obtained.
Notes ; 1 .When connecting the WJ-450 Color Quad
Unit to this camera, set this switch to the
SOFT position.
2.This switch is preset to the SHARP
position at the factory.
4. Microphone On/OH Switch
(MIC ON/OFF)
By setting this switch to the ON position, the audio
function can be obtained.
5. Audio Control (AUDIO, MAX/MIN)
The audio level can be adjusted by turning this
control.
This is preset to the MAX position at the factory.
Camera Fixing Angle
6. Auto Light Control (ALC, H / L)
This control should be used only for shooting the
object in unusual lighting condition.
Do not adjust this control except the above condi­
tion.
Note : To use this control, be sure to set the Back
Light On / Off Switch (2) to the OFF posi­
tion,
7. Video Output Jack (VIDEO OUT)
This jack is used to adjust the angular field of view
or focus while observing the picture on the moni­
tor.
-3-
