Optional Equipment Connection and Operation

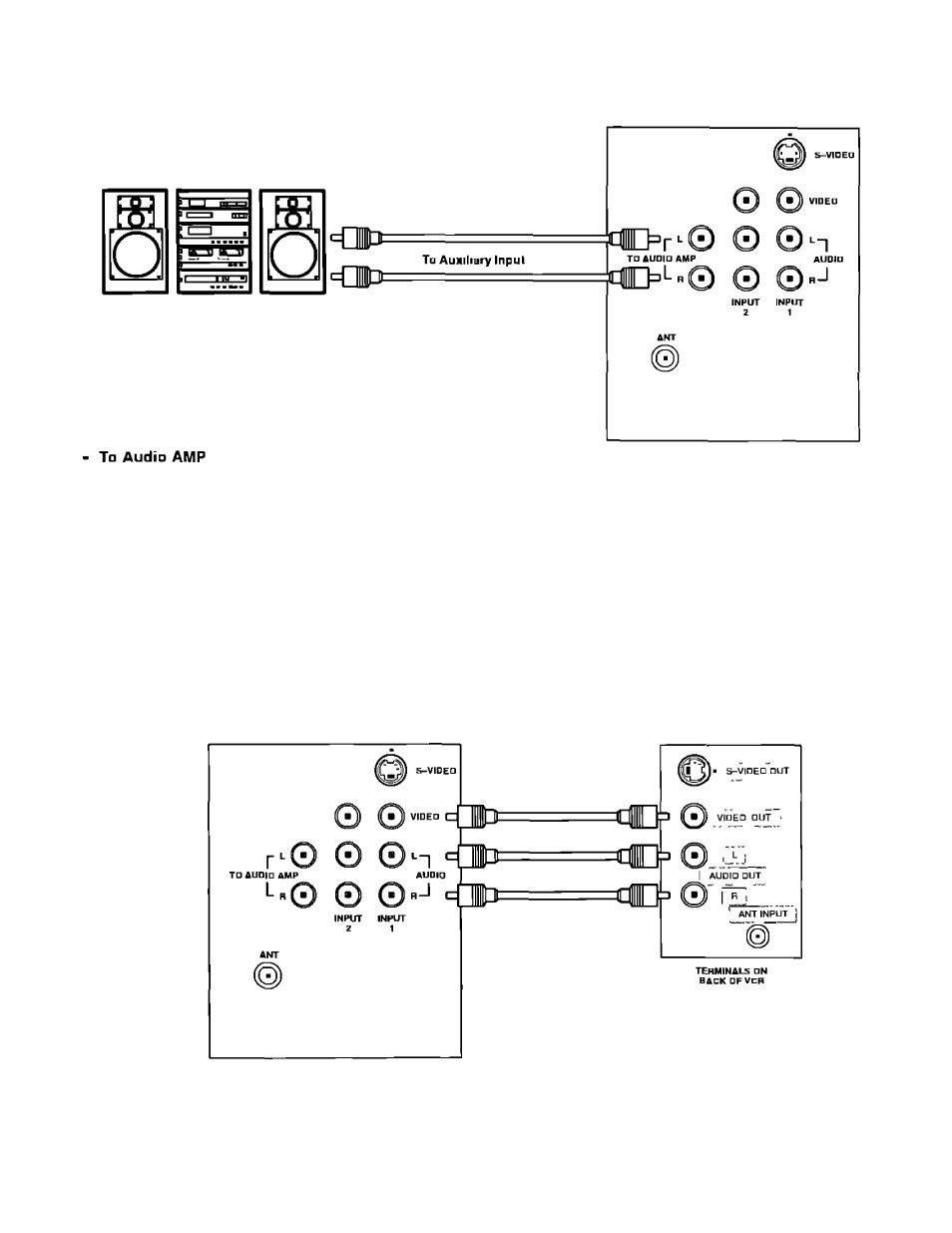

To Audio AMP Connection (Stereo)
TERMINALS ON BACK OF RECEIVER
Connect to an external audio amp auxiliary input for monitoring sound through a stereo system
NOTE ‘TO AUDIO AMP" terminals cannot be used for external speakers
Adjustment - When an audio amp is connected to TO AUDIO AMP" terminals
1 Select INT SPEAKERS “ON^' Mode (Refer to the Audio Menu |TV] Speakers section )
Set volume of audio amp to near minimum
Adjust volume of TV to desired listening level
Adjust volume of audio amp to match the level of TV
Select INT SPEAKERS “OFF" Mode (Refer to the Audio Menu [TV] Speakers section )
Audio bass, treble, balance, volume and mute can now be controlled by the TV Remote Control
Video/Audio Connection
VCR or VIDEO DISC
TERMINALS ON BACK OF RECEIVER
Operation
1
Connect optional equipment as shown to INPUT 1 or 2
2
Select the desired Video mode by pressing the TVA/IDEO button (or refer to the Input Selection Menu)
NOTE You must select the same Video Mode that the equipment is connected to
3
Operate optional equipment (VCR-VDP) as instructed in Optional Equipment Manual
- 4 2 -
