PHONES
This is the output for the operator's stereo headphones.
Low impedance type stereo headphones shouid be
used. Any CUE'd signal may be monitored at this out
put.
1 AUX OUT
1. 2
( + 4)
1 CUE OUT L
( + 4)
1 CUE OUT R
( + 4)
n TB OUT
( M )

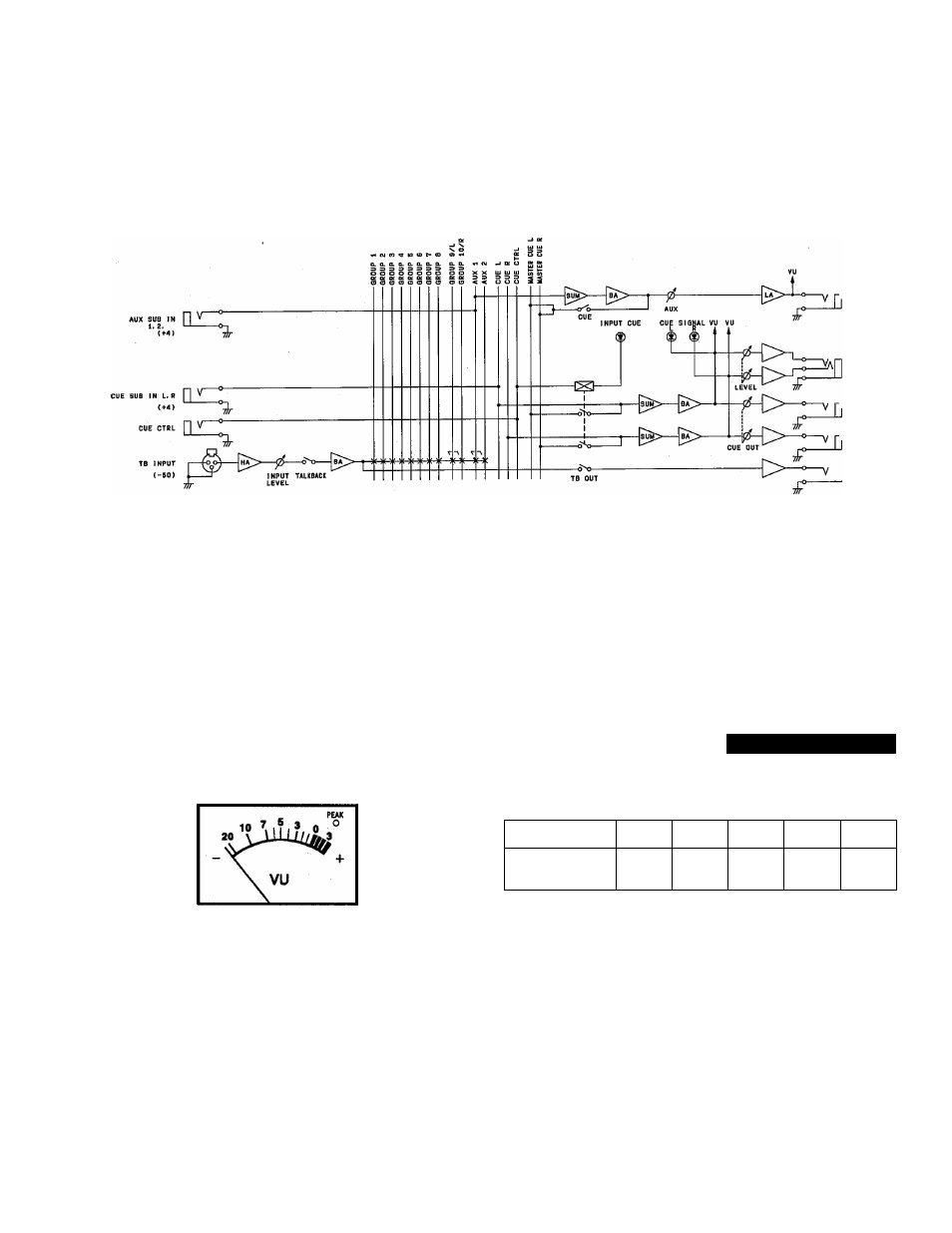

VU METER SECTION
VU METER Reading
-20VU
-10VU
-5VU
OVU
+3VU
Output level
-16 dB
(0.123V)
-6
dB
(0.388V)
-1 dB
(0.691V)
+4 dB
(1.23V)
+7 dB
(1.74V)
The large, illuminated VU meters are all equipped with buil
t-in peak LED indicators. The meters accurately indicate
post-fader output levels of group outputs 1—10. Using the
AUX-CUE METER select switch, either the AUX OUT, or
CUE signal levels can be indicated. When the meters read 0
VU, nominal output levels (+4 dB) are obtained. The peak
indicators light up 3 dB before signal clipping occurs.
A signal which on the VU meter has an acceptable average
level may well have high peaks. The peak indicators will
show this instantaneously, allowing the operator to reduce
the signal level accordingly, to avoid distortion on tran
sients such as drum sounds or synthesizer attacks.
The cue signal is metered before the CUE OUT level con
trol, so this control has no effect on the meter reading.
