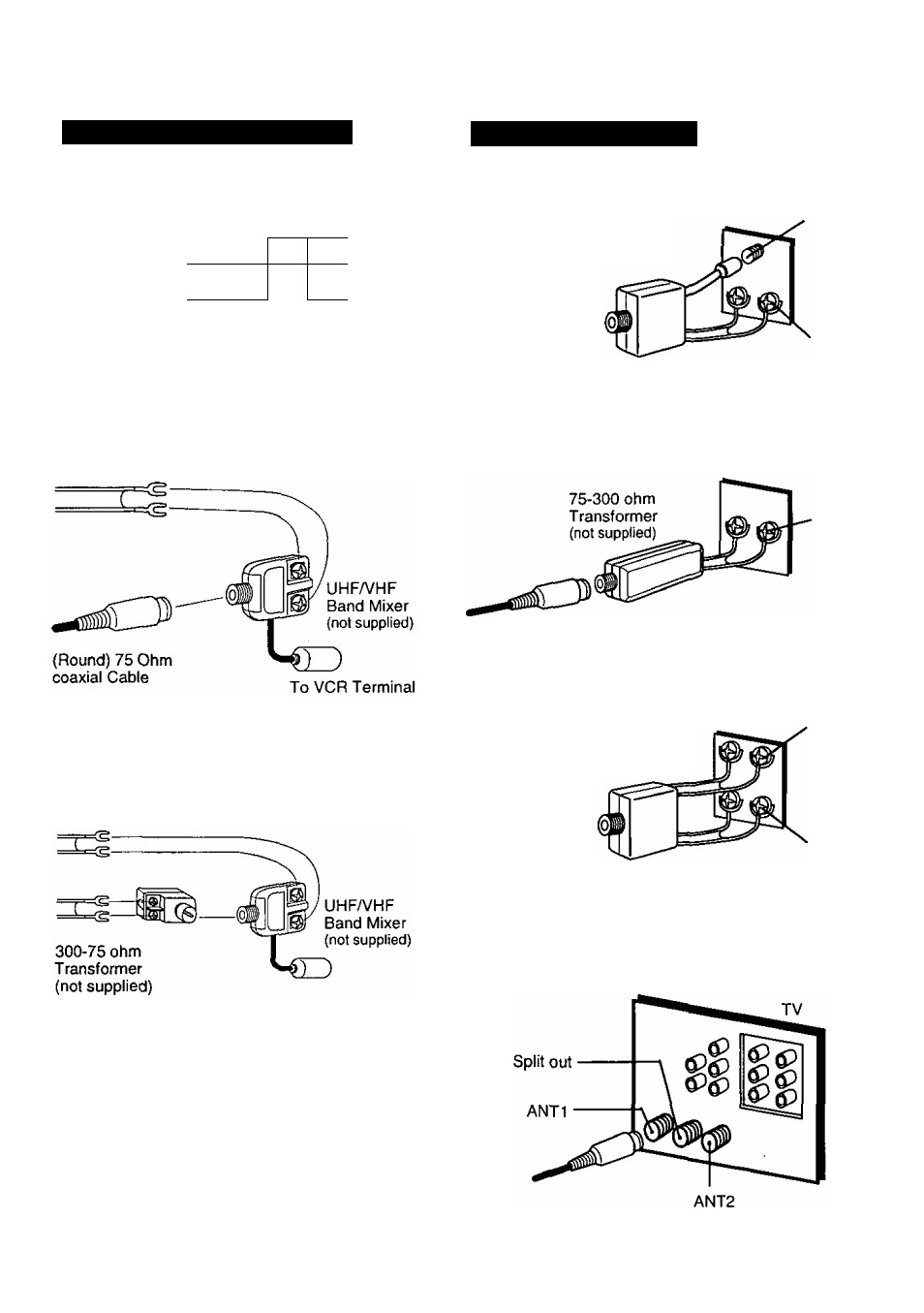

Between Antenna and VCR
Between VCR and TV
Case 1: Twin Lead Cable Only
To VCR Terminal
(Flat) Twin Lead
300 Ohm Cable
r=f
jmt
i Q
300-75 ohm Transiormer
(not supplied)
Case 1: Screw & Plug Type Terminal
UHF/VHF Band
Separator
(not supplied)
RF Coaxial Cable
VHF
UHF
Case 2: Twin Lead & Coaxial Cables
Case 3: Two Twin Lead Cabies
To VCR Terminal
If your TV has both post and plug-type VHF
terminals, the post connection is recommended to
minimize signal loss.
Case 2: Screw Type Terminai
TV
UHFA/HF Band
Separator
(not supplied)
VHF
or
UHF
Case 3: Doubie Screw Type Terminai
TV
VHF
UHF
Case 4: Complex TV Terminal
TERMINALS ON BACK OF TV SET
Connect to one of the ANT terminals and select the
same antenna number on the TV.
