Connections

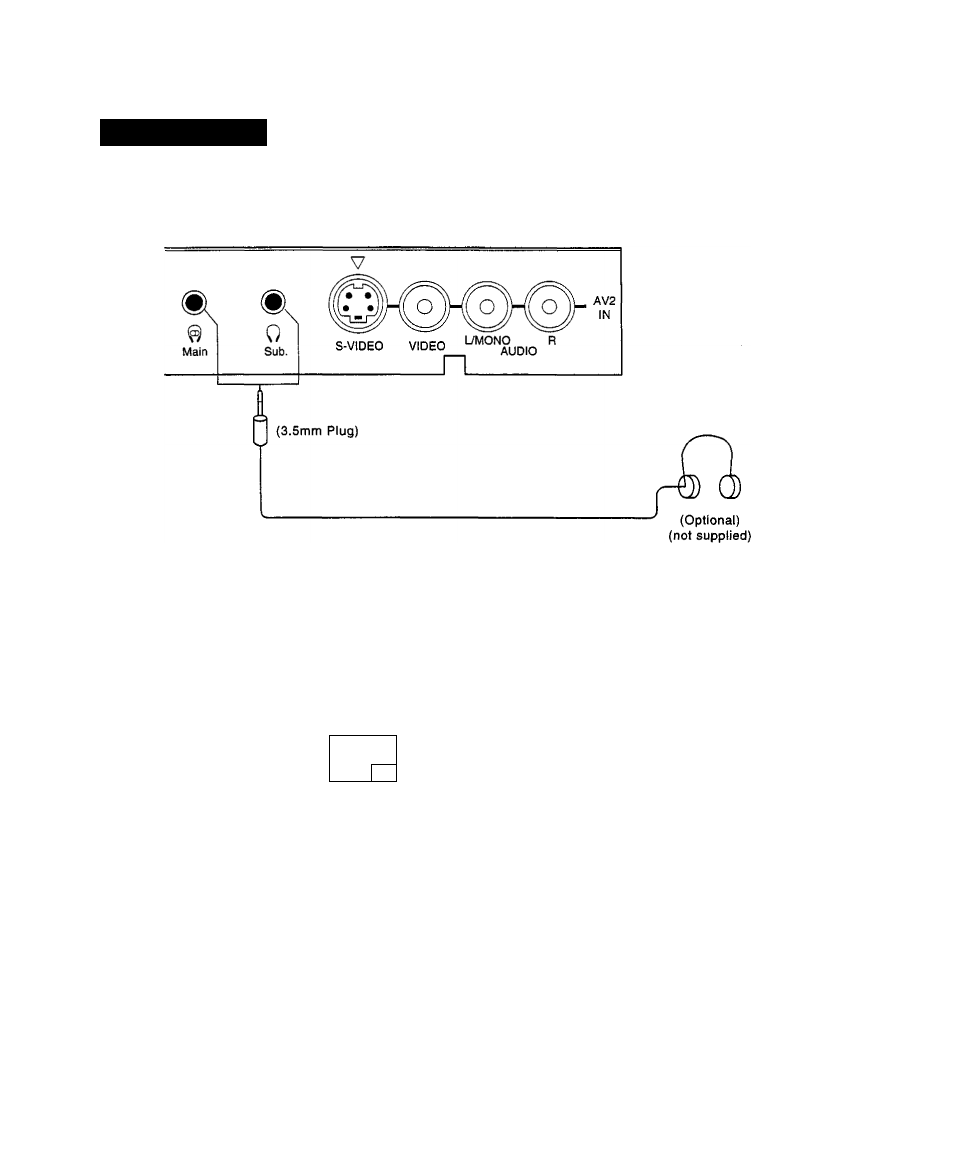

Connecting Headphones
Connect headphones as follows.
You can listen to sound from each of the headphones plugs as shown below.
Screen condition
Single
picture/
Teletext
Picture in Picture
Picture in Picture/
CHANGE
A
B
B
H
Speaker
Sound
A
(Stereo)
A
(Stereo)
B
(Stereo)
Main
Headphones
A
(Stereo)
A
(Stereo)
B
(Stereo)
Sub
Headphones
A
(Mono)
B
(Mono)
■ A
(Mono)
Monitor
Output
A
(Stereo)
A
(Stereo)
B
(Stereo)
Main Headphones plug:
When a Main Headphones plug is inserted into the Headphones socket, ali speakers will be automatically disconnected;
only the Main Headphones will function.
Use Volume Up “+” or Down button to control volume level.
Sub Headphones plug:
For the sub Headphones volume control, refer to page 37.
1 - 7
