CONNECTION WITH MULTIPLE CAMERAS (COLOR LOCK MODE)

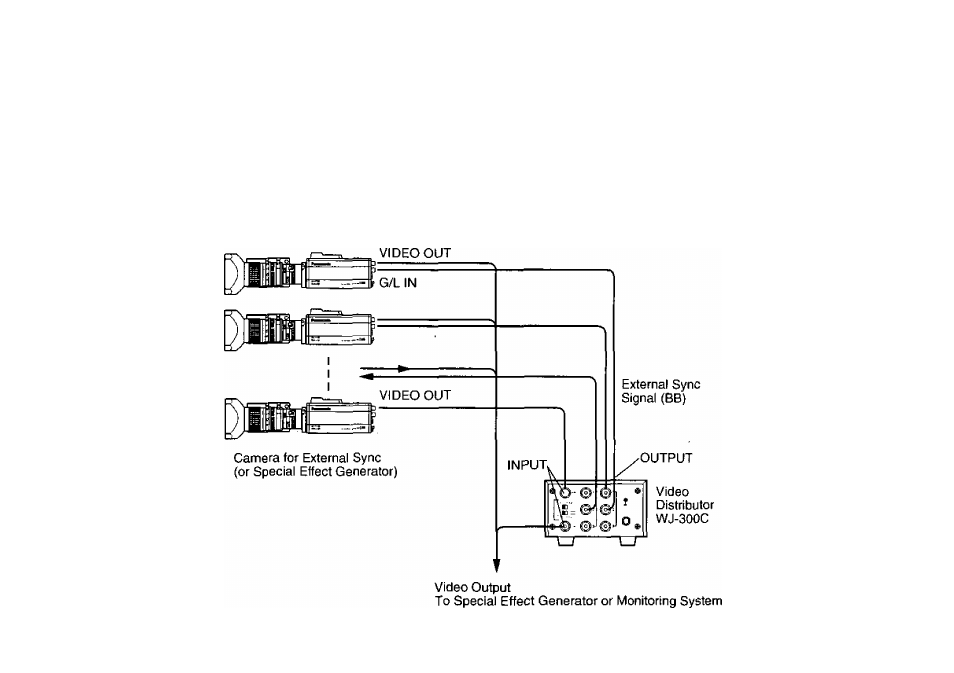

An example of connection for VBS/BB input (Color lock

mode).
One of the multiple cameras is used as the source of ref

erence signals,
Supply a synchronizing signal (BB) to the G/L Input
Connectors of each cameras.

CAMERA

• Do not switch off the camera used for supplying the

reference signals,

• Adjust the SC-phase and H-phase at the Video

Output Connector,
