2. Camera Mounting

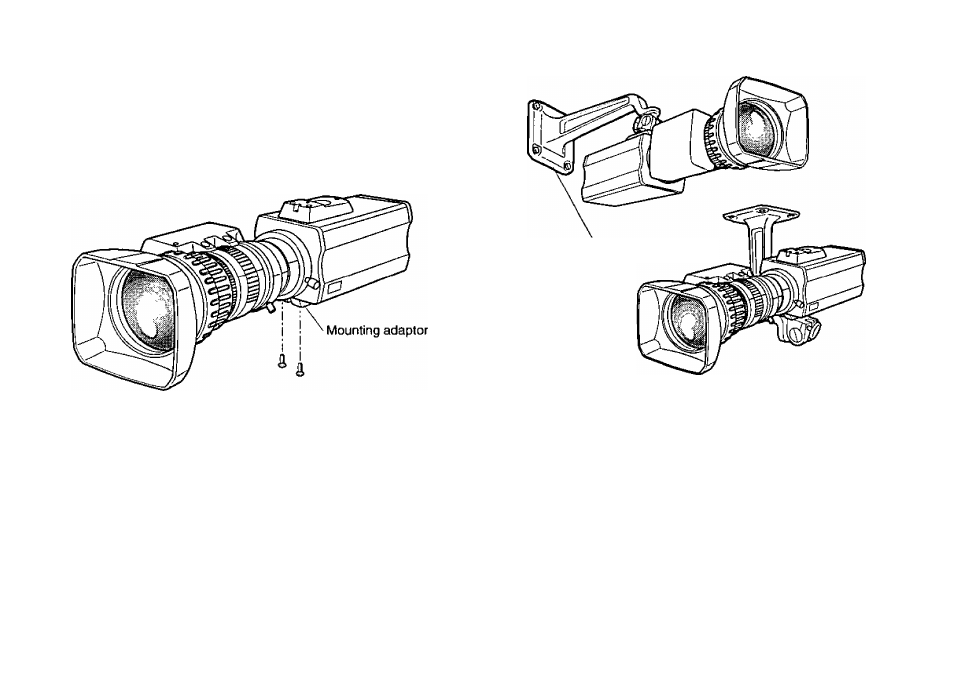

1. To mount a camera on a pan/tilt head or a mounting

bracket or the like, attach the mounting adaptor
(supplied) to the bottom of the camera in case of

bottom mounting.

Camera Mounting Bracket {WV-831)

2. Fix the camera mounting base, pan/tilt unit, and tri

pod securely in the screw hole (1/4-20UNC) of the

camera or the mounting adaptor.

3. If the camera cannot be securely fixed, mount the

camera on a mounting bracket or the like with the

supplied rubber sheet between the camera and it.
