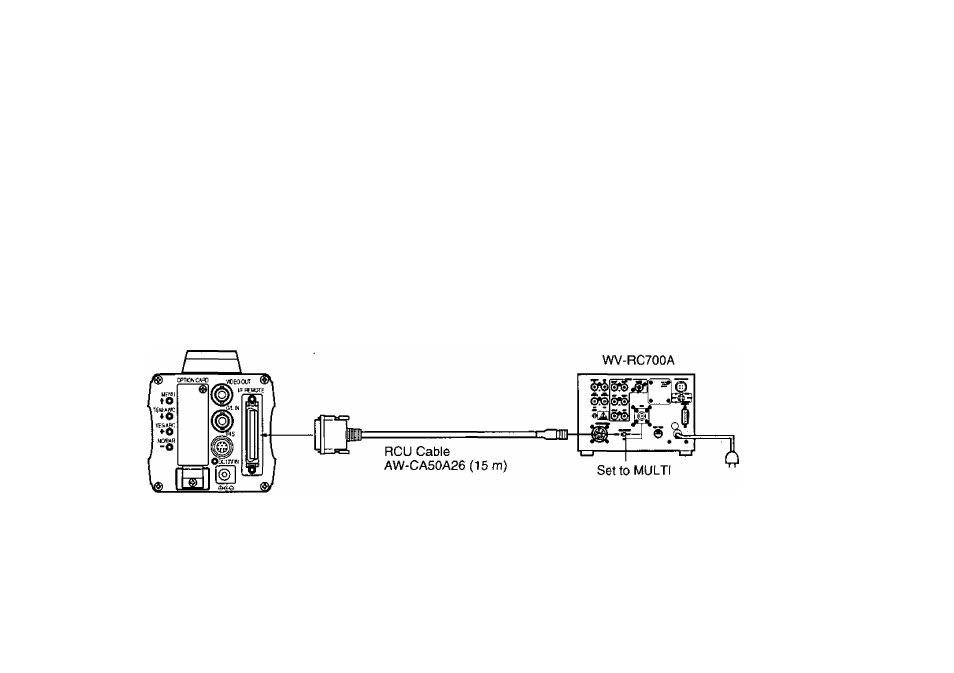

CONNECTION OF A REMOTE CONTROL UNIT (RCU)

Connection to the RCU {WV-RC700A, WV-RC550) is
made through the optional RCU cable AW-CA50A26.

Turn RCU power off before connecting cables.

2. Set the cable selection switch of the RCU to MULTI

{in case of using the WV-RC700A)

3. Connect the 50-pin connector of the RCU cable to

the l/F REMOTE Connector of the camera.

4. Turn RCU power on and the power indicator lamp

will light. The camera can now be remote con
trolled by the RCU,

Notes:

• The maximum extension distance between the

camera and WV-RC700A is 300 m. The maximum

extension distance between the camera and WV-

RC550 is 300 m,

• Use the following options for cable extension.

Studio Cable WV-CA26U15 (15 m/50 ft)

WV-CA26U30 (30 m/100 ft)
WV-CA26U100 (100 m/330 ft)

Cable Joint Adaptor

WV-CA26T26
