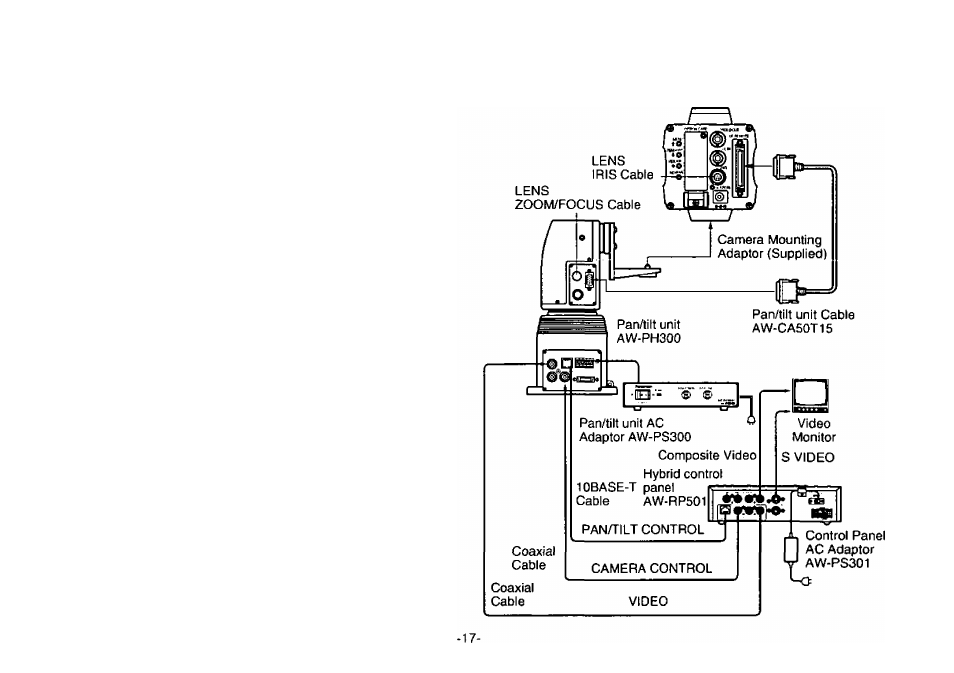

CONNECTION OF DEVICES WITH CAMERA PAN/TILT CONTROL SYSTEM
To connect the pan/titi unit to the camera, use the
pan/tilt unit cable AW-CA50T15.
Power is supplied from the pan/tilt unit,
1. Before connecting them, press the power
switch on the pan/tilt unit AC adaptor and the
ON/OFF switch on the hybrid control panel in
the OFF position, respectively,
2. Fix the camera securely to the pan/tilt unit using
the mounting adaptor,
3. Connect the 50-pin end of the pan/tilt unit cable
to the l/F Remote connector on the camera.
Connect the 15-pin end of the cable to the
pan/tilt unit,
4. Connect the pan/tilt unit to the hybrid control
panel with the 10BASE-T cable and coaxial
cable. For details, refer to the manual for the
hybrid control pane),
5. First switch on the pan/tilt unit AC adaptor, then
press the ON/OFF switch on the hybrid control
panel in the ON position. The camera and pan/
tilt unit can now be controlled from the hybrid
control panel.
