B. standard Configuration With Audio
•

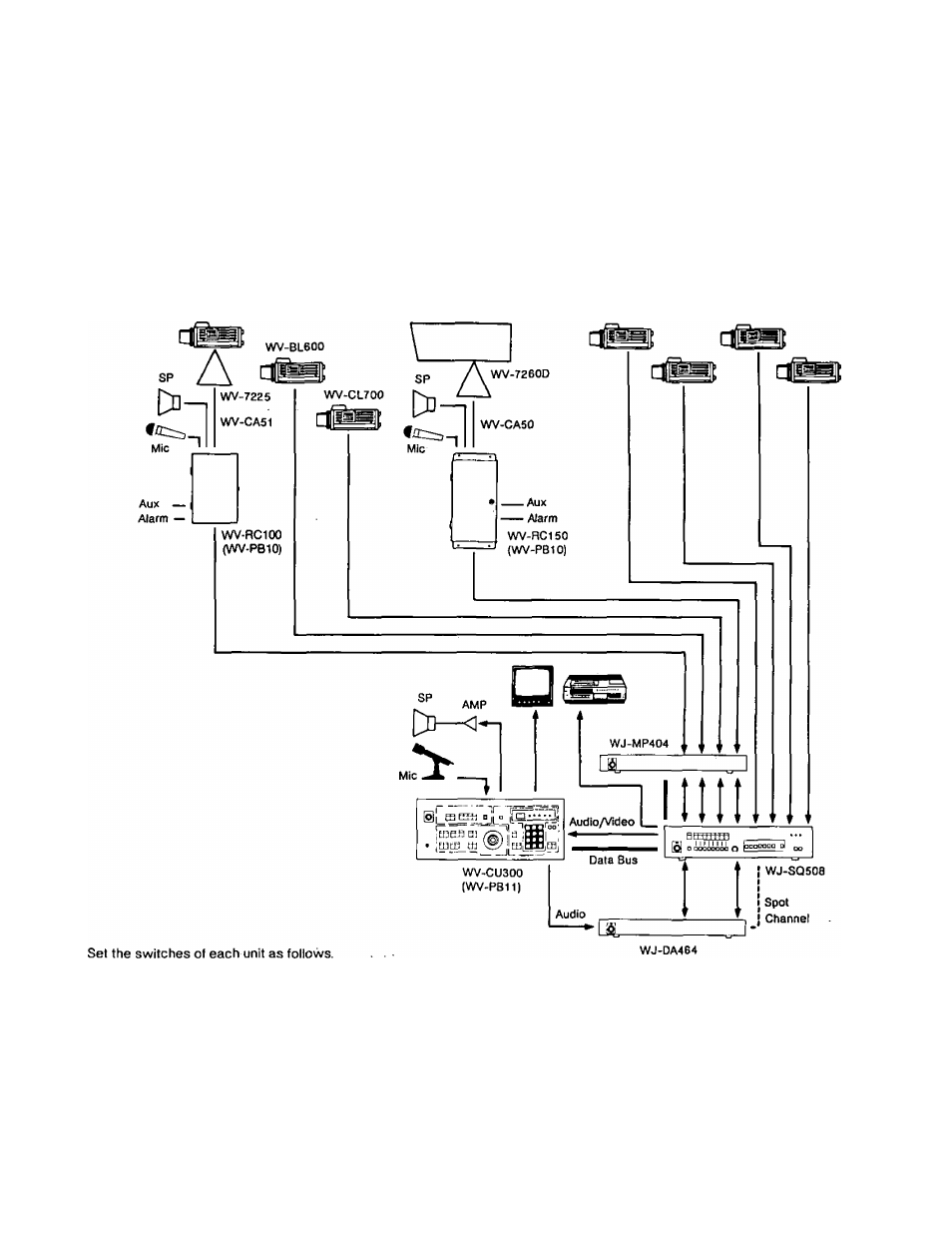

This system offers video switching control {by
WJ-SQ508), camera function control plus control of
optional accessories (by WV-CU300 and WJ-MP404)
and two-way audio communication between camera
site and operator.
•
Eight cameras are used in this system. Four cameras
have their functions, and optional accessories as well,
controlled through WJ-MP404.
•
It is recommended to install WJ-DA464 in between
WV-CU300 and WJ-SQ508.
WV-BL600
WV-7140/WV-7141
WV-BL200 or equivalent
WV-CU300:
SEQNO:
STATION ................................. 1
UNIT .......................................... 1
CONTROLLER UNIT NO . . . .
1
DATA CLOCK .:.................. RCV
WJ-MP404:
DATA CLOCK ................... SND
CH SELECT
................ 1-4CH
UNIT NO ................................................ 1
WJ-SQ508;
MASTER/SLAVE . . . . MASTER
STATION NO
........................
1
UNIT NO ................................... 1
