SYSTEM APPLICATIONS
Caution:
1 . Make sure that the cable length between the camera
site and the end of System Controller WV-CU300
should be less than 3,000 ft with RG-59U, BELDEN
9259 or equivalent cable.
2, The cable length between the Sequential Switcher
WJ-SQ508 and the System Controller WV-CU300
should not be long due to no cable-loss compensator
on the System Controller.

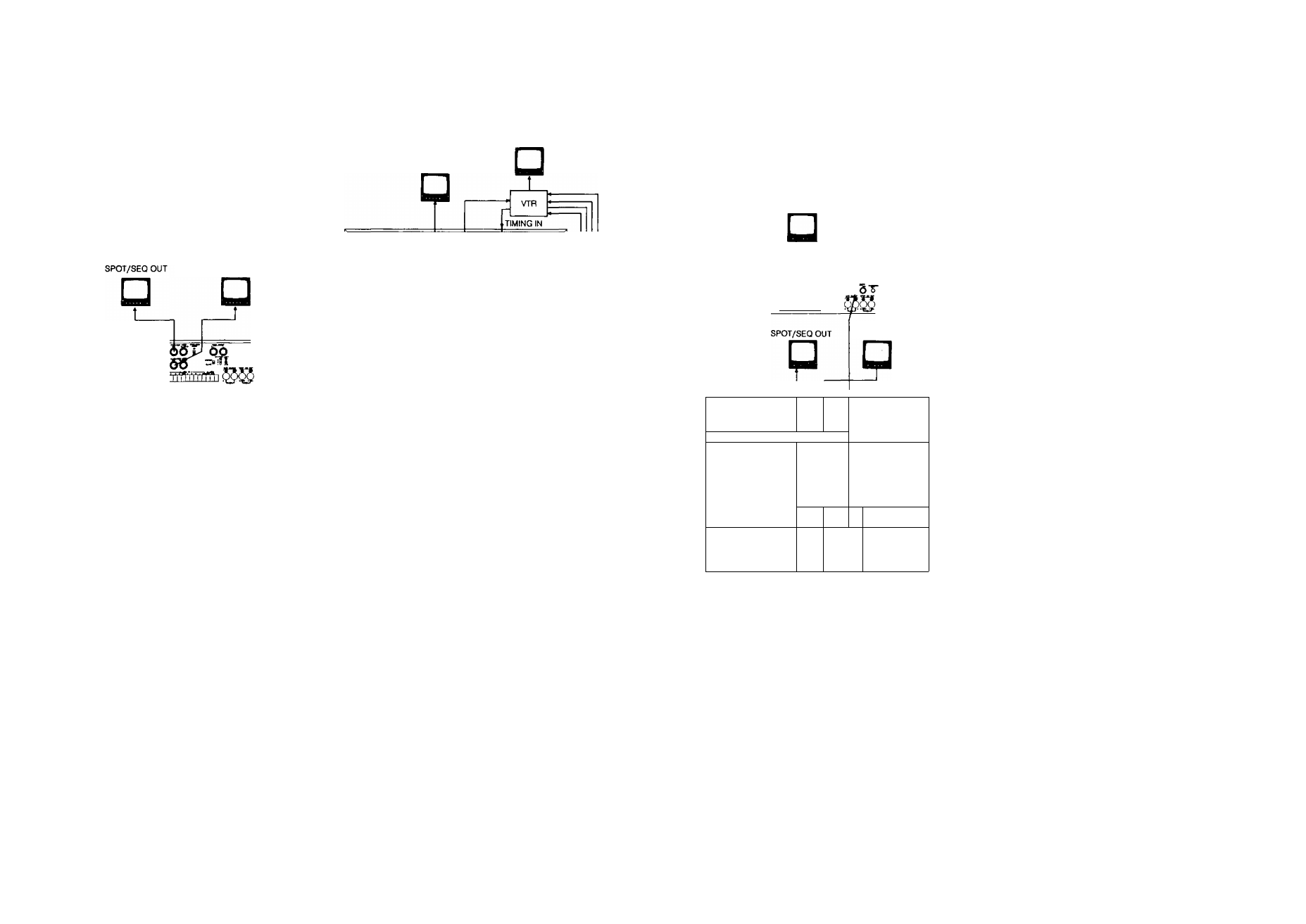

A Basic Application
1. Single WJ-SQ508 without VTR
ALARM/SEQ OUT
6^00000
(a)
(b)
(c)
(d)
(e)
(0
(
9
)
(h)
Sequence time: Set by the Dwell Time Control (5) or
Program Switch (20),
Controls:
( 1 ) Master/Slave Switch (27) to Master position,
(2) Station Number Switch (29) & Unit Number Switch
(30) are not specified.
(3) Spot/Sequence Audio Switch (26) to OFF position.
Normal sequence mode:
( 1 ) SPOT/SEQ OUT —► switched by Dwell Time
Control (5).
(2) ALARM/SEQ OUT —+ switched by Dwell Time
Control (5).
Program sequence mode:
(
1 ) SPOT/SEQ OUT —» switched by Program Switch
( 20 ).
(2) ALARM/SEQ OUT —> switched by Program Switch
( 20 ).
Spot mode:
( 1 ) SPOT/SEQ OUT spot mode
(2) ALARM/SEQ OUT —+ sequential mode.
Single alarm mode:
(
1 ) SPOT/SEQ OUT —> continues previous operation.
(2) ALARM/SEQ OUT —» fixed to the alarmed picture.
Multiple alarm mode:
( 1 ) SPOT/SEQ OUT continues previous operation.
(2) ALARM/SEQ OUT —» starts sequencing the
alarmed pictures outonce every second.
Quick Scan alarm mode:
( 1 ) SPOT/SEQ OUT continues previous operation.
(2) ALARM/SEQ OUT —r starts sequencing all
pictures in QS-TIME.
2. Single WJ-SQ508 with VTR
ALARM/SEQ OUT
SPOT/SEQ OUT
ooodóooboSTj
óoodóoDoSo ®
ALARM OUT
RECOVER IN
RESET OUT
GND
(i) Quick Scan alarm mode:
(1) SPOT/SEQ OUT
i. starts sequencing out once every second
when the unit was in SEQ mode.
ii. stays spot mode when the unit was in SPOT
mode.
(2) ALARM/SEQ OUT —» start sequencing out all
pictures in QS- TIME.
3. Parallel connection without VTR
SPOT/SEQ OUT ALARM/SEQ OUT
(A)
D-ODDbOO© Sj5T[§5
óoo©уo©у^_ ®
MTrrnTriTi
ALARM/SEQ OUT
(a)
(b)
( 2 )
(3)
(4)
(c)
(d)
(e)
(f)
(g)
(h)
Sequence time: Set by timing pulse from VTR
Controls:
( 1 ) Master/Slave Switch (27) to Master position.
Station Number Switch (29) & Unit Number Switch
(30) are not specified.
Dwell Time Control (5) to EXT position.
Spot/Sequence Audio Switch (26) to OFF position.
Sequence stops when the power of VTR is turned off.
Normal sequence mode:
( 1 ) SPOT/SEQ OUT —» switched by timing pulse of
VTR.
(2) ALARM/SEQ OUT —> switched by timing pulse of
VTR.
Program sequence mode:
(1) SPOT/SEQ OUT switched by timing pulse of
VTR through Program Switch (20).
( 2 ) ALARM/SEQ OUT switched by timing pulse of
VTR through Program Switch (20).
Spot mode:
( 1 ) SPOT/SEQ OUT —> spot mode
(2) ALARM/SEQ OUT —* sequential mode.
Single alarm mode:
(1) SPOT/SEQ OUT
i. starts sequencing out once every second
when the unit was in SEQ mode.
ii. stays spot mode when the unit was in SPOT
mode.
(2) ALARM/SEQ OUT —> fixed to the alarmed picture.
Multiple alarm mode:
(
1 ) SPOT/SEQ OUT
i. starts sequencing out once every second
when the unit was in SEQ mode,
ii. stays spot mode when the unit was in SPOT
mode,
ALARM/SEO OUT —» starts sequencing the
alarmed pictures out once every second.
ó.oodbboo¿
bOOÓÓODÓil
!T5T
S 8 T
1 LlllJ i 1 1 1 ^
SPOT/ SEQ OUT
□
^
II
ALARM/SEQ OUT
p
(C)
óJooobooót
úooooooól
5^KíSíííSi]TíTtTiTi
br
TiTiTr
:^5< ■
(d) -Normal sequence mode:
(1) SPOT/SEQ OUT All WJ-SQ508 are switched
by the Dwell Time Control (5) of (A) WJ-SQ508.
(2) ALARM/SEQ OUT All WJ-SQ508 are switched
by Dwell Time Control (5) of (A) WJ-SQ508.
(e) Program sequence mode:
(1) SPOT/SEQ OUT All WJ-SQ508 are switched
by Dwell Time Control (5) of (A) WJ-SQ508 with
programmed sequence order.
( 2 ) ALARM/SEQ OUT ^ All WJ-SQ508 are switched
by Dwell Time Control (5) of (A) WJ-SQ508 with
programmed sequence order.
(f) Spot mode:
( 1 ) SPOT/SEQ OUT WJ-SQ508 in spot mode
shows the spot picture. Other WJ-SQ508 are
synchronized to the timing pulse of (A) WJ-SQ508.
(2) ALARM/SEQ OUT WJ-SQ508 in spot mode
and the other WJ- SQ508 are synchronized to the
timing pulse of (A) WJ-SQ508.
(g) Single alarm mode:
( 1 ) SPOT/SEQ OUT - When the unit (B) is alarmed,
i. the unit (B) and (C) starts sequence in every
one second.
ii. the unit (A) continues previous operation.
(2) ALARM/SEQ OUT —» WJ-SQ508 in alarmed mode
fixed to the alarmed picture. Other WJ-SQ508
continue the sequence mode.
(h) Multiple alarm mode:
(1) SPOT/SEQ OUT - When the unit (B) is alarmed,
i. the unit (B) and (C) starts sequence in every
one second.
ii. the unit (A) continues previous operation.
(2) ALARM/SEQ OUT -+ Alarmed channels of
alarmed WJ-SQ508 start sequencing out once
every second.
(i) Quick Scan alarm mode:
( 1 ) SPOT/SEQ OUT - When the unit (B) is alarmed,
i. the unit (B) and (C) starts sequence out
second.
ii. the unit (A) continues previous a operation.
(2) ALARM/SEQ OUT The alarmed WJ-SQ508
starts to sequence out all pictures in QS-TIME.
Note:
The picture on each video monitor wilt not be
the same camera picture.
(a) Sequence time:
(B) (C) WJ-SQ508 are synchronized with (A) WJ-SQ508.
(b) Controls:
(1) Master/Slave Switch (27) to Master position for all
WJ-SQ508.
(2) Station Number Switch (29) & Unit Number Switch
(30) are not specified.
(3) Dwell Time Control (5) of (A) WJ-SQ508 to proper
position.
(4) Dwell Time Control (5) of (B) (C) to EXT position.
(5) Spot/Sequence Audio Switch (26) to OFF position.
(c) Sequencing of (C) WJ-SQ508 stops when the power
of (B) WJ-SQ508 is turned off due to no timing pulse
from (B) WJ-SQ508.
(
