Clearing a recording paper Jam
If a recording paper jams, the display will show one of two messages below. Remove the jammed recording
paper following either message.
PAPER JAMMED
A recording paper jammed near the head unit.
CHECK CASSETTE
A recording paper jammed near the paper cassette.

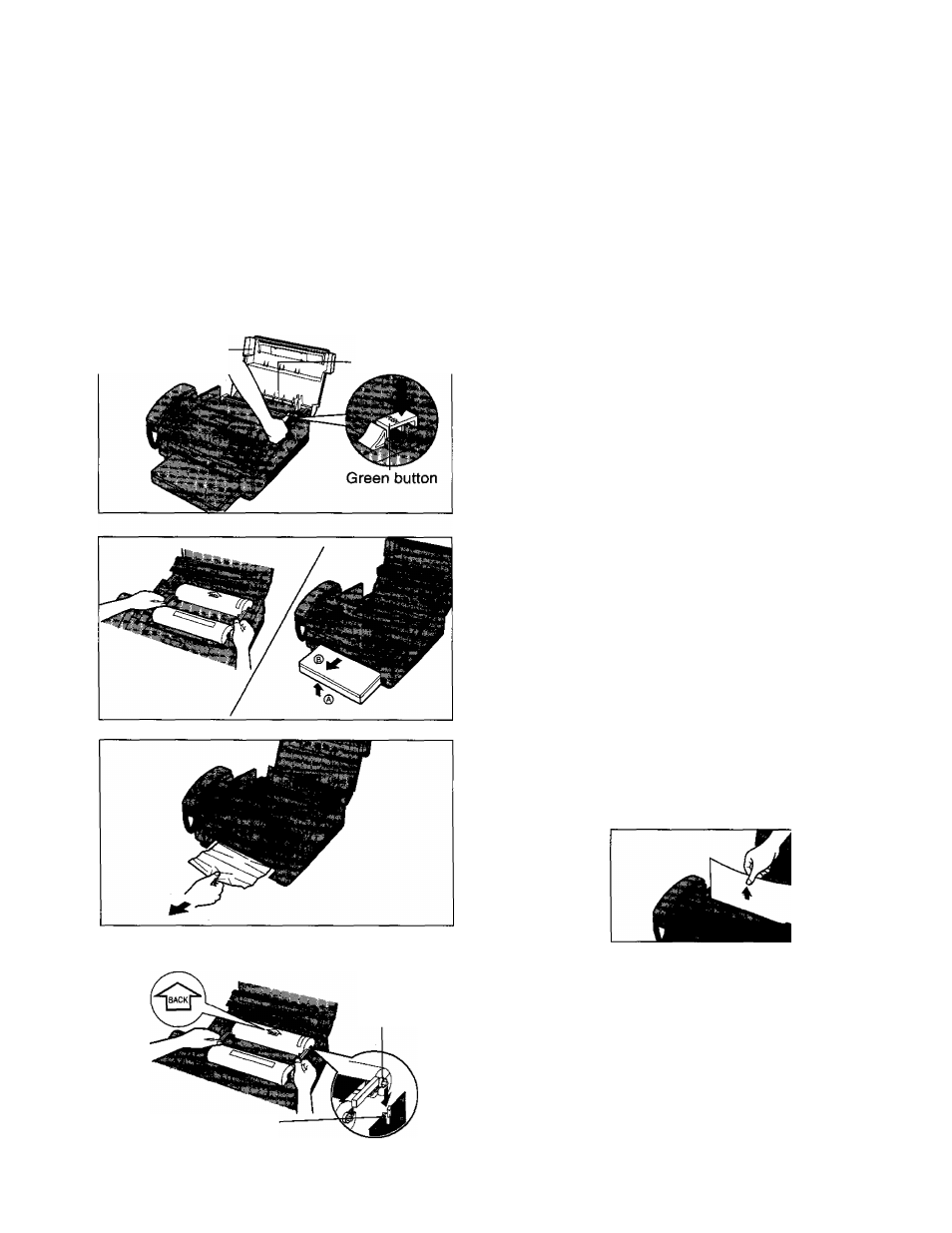

Removing a jammed recording paper near the head unit
1
Top cover
Head unit
Green gear
Green holder
Open the top cover.
3
4
Press the green button on the right marked
“PUSH” and lift up the head unit.
Remove the film cartridge.
Lift up the paper cassette slightly (®) and puli
it towards you to remove it (®).
Remove the jammed recording paper.
•If the jammed paper cannot be removed by
the way of the illustration to the left, then
remove it as below:
Place the “BACK” side of the cartridge into the
unit, by inserting the pins on the sides of the
green gears into the green holders. Then
lower the front of the cartridge into place.
•If the film is slack, tighten it by winding the
gears.
