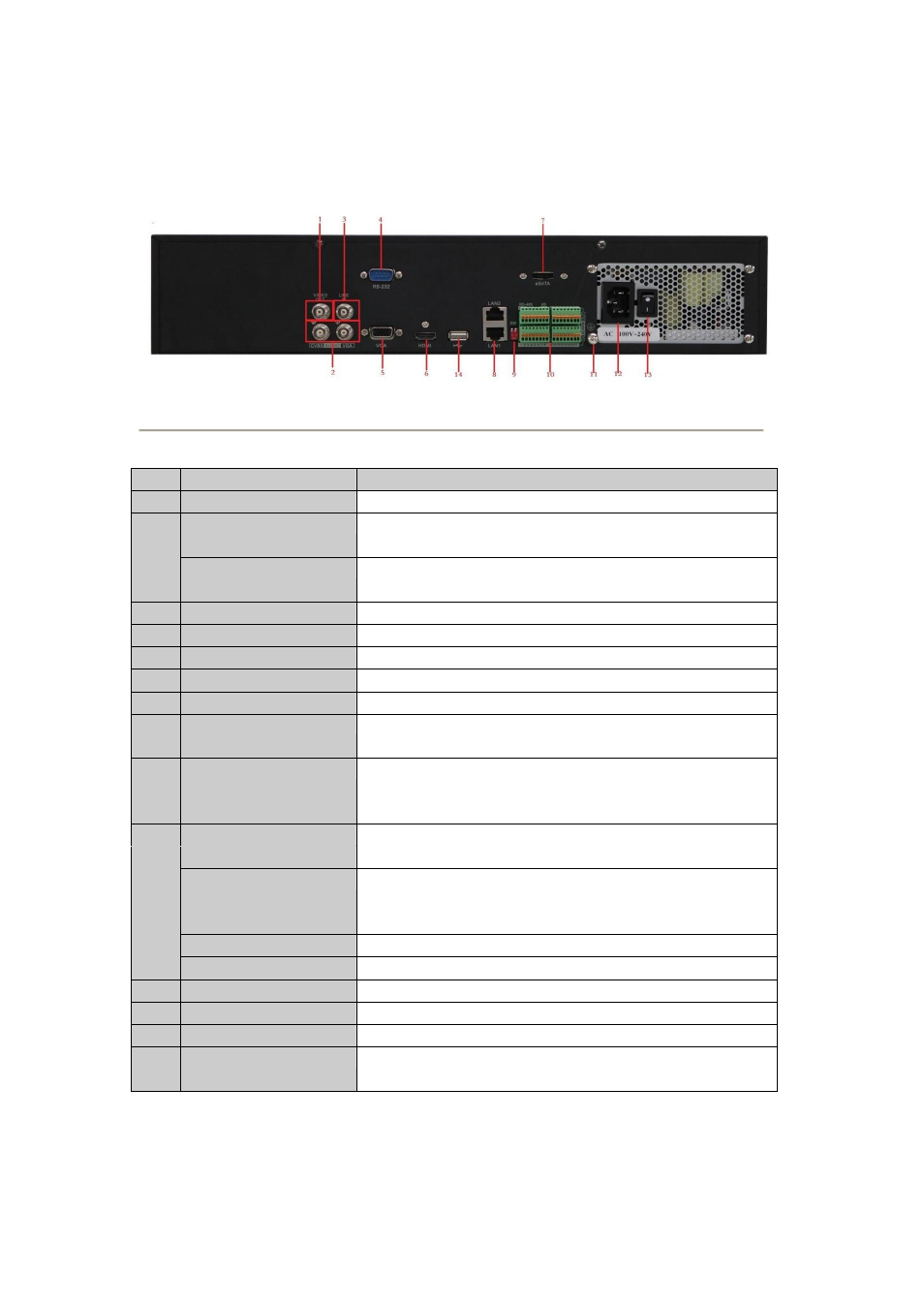

1.5 Rear Panel

Figure 1. 6 NVR-6064

Table 1. 7 Description of Rear Panel Interfaces

No.

Item

Description

1

VIDEO OUT

BNC connector for video output.

2

CVBS AUDIO OUT

RCA connector for audio output. This connector is synchronized with

CVBS video output.

VGA AUDIO OUT

RCA connector for audio output. This connector is synchronized with

VGA video output.

3

LINE IN

BNC connector for audio input.

4

RS-232 Interface

Connector for RS-232 devices.

5

VGA

DB9 connector for VGA output. Display local video output and menu.

6

HDMI

HDMI video output connector.

7

eSATA (Optional)

Connects external SATA HDD, DVD-R/W.

8

LAN Interface

Connectors for LAN (Local Area Network).

9

Termination Switch

RS-485 termination switch.

Up position is not terminated.

Down position is terminated with 120 resistance.

10

RS-485 Interface

Connector for RS-485 devices. T+ and T- pins connects to R+ and R-

pins of PTZ receiver respectively.

Controller Port

D+, D- pin connects to Ta, Tb pin of controller. For cascading devices,

the first NVR s D+, D- pin should be connected with the D+, D- pin of

the next NVR.

ALARM IN

Connector for alarm input.

ALARM OUT

Connector for alarm output.

11

GROUND

Ground(needs to be connected when NVR starts up).

12

AC 100V ~ 240V

AC 100V ~ 240V power supply.

13

POWER

Switch for turning on/off the device.

14

USB interface

Universal Serial Bus (USB) ports for additional devices such as USB

mouse and USB Hard Disk Drive (HDD).
