No.

Name

Function Description

camera.










8










Control

Buttons






DIRECTION

The DIRECTION buttons are used to navigate between different

fields and items in menus.

In the Playback mode, the Up and Down button is used to speed

up and slow down recorded video. The Left and Right button

will select the next and previous record files.

In Live View mode, these buttons can be used to cycle through

channels.

In PTZ control mode, it can control the movement of the PTZ

camera.




ENTER

The ENTER button is used to confirm selection in any of the

menu modes.

It can also be used to tick checkbox fields.

In Playback mode, it can be used to play or pause the video.

In single-frame Playback mode, pressing the button will advance

the video by a single frame.

In Auto-switch mode, it can be used to stop /start auto switch.






9






JOG SHUTTLE Control

Move the active selection in a menu. It will move the selection

up and down.

In Live View mode, it can be used to cycle through different

channels.

In the Playback mode: For NVR-6064 series, the ring is used to

jump 30s forward/backward in video files.

In PTZ control mode, it can control the movement of the PTZ

camera.

10

POWER ON/OFF

Power on/off switch.

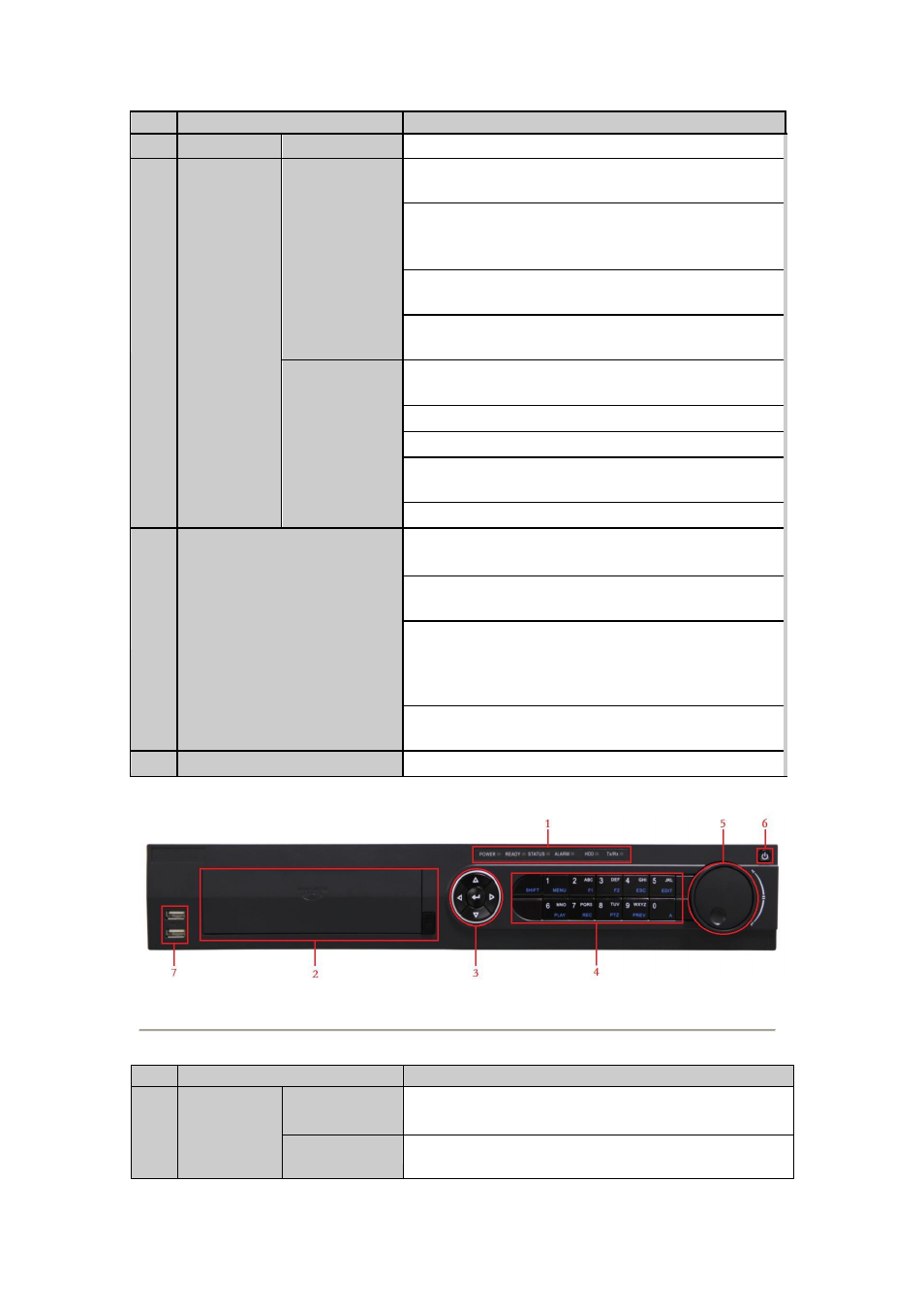

Figure 1. 2 NVR-5832P8

Table 1. 2 Description of Control Panel Buttons

No.

Name

Function Description


1

Status

Indicators

POWER

Turns green when NVR is powered up.

READY

The indicator is green when the device is running normally.
