1.1 Front Panel

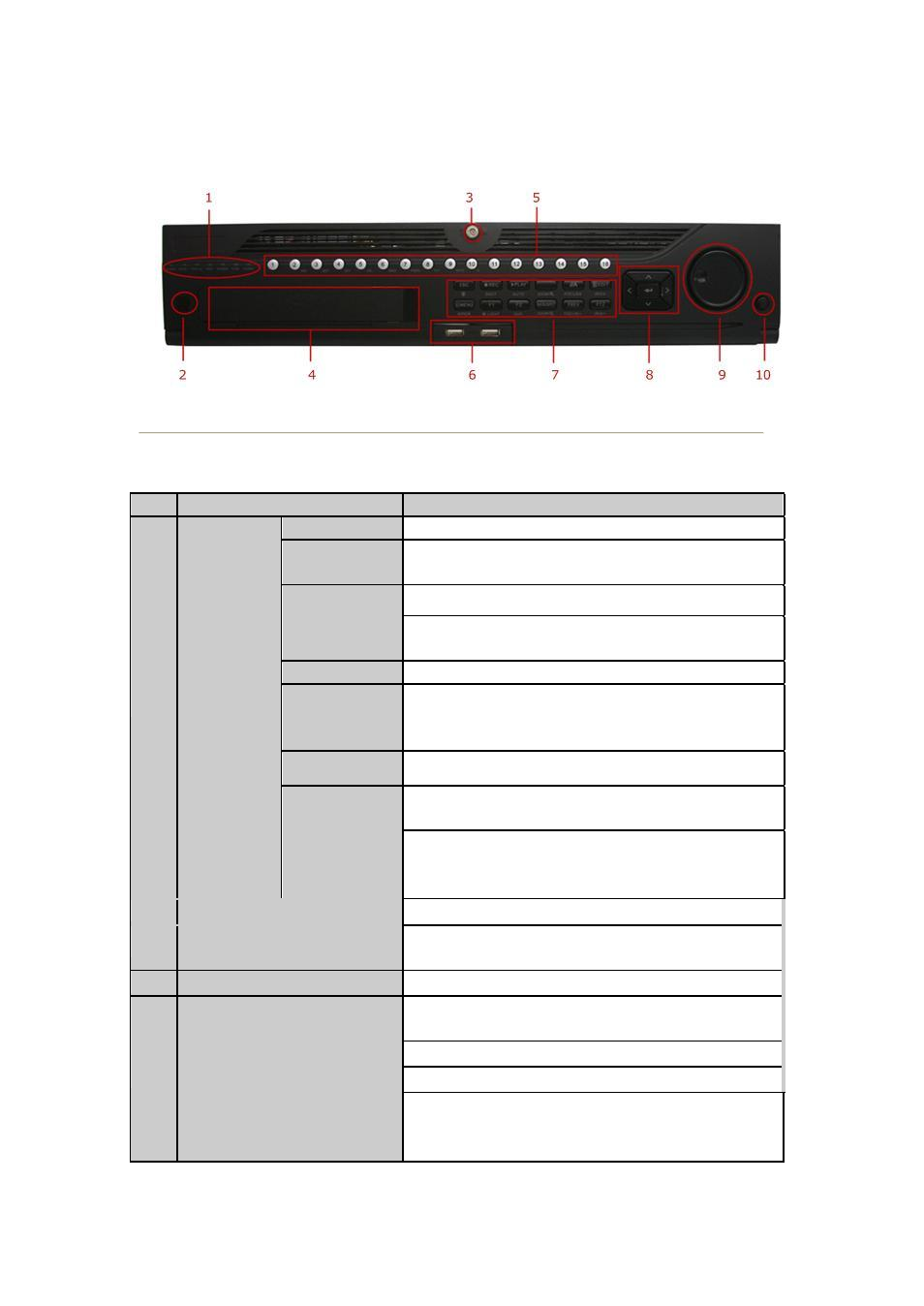

Figure 1. 1 NVR-6064

Table 1. 1 Description of Control Panel Buttons

No.

Name

Function Description











1










Status

Indicators

ALARM

Turns red when a sensor alarm is detected.

READY

Ready indicator is normally blue, indicating that the device is

functioning properly.


STATUS

Turns blue when device is controlled by an IR remote.

Turns red when controlled by a keyboard and purple when IR

remote and keyboard is used at the same time.

HDD

Blinks red when data is being read from or written to HDD.

MODEM

Reserved for future usage.

TX/RX

Blinks blue when network connection is functioning properly.


GUARD

Guard indicator turns blue when the device is in armed status; at

this time, an alarm is enabled when an event is detected.

The indicator turns off when the device is unarmed. The

arm/disarm status can be changed by pressing and holding on the

ESC button for more than 3 seconds in live view mode.

2

IR Receiver

Receiver for IR remote

3

Front Panel Lock

(for NVR-6064 series)

You can lock or unlock the panel by the key.

4

DVD-R/W

Slot for DVD-R/W.




5




Alphanumeric Buttons

Switch to the corresponding channel in Live view or PTZ

Control mode.

Input numbers and characters in Edit mode.

Switch between different channels in Playback mode.

The light of the button is blue when the corresponding channel is

recording; it is red when the channel is in network transmission

status; it is pink when the channel is recording and transmitting.
